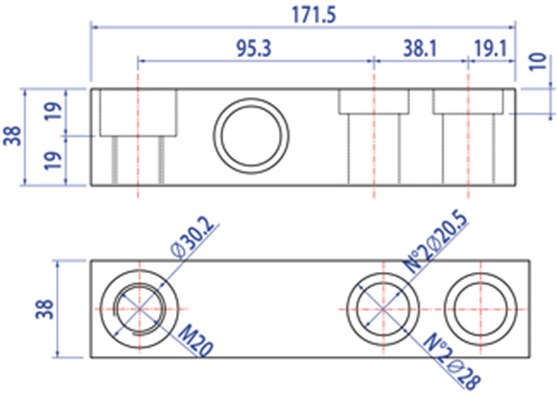

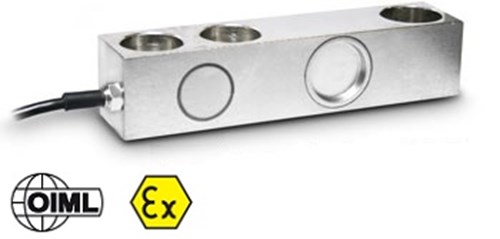

SBX-1KL Series Shear Beam Load Cells, from 3000kg to 4500kg

Minimum load cell verification interval Vmin:
EMax / 10.000

Maximum number of verification intervals:
nLC = 3000

Combined error:
0,017% of Full Scale Output (F.S.)

Full Scale Output:
2mV/V +/- 0.5%

Temperature effect on zero:
0,002%/°C

Temperature effect on full scale output:
0,002%/°C

Compensated Temperature Range:
-10°C/+50°C

Operating Temperature Range:
-20°C/+60°C

Creep error after 30 minutes:
0,02% F.S.

Maximum tolerated excitation voltage:
15 VDC

Input Resistance:
1100 ± 20 Ohm

Output Resistance:
1000 ± 20 Ohm

Insulation Resistance:
>5000 MOhm

Safe Overload:
120% F.S.

Ultimate Overload:
300% F.S.

Shielded cable:
6-wire shielded cable, 5m long, 5 mm diameter
