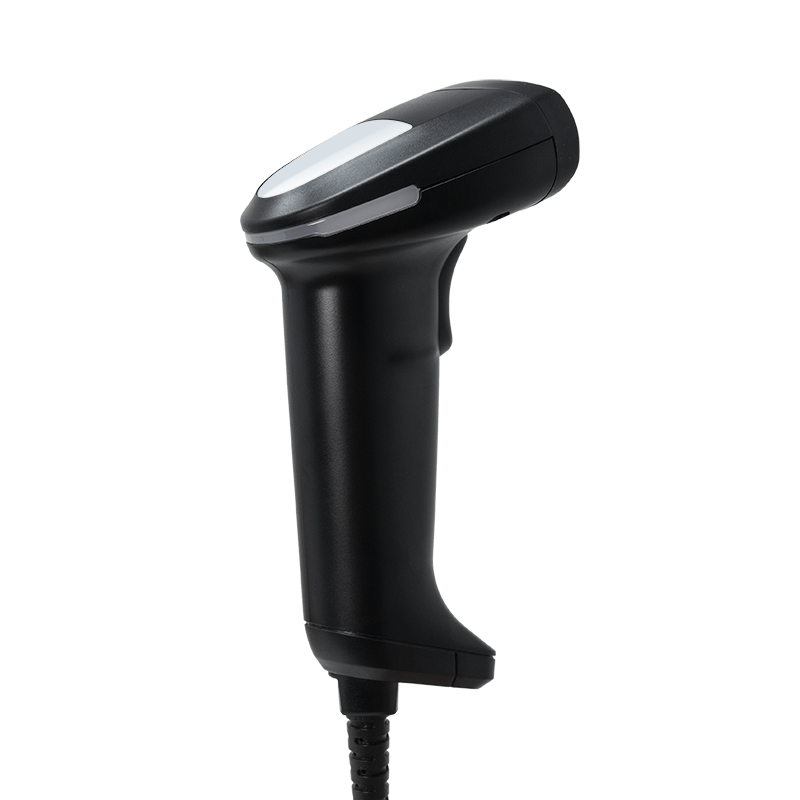

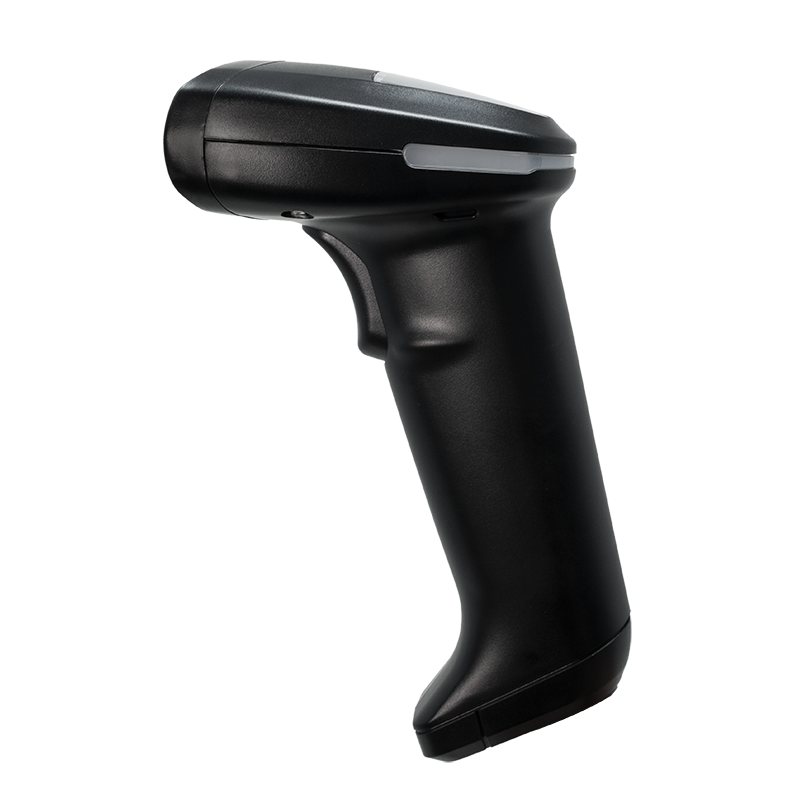

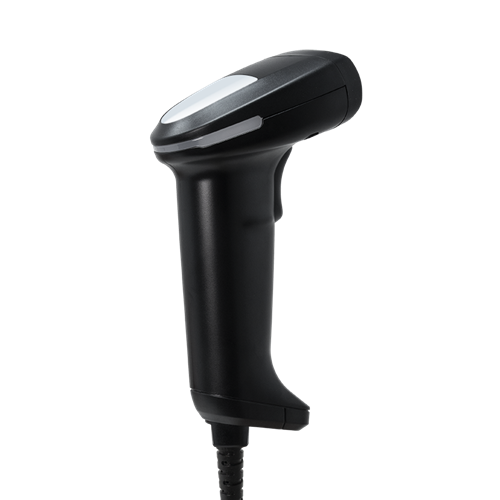

SC2D Series Barcode Scanner
- LED light for scanning zone identification
- Feedback with acoustic signal

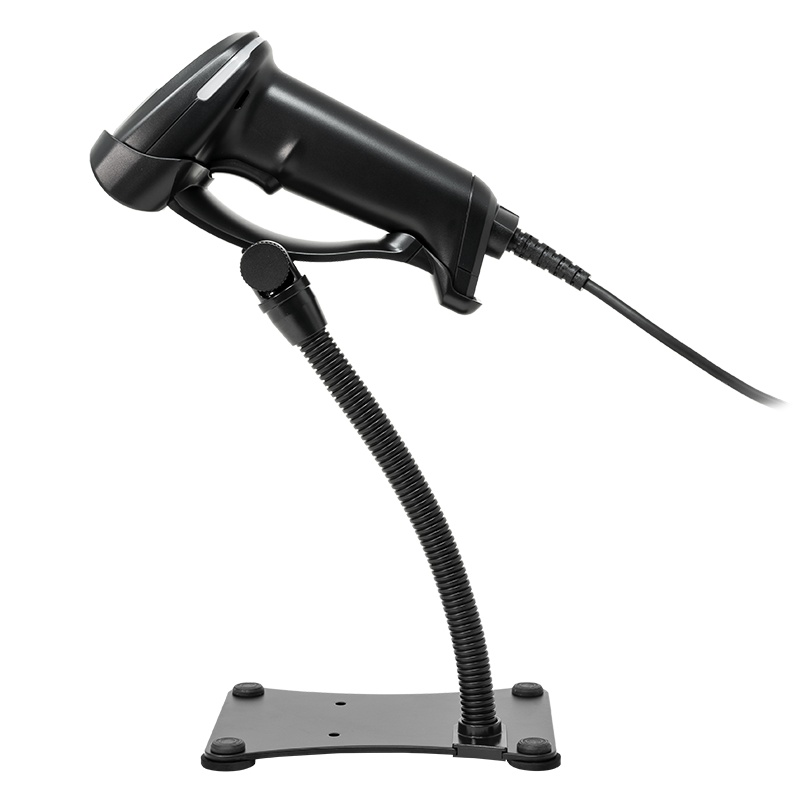

- Support base included for use in automatic mode
- OPTICS: CMOS area sensor
- DIMENSIONS in mm (lxwxh): 105 x 153 x 60 mm
- WEIGHT: 115 g
- POWER SUPPLY: 5 Vdc from weight indicator
- CABLE LENGHT: 160cm
- PROTECTION: IP42
- ENVIRONMENTAL TEMPERATURE: Temperature from 5 to 50°C, Humidity max. 90% non-condensing

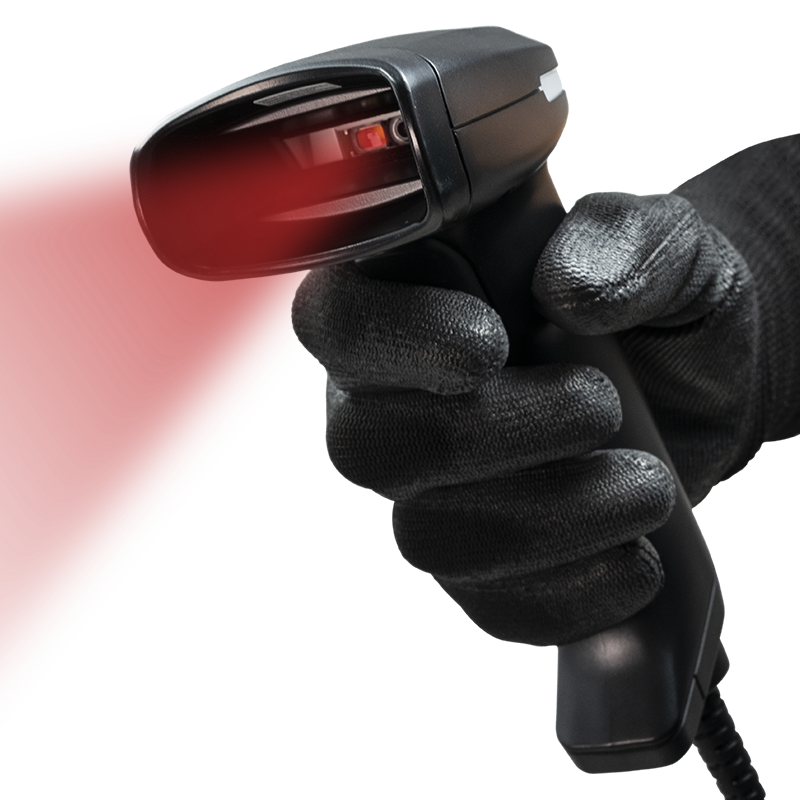

Gun type wired barcode scanner for use with 3590 TOUCH SCREEN series weight indicator. Manual operation via push button or automatic when installed on the base.
Supported barcodes
- Barcode (1D): UPC-A, UPC-E, UPC-E1, UPC-A Add-on , UPC-E Add-on, EAN-13, EAN-8, EAN-13 Add-on/EAN- 8 Add-on, JAN-8, JAN-13, Code 39, NW-7(Codabar), Industrial 2 of 5, Interleaved 2 of 5, Code 93, Code 128, GS1-128, MSI/Plessey, Code 11, OCR-B, GS1 DataBar, GS1 DataBar Limited ,GS1 DataBar Expanded, Composite GS1 DataBar, Composite GS1-128, Composite EAN, Composite UPC , TELEPEN
- Barcode (2D): PDF417, MicroPDF417, Codablock F, QR Code, Micro QR Code, DataMatrix (ECC 200), MaxiCode, Aztec Code, Chinese Sensible Code
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
SC2D | 1D/2D optical barcode reader with stand. Power cable and RS232 communication cable with weight indicator and stainless steel cable gland included. |
Consult |
Options
Main connactable indicators
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
| 3590EGT8 | 8-inch Touch Screen indicator with stainless steel IP68 case. Tilting version with stainless steel support for bench/wall installation. Internal Ethernet port as standard. Fitted with AF01 software as standard. |
Consult |
||
|
3590EGTT | Advanced Touch Screen indicator with 2 IN, 4 OUT, RS485, AF01 software. Tilting version with stainless steel support for bench/wall installation. Fitted with AF01 software as standard. |
Consult |
|
|
3590EGT | Colour Touch Screen indicator with AF01 software. Stainless steel IP68 case. |
Consult |
|
|
3590ET | Touch screen indicator with AF01 software. ABS enclosure. Colour Display. |
Consult |
