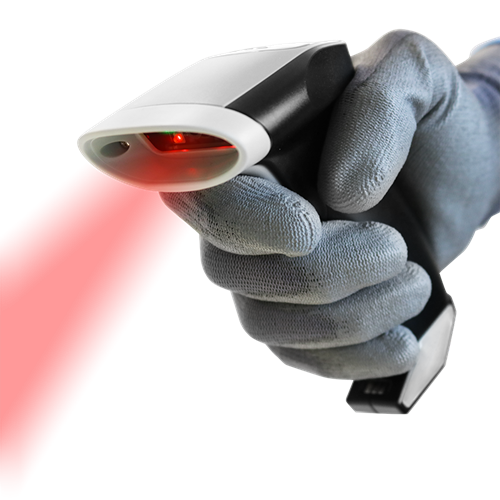

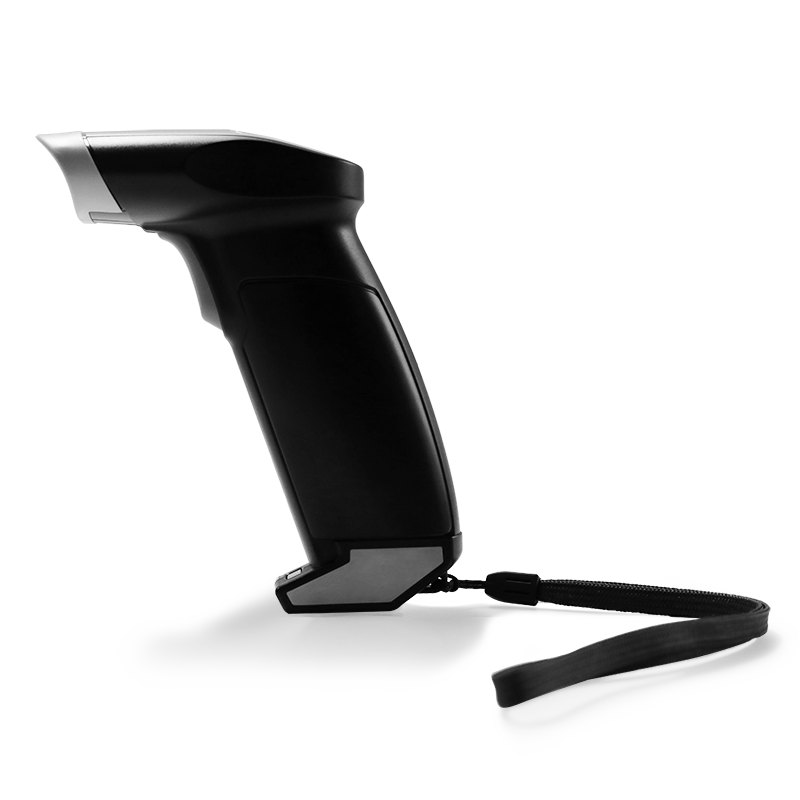

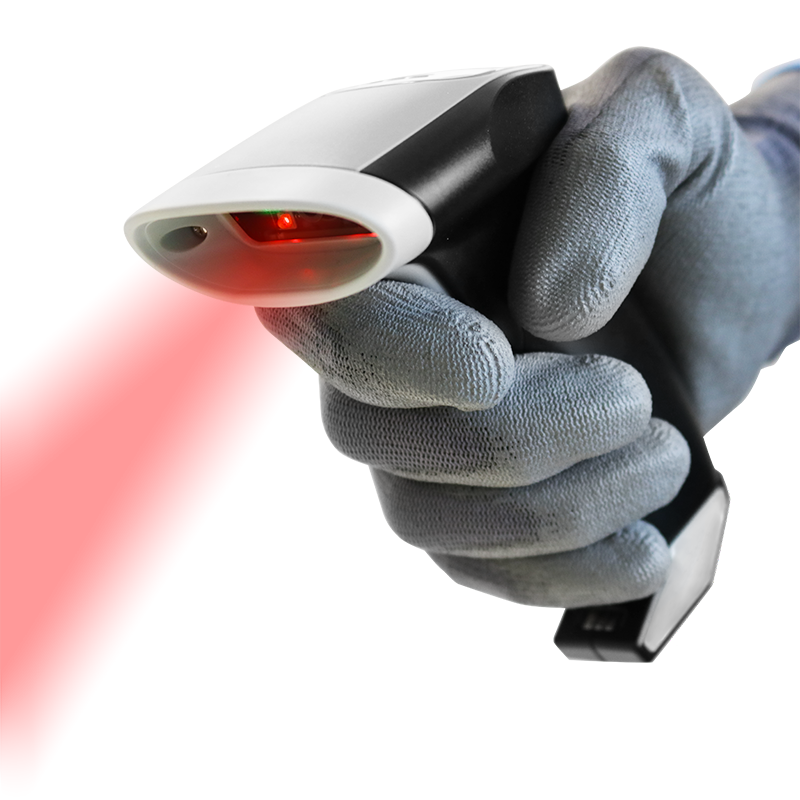

SCBTH Series Bluetooth Barcode Scanner

Operating life of approx. 24 hours (considering 1 scan every 5 seconds)
Feedback LED, vibration and acoustic signal to notify the user with regards to reader operations.
Communication range 10 m
Optics: CMOS area sensor
Reading speed: 60 scans/sec
Communication: Bluetooth Ver. 2.1, SPP/HID
Reading: 1D/2D

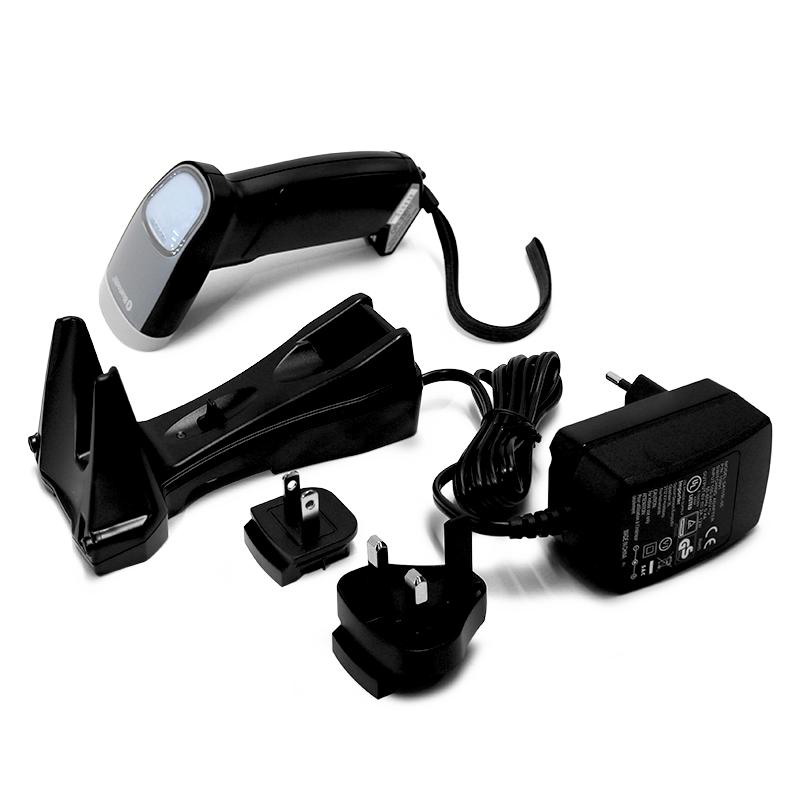

Recharging through support base, supplied as standard equipment
Weight: 132 g
Dimensions: 56 x 135 x 113 mm

BLUETOOTH barcode scanner gun for use with weight indicator 3590 TOUCH SCREEN series. Work distance of up to 10 m Support base for recharging supplied as standard equipment

Supported Barcodes

Type "1D" barcodes: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS ), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN -ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey Postal code: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET.
Type "2D" barcodes: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, Passport MRZ (OCR-B), PDF417, QR code.

NOTE: Scanner to be configured by the dealer.

Parts

Available Versions

	Part #	Description	List Price	Cart / Quote
	SCBTH	Bluetooth scanner for 1D / 2D barcodes. Includes recharge base. To be combined with 3590 TOUCH SCREEN weight indicator and Bluetooth BLTHxx module.	Consult	View

Options

Communication Interfaces

	Part #	Description	List Price	Cart / Quote
	BLTH-3	Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems.	Consult	View

Main connactable indicators

Part #	Description	List Price	Cart / Quote
3590EGT8	8-inch Touch Screen indicator with stainless steel IP68 case. Tilting version with stainless steel support for bench/wall installation. Internal Ethernet port as standard. Fitted with AF01 software as standard.	Consult	View
3590EGTT	Advanced Touch Screen indicator with 2 IN, 4 OUT, RS485, AF01 software. Tilting version with stainless steel support for bench/wall installation. Fitted with AF01 software as standard.	Consult	View
3590EGT	Colour Touch Screen indicator with AF01 software. Stainless steel IP68 case.	Consult	View
3590ET	Touch screen indicator with AF01 software. ABS enclosure. Colour Display.	Consult	View
