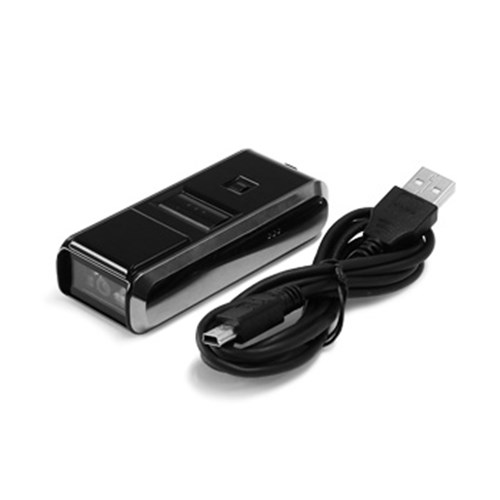

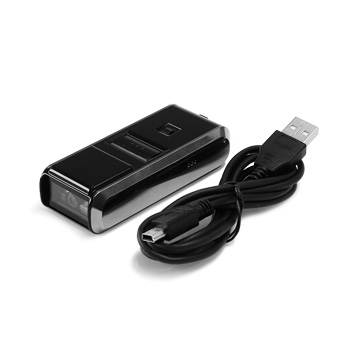

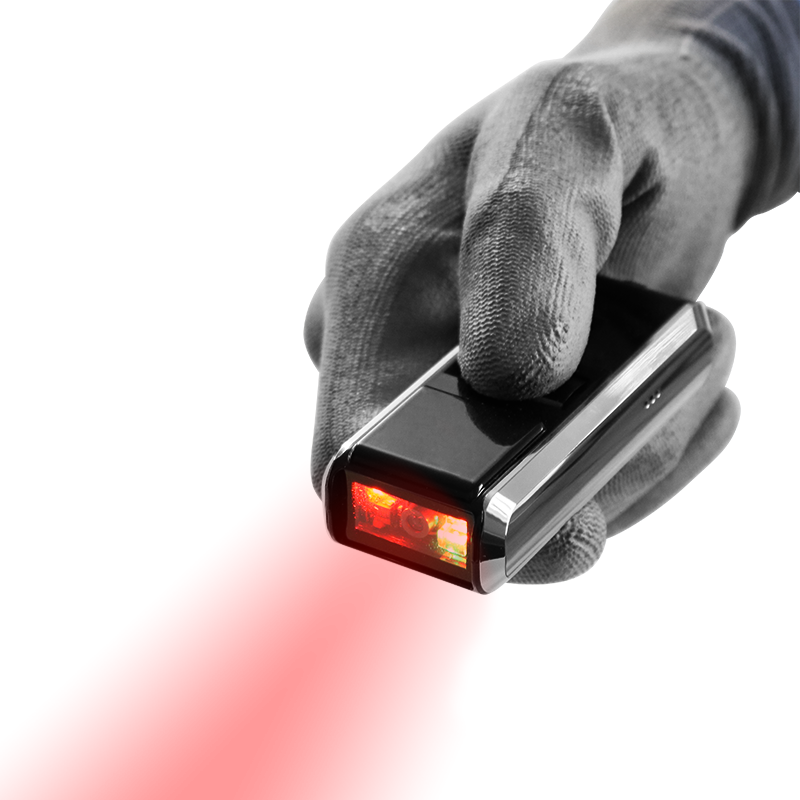

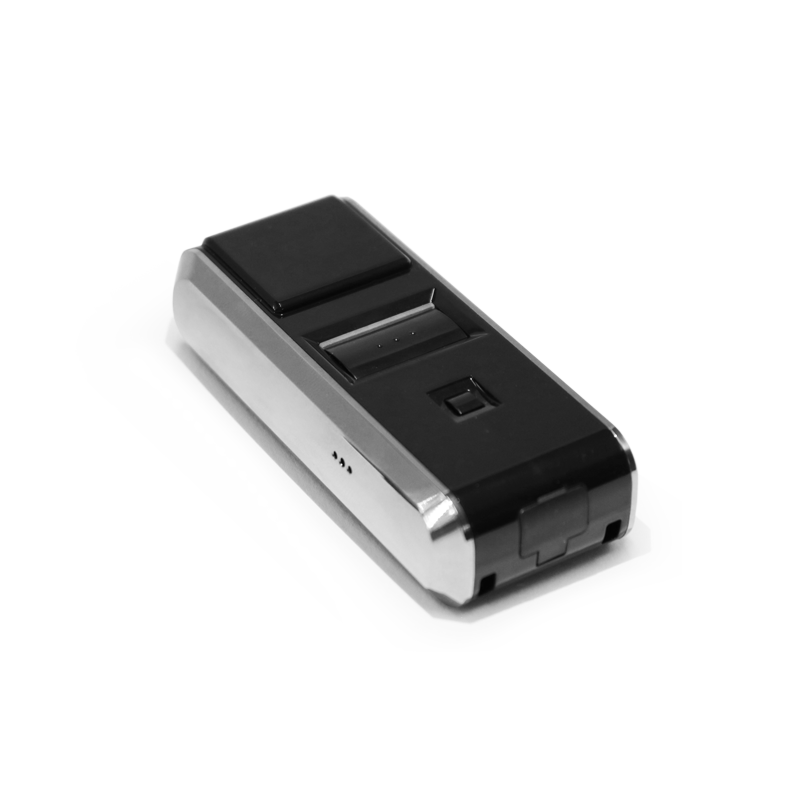

SCBTHP Pocket Bluetooth Barcode Scanner Series

Operating life of approx. 10 hours (considering 1 scan every 5 seconds).
Feedback LED, vibration and acoustic signal to notify the user with regards to reader operations.
Optics: CMOS area sensor
Reading speed: 60 scans/sec
Reading of barcodes both through USB cable and Bluetooth communication.
Reading: 1D/2D
Recharge through USB mini cable.
Weight: 57 g
Dimensions 36 x 83 x 21.5 mm

Scanner barcode BLUETOOTH tascabile, per lettura di codici a barre direttamente su indicatore di peso serie 3590 TOUCH SCREEN. Le dimensioni ultra-compatte semplificano l'acquisizione dei dati essenziali per la pesatura.

Supported Barcodes

Barcodes (1D): UPC-A, UPC-A Add-on, UPC-E, UPC-E Add-on, EAN -13, EAN -13 Addon, EAN -8, EAN -8 Add-on, JAN-8, JAN- 13, Code 39, Tri-Optic, Codabar (NW-7), Industrial 2 of 5, Interleaved 2 of 5, S-Code, IATA , Code 93, Code 128, MSI/Plessey, UK/Plessey, TELEPEN, Matrix 2of5, Code 11,GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Composite GS1-DataBar, Composite GS1-128, Composite EAN, Composite UPC Postal code: Chinese Post, Korean Postal Authority code.
Barcodes (2D): PDF417, MicroPDF417,Codablock F, QR Code , Micro QR Code, DataMatrix (ECC 0 - 140/ ECC 200), MaxiCode (Modes 2 to 5), Aztec Code, Chinese Sensible Code.

NOTE: Scanner to be configured by the dealer.

Parts

Available Versions

	Part #	Description	List Price	Cart / Quote
	SCBTHP	Pocket Bluetooth scanner for 1D / 2D barcodes. Equipped with USB cable for recharge. To be combined with 3590 TOUCH SCREEN weight indicator and Bluetooth BLTHxx module.	Consult	View

Options

Accessories

	Part #	Description	List Price	Cart / Quote
	BLTH-3	Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems.	Consult	View

Main connactable indicators

Part #	Description	List Price	Cart / Quote
3590EGT8	8-inch Touch Screen indicator with stainless steel IP68 case. Tilting version with stainless steel support for bench/wall installation. Internal Ethernet port as standard. Fitted with AF01 software as standard.	Consult	View
3590EGTT	Advanced Touch Screen indicator with 2 IN, 4 OUT, RS485, AF01 software. Tilting version with stainless steel support for bench/wall installation. Fitted with AF01 software as standard.	Consult	View
3590EGT	Colour Touch Screen indicator with AF01 software. Stainless steel IP68 case.	Consult	View
3590ET	Touch screen indicator with AF01 software. ABS enclosure. Colour Display.	Consult	View
