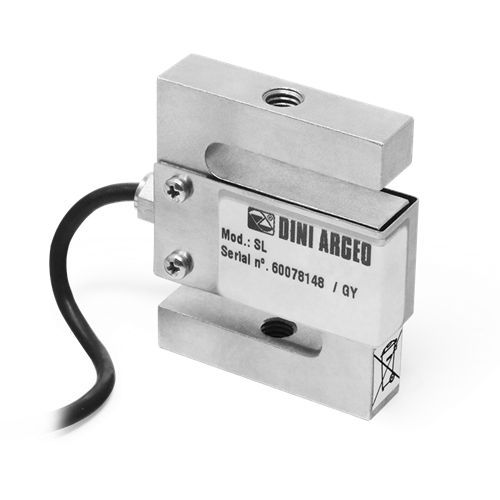

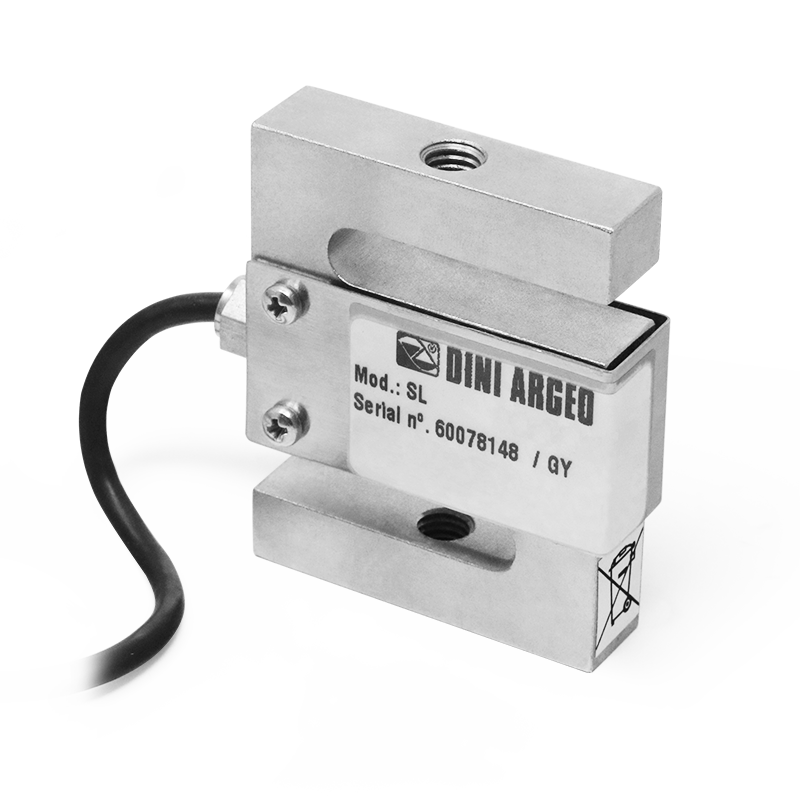

SL Series Tension Load Cells

  • Alloy steel construction
  • IP67 protection rating
  • Max. capacities from 15 to 1000 kg



Request More Information
SL 3

CAPACITIES (kg): 15, 30, 50, 100, 300, 500, 1000.

Alloy steel. IP67 protection.


Tension or compression load cells for weighing hoppers, tanks and with other weighing devices.

Non-Repeatability:
0,01% F.S.

Full Scale Output:
2mV/V +/- 10%

Temperature effect on zero:
0,02% /°C

Temperature effect on full scale output:
0,02% /°C

Compensated Temperature Range:
-10°C/+40°C



Operating Temperature Range:
-30°C/+85°C

Creep error after 4 hours:
0,03% F.S.

Maximum tolerated excitation voltage:
15 VDC

Input Resistance:
381 ± 10 Ohm

Output Resistance:
350 ± 3 Ohm

Zero balance:
+/- 2% F.S.

Insulation Resistance:
>5000 MOhm

Safe Overload:
150% F.S.

Ultimate Overload:
300% F.S.

Shielded cable:
4-wire shielded cable, 5m long, 5,5 mm diameter

Wiring Code
Colour
Function
RED
INPUT +
BLACK
INPUT -
GREEN
OUTPUT +
WHITE
OUTPUT -
  --
SHIELD

Code Max (kg) l
(mm)		 w
(mm)		 h
(mm)

a
(mm)

 b
(mm)		 Code
SL15 15 51 13 64 10,5 N°2 x M8 SL15
SL30 30 51 13 64 10,5 N°2 x M8 SL30
SL50 50 51 13 64 10,5 N°2 x M8 SL50
SL100 100 51 19 76 13,5 N°2 x M12 SL100
SL300 300 51 19 76 13,5 N°2 x M12 SL300
SL500 500 51 19 76 13,5 N°2 x M12 SL500
SL1000 1.000 54 25,4 76 13,5 N°2 x M12 SL1000
