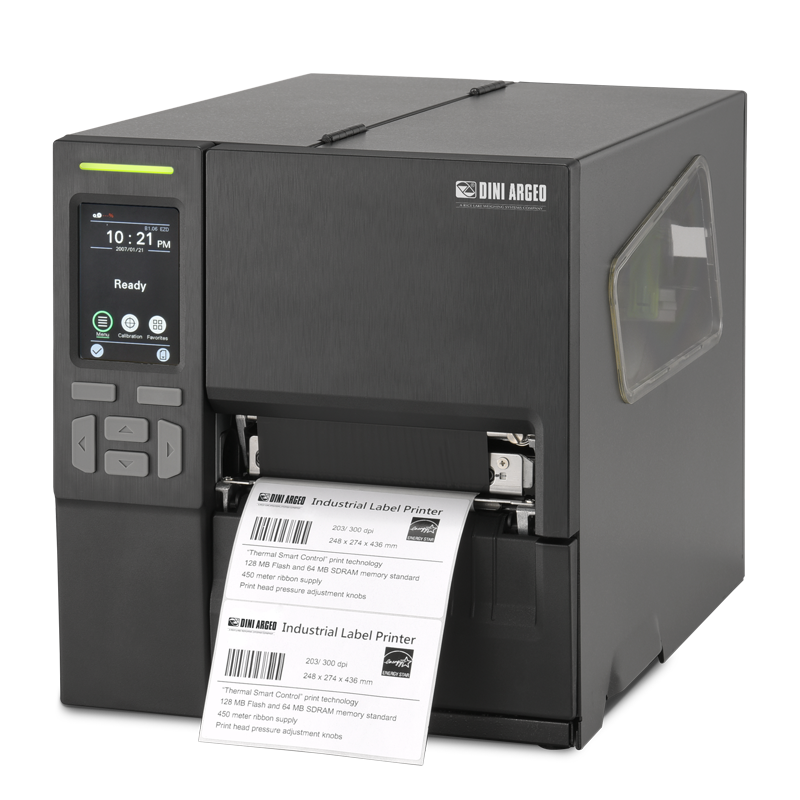

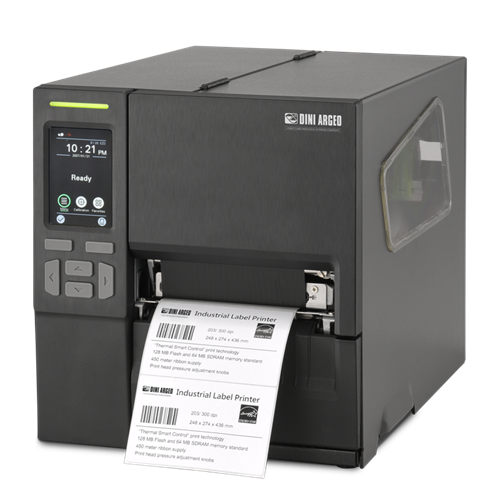

SMTPLUS: Direct and Thermal Transfer Labeler

• Printing Method: direct and thermal transfer
• Print Resolution: 8 dots/mm
• Printing Speed: up to 203 mm/s
• Print Mode: dispensing or strip form
• Maximum Print Width: 108 m
• Label Length: from 5 mm up to 25400 mm
• Label Width: from 25.4 mm up to 118 mm
• Roll Size: external diameter up to 203.2 mm
• Thermal Ribbon: internal diameter of 25.4 mm, length of 450 metres
• Fonts: 8, alphanumeric bitmaps, True Type Font
• User Display: 3.5" touchscreen colour HVGA LCD display
• Media Types: die cut labels, tags and continuous strips
• Available Bar Codes:
  - 1D BARCODE: Code 39, Code 93, Code128UCC, Code128 subset A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN e UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post
  - 2D BARCODE: PDF-714, Maxicode, DataMatrix, QR code, Aztec
• Flash Memory: 128 MB
• Interfaces: RS232C (from 1200 to 115200bps) or USB 2.0 client
• Standard Software Programming for the creation of customised labels with logos, images, weight data, and bar codes
• Size: 248 x 274 x 436 mm (wxhxl)
• Weight: 9.2 kg
• Power Supply: 115/230 Vac, 50/60 Hz
• Operating Temperature: from +5°C to +40°C
• Operating Humidity: from 25% to 85%, non condensing

WHAT'S NEW COMPARED TO SMTPLUSPRO:

• Small size and robust design:
  - 39% lighter.
  - 30% less bulky.
• Improved printhead:
  - Adjustable printhead pressure.
  - Reinforced printhead hook.
• 3.5" colour touch screen display.
• 32 times the storage capacity for logos and fonts (128 MB).

AVAILABLE ACCESSORIES

• Peel-off kit, with internal automatic rewind
