SPD Series Single Point Load Cells

  • OIML approved
  • Precision class C3
  • Compensate for off-centre loads
  • Aluminium alloy structure
  • IP66 protection rating
  • Max. capacity from 3 kg to 75 kg, up to 200 kg on demand
  • For weighing surfaces and weighing belts up to 350 x 350 mm in size
  • Shielded connection cable
Request More Information

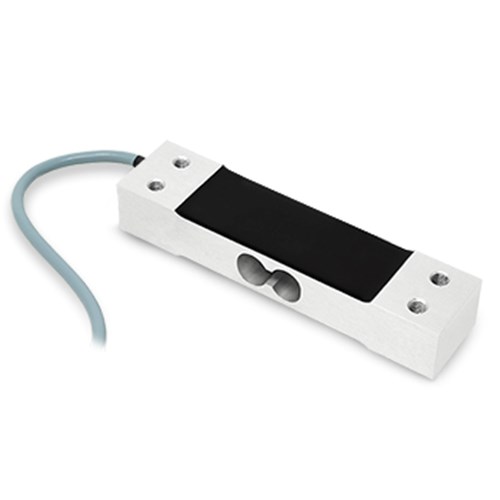

SPD New

Ideal for applications up to 100,000 divisions (in combination with Dini Argeo “X-CORE” electronics)

CAPACITY (kg): 3, 5, 10, 15, 20, 35, 75 (up to 200 kg on demand).

Aluminium alloy.

IP66 protection.

Dynamic off-centre load cells, suitable for fast and responsive weighing systems with load surface up to a maximum size of 350 x 350 mm.

Sensitivity:
2 ±0.2 mV/V

Zero balancing:
±0.1 mV/V

Maximum size of the weighing area:
350 x 350 mm

Thermal compensation: -10°C/+40°C

Working temperature range:
 -30°C/+70°C

Maximum tolerated power voltage:
 15 Vdc

Input resistance:
 406 ±15 Ohm

Output resistance:
350 ±3 Ohm

Insulation resistance:
 >2000 MOhm



Maximum static load:
150% F.S.

Breaking load:
 300% F.S.

Shielded cable:
4-pole shielded cable, length 3 m, diameter 3.8 mm with black PVC sheath.



Load Cell Connections
Color
Function
YELLOW
SCREEN
WHITE
SIGNAL +
BLUE
POWER +
RED
SIGNAL -
NERO
POWER -

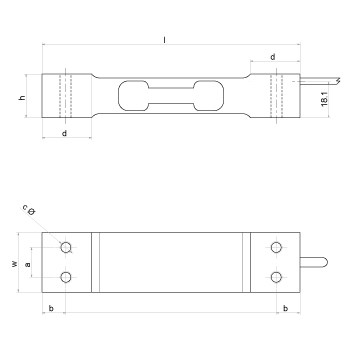

Code Max
(kg)		 Plate Max
(mm)		 l
(mm)		 w
(mm)		 h
(mm)		 a
(mm)		 b
(mm)		 c Ø
(mm)		 d
(mm)
SPD3 3 350x350  130  24  22  15  12  N°4 M6  25
SPD5 5 350x350  130  24  22  15  12  N°4 M6  25
SPD10 10 350x350  130  30  22  15  12  N°4 M6  25
SPD15 15 350x350  130  30  22  15  12  N°4 M6  25
SPD20 20 350x350  130  30  22  15  12  N°4 M6  25
SPD35 35 350x350  130  30  22  15  12  N°4 M6  25

SPD75

 75 350x350  130  30  22  15  12  N°4 M6  25
