Product PDF

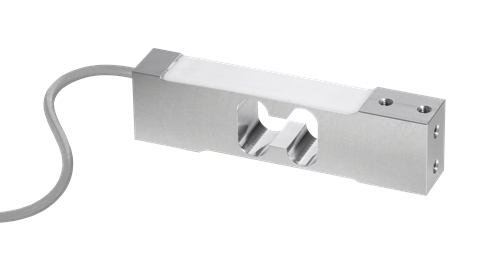

SPG Series Off-Center Load Cells, C6 Class

  • C6 precision class
  • Off center load compensated
  • Aluminium alloy construction
  • IP67 protection
  • Max. capacities from 7 to 36 kg
  • For platforms with dimensions up to 450 x 450 mm
  • Shielded connection cable
  • OIML certificate available upon request
  • Test certificate available upon request
Request More Information
SPG

CAPACITIES (kg): 7, 10, 18, 36.

OIML R60. C6 precision class.

Aluminium alloy. IP67 protection.

Load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell; maximum platform dimensions of 450x450 mm.

Minimum load cell verification interval:
Vmin = EMax / 14.000-25.000

Maximum number of verification intervals:
 nLC = 6000

Sensitivity:
 2mV/V ± 10%

Temperature effect on zero:
7kg: ±0,0084% F.S./10K
10kg: ±0,0070% F.S./10K
18kg: ±0,0070% F.S./10K
36kg: ±0,0070% F.S./10K

Temperature effect on Full Span:
range -10°C/+20°C: 0,0058% F.S./10K
range +20°C/+40°C: 0,0087% F.S./10K



Compensated Temperature Range:
-10°C/+40°C

Operating Temperature Range:
-10°C/+50°C

Maximum excitation voltage without damage:
15 Vdc

Input Resistance:
 300..500 Ohm

Output Resistance:
 300..500 Ohm

Zero Balance:
 0 ±0,1mV/V (at 100V)



Insulation Resistance:
 >2000 MOhm

Mechanical limit load in service:
 150% F.S.

Destructive load:
 300% F.S.

Deflection at nominal load:
 <0,5mm

Shielded cable:
6-wire shielded cable, 3m long, 4,7mm diameter

Wiring Code
Colour
Function
YELLOW
SHIELD
WHITE
OUTPUT +
GREEN
SENSE +
BLUE
INPUT +
RED
OUTPUT -
GREY
SENSE -
BLACK
INPUT -



The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:

ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.

The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

Code Max
(kg)		 Plate Max
(mm) 		 l
(mm)		 w
(mm)		 h
(mm)		 a
(mm)		 b
(mm)		 c Ø
(mm)		 d
(mm)		 e
(mm)		 f
(mm)
SPG7C6-1 7 300 x 300 150 25,4 40 19,1 19,1 N°8 x M6 34 16 6,1
SPG10C6-1 10 300 x 300 150 25,4 40 19,1 19,1 N°8 x M6  34 16 6,1
SPG18C6-1 18 400 x 400 150 25,4 40 19,1 19,1 N°8 x M6  34 16 6,1
SPG36C6-1 36 450 x 450 150 25,4 40 19,1 19,1 N°8 x M6  34 16 6,1

Resources / Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells Articles

Parts

Available Versions

Part # Description List Price Cart / Quote
SPG7C6-1 Single point approved load cell, C6, Max=7kg in aluminium alloy, IP67 protection degree, 300..500 Ohm output resistance.

Consult
SPG10C6-1 Single point approved load cell, C6, Max=10kg in aluminium alloy, IP67 protection degree, 300..500 Ohm output resistance.

Consult
SPG18C6-1 Single point approved load cell, C6, Max=18kg in aluminium alloy, IP67 protection degree, 300..500 Ohm output resistance.

Consult
SPG36C6-1 Single point approved load cell, C6, Max=36kg in aluminium alloy, IP67 protection degree, 300..500 Ohm output resistance.

Consult
SPG50C6-1 Single point approved load cell, C6, Max=50kg in aluminium alloy, IP67 protection degree, 300..500 Ohm output resistance.

Consult

Options

Options for ATEX version

Part # Description List Price Cart / Quote
LCCB Shielded cable 6x0.25 mmý (suitable for Ex zones). PVC inner sheath. Tinned copper braid shielding. PVC outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 6 x O.D. _/m

Consult
LCCBA Armoured cable 6x0.25 mmý (suitable for Ex zones). PVC inner sheath, diameter 5mm. Iron-zinc alloy armour. Transparent PVC outer sheath, 8 mm diameter. Temperature range: -15 / +70 øC. Minimum bending radius >/= 5 x O.D. _/m

Consult
EXCB6 Blue shielded cable 6x0.22 mmý, only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 7 x O.D. _/m

Consult
CCATEX-1 Optional ATEX version for single load cell. Marking: ATEX II 1G Ex ia IIC T6 (Ta -20ö+40øC) TX (Ta -20ö+65øC) Ga and ATEX II 1D Ex ta IIIC TXøC (Ta -20ö+40øC) TXøC (Ta -20ö+65øC) Da IP65. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).

Consult
CCATEX3GD ATEX certificate for each load cell. Marking: ATEX II 3G Ex nA IIC T6 Gc for gas and ATEX II 3D Ex tc IIIC T115øC Dc IP65 for dusts. Complete with manual and ATEX CE conformity declaration (available in EN, DE, FR and IT).

Consult
