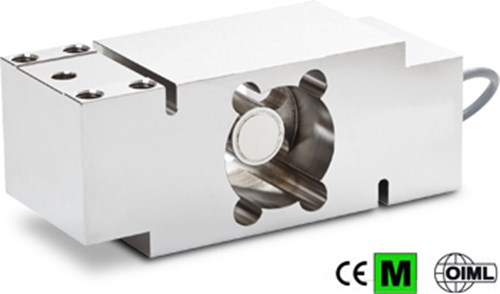

SPSZ Series Single Point Stainless Steel Load Cells

  • C3 precision class
  • Off center load compensated
  • Made in 17-4 ph stainless steel
  • IP68 protection
  • Max. capacities from 500 to 1000 kg
  • For platforms with dimensions up to 800 x 800 mm
  • Shielded connection cable
  • Test certificate available upon request



Request More Information
SPSZ

CAPACITIES (kg): 500, 1000.

OIML R60. C3 precision class.

17-4 PH stainless steel. IP68 / IP69K protection.

Stainless steel load cells for off-center loads, suitable for example to build CE-M approved scales with a single load cell with maximum dimensions of 800x800 mm.

Minimum load cell verification interval:
EMax / 7.500-12.500

Maximum number of verification intervals:
nLC = 3000

Full Scale Output:
2mV/V ±10%

Temperature effect on full scale output:
0,011% F.S./10K (-10°C/+20°C) 0,017% F.S./10K (+20°C/+40°C)

Temperature effect on zero:
From ±0,0093% F.S./10K to ±0,0140% F.S./10K

Compensated temperature range:
-10°C/+40°C

Operating temperature range:
-10°C/+50°C

Creep at nominal load in 30 minutes:
± 0,01% F.S.

Maximum tolerated excitation voltage:
15 VDC

Input Resistance:
390 ± 15 Ohm

Output Resistance:
300...500 Ohm

Insulation Resistance:
(100V) >2000 MOhm

Safe Overload:
150% F.S.

Breaking load:
300% F.S.

Nominal displacement:
< 0,5mm

Shielded cable:
6-wire, 3m long, 5mm diameter

Wiring Code
Colour
Function
WHITE
OUTPUT +
GREEN
SENSE +
BLUE
INPUT +
RED
OUTPUT -
BLACK
INPUT -
GREY
SENSE -



Code Max
(kg)

Plate Max
(mm)

l
(mm)

 w
(mm)		 h
(mm)		 a
(mm)		 b
(mm)		 c Ø
(mm)		 d
(mm)		 e
(mm)		 f
(mm)		 g
(mm)
SPSZ500 500 800 x 800 191 76 75 25 60 N°9 x M12 41 16 22 8
SPSZ1000  1,000 800 x 800 191 76 75 25 60 N°9 x M12 41 16 22 8

Resources / Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells Articles

Parts

Available versions

Part # Description List Price Cart / Quote
SPSZ500 Single point approved load cell, C3, Max=500kg in stainless steel, IP68 protection degree, 350 Ohm output resistance.

Consult
SPSZ1000 Single point approved load cell, C3, Max=1000kg in stainless steel, IP68 protection degree, 350 Ohm output resistance.

Consult
