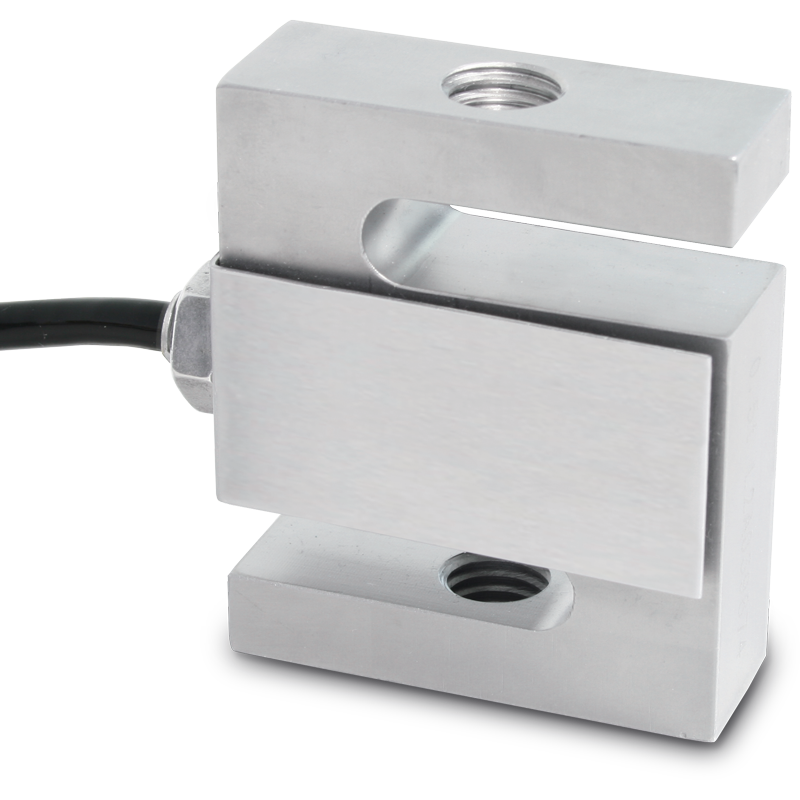

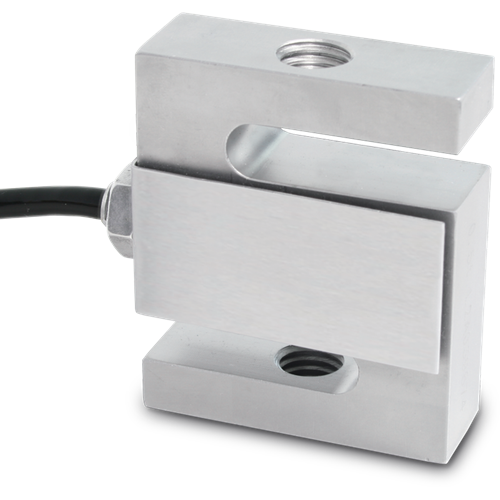

STG Series Tension Load Cells

C3 precision class
17-4 ph stainless steel construction
IP67 protection
Max. capacities from 100 to 1000 kg
Shielded connection cable
Test certificate available upon request

Request More Information

CAPACITIES (kg): 100, 500, 1000.

OIML R60. C3 precision class.

17-4 PH stainless steel. IP67 protection.

Tension or compression approved load cells for the weighing hoppers, tanks, scales with levers, and with other weighing devices.

STG Series Specifications

Minimum load cell verification interval:
Vmin = EMax / 10.000 (for STG500 and STG1000 model)
Vmin = EMax / 7.000 (for STG100 model)

Maximum number of verification intervals:
nLC = 3000

Combined error:
0,03% of Full Scale Output (F.S.)

Non-Repeatability:
0,01% F.S.

Full Scale Output:
3mV/V +/- 0,08%

Temperature effect on zero:
0,017% /°C

Temperature effect on full scale output:
0,014% /°C

Compensated Temperature Range:
-10°C/+40°C

Operating Temperature Range:
-35°C/+65°C

Creep error after 30 minutes:
0,02% F.S.

Maximum tolerated excitation voltage:
18 VDC

Input Resistance:
430 ± 60 Ohm

Output Resistance:
350 ± 3.5 Ohm

Zero balance:
+/-1% F.S.

Insulation Resistance:
>5000 MOhm

Safe Overload:
150% F.S.

Ultimate Overload:
300% F.S.

Shielded cable:
4-wire shielded cable, 6m long, 5 mm diameter

Wiring Code

Wiring Code
Colour	Function
RED	INPUT +
BLACK	INPUT -
GREEN	OUTPUT +
WHITE	OUTPUT -
METAL	SHIELD

ATEX Version

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:

ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.

The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

Available versions

Code	Max (kg)
STG100	100
STG500	500
STG1000	1000

Resources / Downloads

Articles

Title	View	Email	Category	Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses		Email	Pallet Truck Scales\|Pallet Scales\|Pallet Weighers\|Electric Pallet Truck Scales\|Ex Pallet Truck Scales\|Hygienic Pallet Truck Scales\|Pallet Weighing\|Weighing Forks\|Hydraulic Weighing\|Counting Scales\|Bench Scales\|Axle Weighing Scales\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Weighing Axle Platforms and Indicators\|High Resolution Load Cells\|Off Center Load Cells\|Bending Beam Load Cells\|Shear Beam Load Cells\|Double Shear Beam Load Cells\|Compression Load Cells\|Tension Load Cells\|Column Load Cells\|Assembly Kit Load Cells\|Ex Load Cells\|Hygienic Load Cells	Articles

Parts

Available Versions

Part #	Description	List Price	Cart / Quote
STG100	Tension approved load cell stainless steel, IP67 protection degree, 100 kg capacity, C3 precision class, 350 Ohm output resistance.	Consult	View
STG500	Tension approved load cell stainless steel, IP67 protection degree, 500 kg capacity, C3 precision class, 350 Ohm output resistance.	Consult	View
STG1000	Tension approved load cell stainless steel, IP67 protection degree, 1000 kg capacity, C3 precision class, 350 Ohm output resistance.	Consult	View

Options

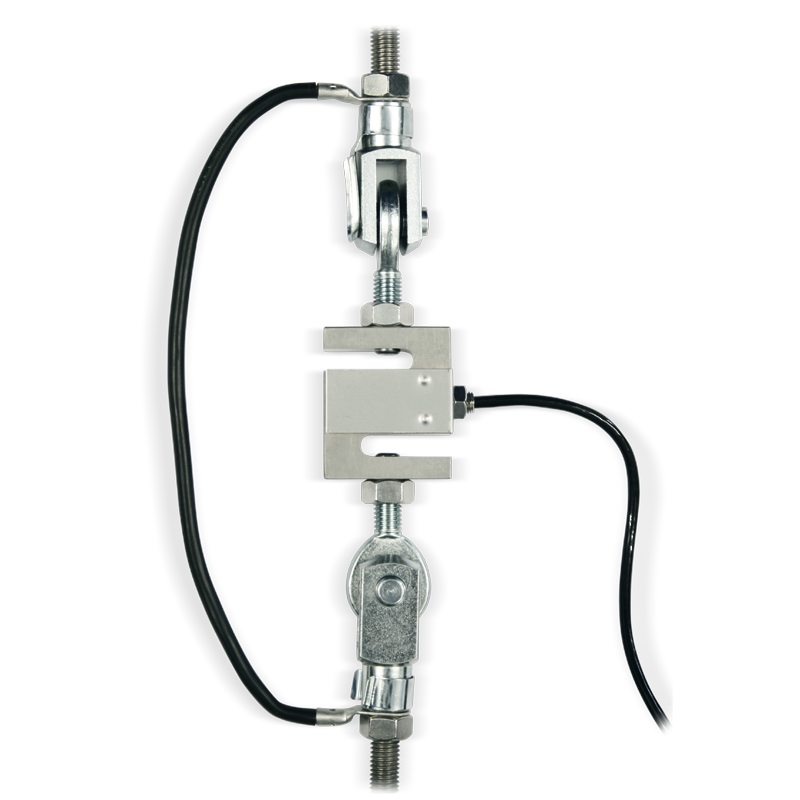

Assembly kits

Part #	Description	List Price	Cart / Quote
RBJM8	M8 articulated rod-end ball joint. Maximum lifting capacity of 600kg. For STG100 and SL up to 50kg capacity.	Consult	View
RBJM12	M12 articulated rod-end ball joint. Maximum lifting capacity of 1000kg. For STG500, STG1000 and SL capacity from 100 to 1000kg.	Consult	View
CLVM8	M8 clevis fitted with pin, for combination with RBJM8. For STG100 and SL capacity up to 50kg.	Consult	View
CLVM12	M12 clevis fitted with pin, for combination with RBJM12. For STG500, STG1000 and SL capacity from 100 to 1000kg.	Consult	View

Options for ATEX version

Part #	Description	List Price	Cart / Quote
ZBA1S	Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Manual and ATEX UE CONFORMITY DECLARATIONS (available in EN, DE, FR, ES and IT).	Consult	View
KZBA-1	ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. It can connect up to 8 350 Ohm load cells. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135øC Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
JB4QAI	ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
JB4QA	ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
EXCB6	Blue shielded cable 6x0.22 mmý, only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 7 x O.D. _/m	Consult	View
KMB4-1	Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20øC = Ta = +40øC) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130øC Dc IP65 (-20øC = Ta = +40øC) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
CCATEX-1	Optional ATEX version for single load cell. Marking: ATEX II 1G Ex ia IIC T6 (Ta -20ö+40øC) TX (Ta -20ö+65øC) Ga and ATEX II 1D Ex ta IIIC TXøC (Ta -20ö+40øC) TXøC (Ta -20ö+65øC) Da IP65. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
CCATEX3GD	ATEX certificate for each load cell. Marking: ATEX II 3G Ex nA IIC T6 Gc for gas and ATEX II 3D Ex tc IIIC T115øC Dc IP65 for dusts. Complete with manual and ATEX CE conformity declaration (available in EN, DE, FR and IT).	Consult	View
DCATEXMECH	ATEX version for the PLATFORM / LOAD CELL MOUNTING KIT for zone 1/21 (for the load cells ATEX declaration see CCATEX code). Option to be offered only if the platform is ordered without the indicator, otherwise refer to the available certifications for the chosen weight indicator. Provided with safety instructions and ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
DCATEXMB4	ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125øC Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT).	Consult	View
