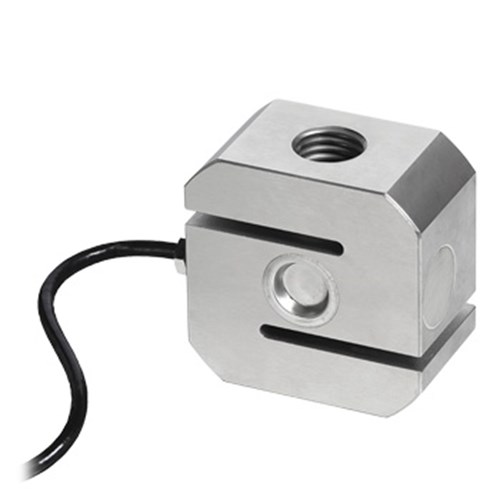

STU-1K: Tension Load Cells for the Suspended Loads Weighing

  • C3 precision class
  • Stainless steel construction
  • IP68 protection level
  • Max. capacities from 2000 to 10000 kg
  • 3m shielded connection cable
Request More Information
STU 1KD

CAPACITIES (kg): 2000, 5000, 8000, 10000.

OIML R60. C3 precision class.

Stainless steel. IP68 protection.


Tension/Compression load cells, suitable for weighing in tension suspended loads and as overload checking and limitation, or for compression use in the creation of weighing systems with various load cells.





nLC:
3000

Y:
 12000(compression, Y=Emax/Vmin)

Y:
9500(tension, Y=Emax/Vmin)

Cn:
 2,4 mV/V

Input:
 1000 +/- 20 Ohm



Output:
 1000 +/- 5 Ohm

Excitation:
 1…10Vdc

Safe Overload:
120%

Shielded cable:
6-wire shielded cable, 3 m long, 5mm diameter

Main Certifications

OIML R60

Australian legal for trade certificate of approval (NMI S840)

Wiring Code
Colour Function
  METAL SHIELD
YELLOW OUTPUT +
GREY SENSE +
BROWN INPUT +
WHITE OUTPUT -
PINK SENSE -
GREEN INPUT -

Code Max
(kg)

l
(mm)

 w
(mm)		 h
(mm)		 a
(mm)		 b
(mm)
STU2000-1KD 2.000 80 45 80 20,5 N°2 x M16
STU5000-1KD 5.000 80 45 80 20,5 N°2 x M24
STU8000-1KD 8.000 80 45 80 20,5 N°2 x M24
STU10000-1KD 10.000 80 52 80 20,5 N°2 x M24

Resources / Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells Articles
How to Choose the Best Load Cell for Your Needs Email All Load Cells Articles

Parts

Available Versions

Part # Description List Price Cart / Quote
STU2000-1KD Tension approved load cell stainless steel, IP68 protection degree, 2000 kg capacity, C3 precision class, 1000 Ohm output resistance.

Consult
STU5000-1KD Tension approved load cell stainless steel, IP68 protection degree, 5000 kg capacity, C3 precision class, 1000 Ohm output resistance.

Consult
STU8000-1KD Tension approved load cell stainless steel, IP68 protection degree, 8000 kg capacity, C3 precision class, 1000 Ohm output resistance.

Consult
STU10000-1KD Tension approved load cell stainless steel, IP68 protection degree, 10000 kg capacity, C3 precision class, 1000 Ohm output resistance.

Consult

Options

Connection cables

Part # Description List Price Cart / Quote
LCCBM Shielded 4x0,34 mmý cable for moving applications. _/m

Consult
LCCB Shielded cable 6x0.25 mmý (suitable for Ex zones). PVC inner sheath. Tinned copper braid shielding. PVC outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 6 x O.D. _/m

Consult
LCCBA Armoured cable 6x0.25 mmý (suitable for Ex zones). PVC inner sheath, diameter 5mm. Iron-zinc alloy armour. Transparent PVC outer sheath, 8 mm diameter. Temperature range: -15 / +70 øC. Minimum bending radius >/= 5 x O.D. _/m

Consult

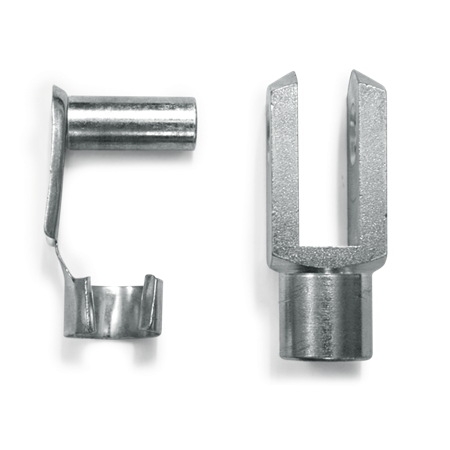

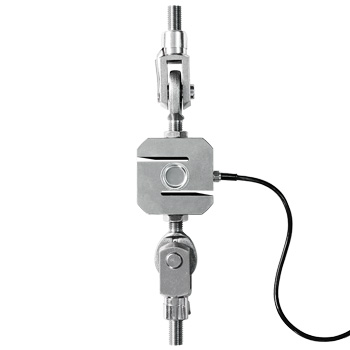

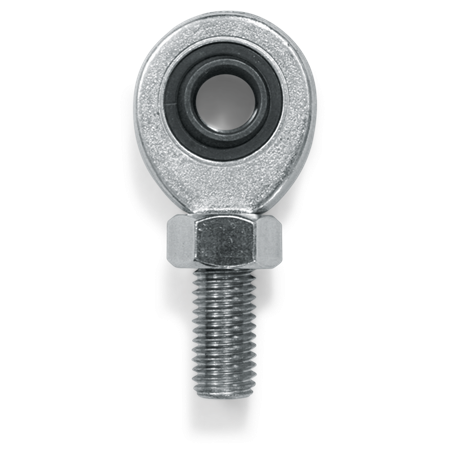

Ball joints and clevis
