Product PDF

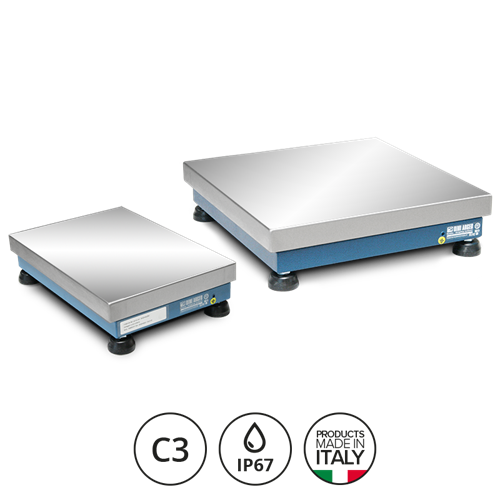

T Series Single Cell Platforms

Functions with an approved aluminium “single point” load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards (350 Ohm input resistance).
Steel tubular structure, oven-fire painted blue, with adjustable resting feet and level.
Fitted with AISI 304 satin finish stainless steel loading surface.
Up to 15 Vdc power supply.
Shielded 3m connection cable with connectors for connection to the indicator.

Request More Information

Painted Steel. Load cell in Aluminium. IP67 protection rating.

Precision class C3, C3MR.

Small and medium capacity electronic platforms with a AISI304 stainless steel Surface.

Up to 30000d resolution.
OIML R60 C3.
IP67 protection.

Specifications

Options for ATEX Version

CCATEX: ATEX certificate for each load cell.

DCATEX2GD: Declaration of ATEX conformity of whole PLATFORM + ATEX 2GD DINI ARGEO INDICATOR.

DCATEX3GD: Declaration of ATEX conformity of whole PLATFORM + ATEX 3GD DINI ARGEO INDICATOR.

Available Upon Price Estimate

Belt and roller units to be applied on the loading Surface.

Special sizes and capacities.

IP68/IP69K protection.

Available Versions

Code	l x w x h (mm)	Max (kg)	d (g)	M (g*)	M 2R (g)*	d HR (g)*
TS3	230x330x93	3	0,5	1	--
TS6	230x330x93	6	1	2	1-2	0,2
TS15	230x330x93	15	2	5	2-5	0,5
TT6	330x330x93	6	1	2	1-2	0,2
TT15	330x330x93	15	2	5	2-5	0,5
TT30	330x330x93	30	5	10	5-10	1
TQ15	400x400x115	15	2	5	2- 5	0,5
TQ30	400x400x115	30	5	10	5-10	1
TQ60	400x400x115	60	10	20	10-20	2
TQ150	400x400x115	150	20	50	20-50	5
TM30	400x500x120	30	5	10	5-10	1
TM60	400x500x120	60	10	20	10-20	2
TM150	400x500x120	150	20	50	20-50	5
TC30	500x500x110	30	5	10	5-10	1
TC60	500x500x110	60	10	20	10-20	2
TC150	500x500x110	150	20	50	20-50	5
TL60	500x600x132	60	10	20	10-20	2
TL150	500x600x132	150	20	50	20-50	5
TL300	500x600x132	300	50	100	50-100	10
TX60	600x600x137	60	10	20	10-20	2
TX150	600x600x137	150	20	50	20-50	5
TX300	600x600x137	300	50	100	50-100	10
TG150	700x700x145	150	20	50	--	5
TG300	700x700x145	300	50	100	50-100	10
TG600	700x700x145	600	100	200	100-200	20

(*) Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.

Parts

Available Versions

Part #	Description	List Price	Cart / Quote
TS3	Platform made of painted steel, IP67, Max=3kg, d=0,5g, 230x330mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TS6	Platform made of painted steel, IP67, Max=6kg, d=1g, 230x330mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TS15	Platform made of painted steel, IP67, Max=15kg, d=2g, 230x330mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TT6	Platform made of painted steel, IP67, Max=6kg, d=1g, 330x330mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TT15	Platform made of painted steel, IP67, Max=15kg, d=2g, 330x330mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TT30	Platform made of painted steel, IP67, Max=30kg, d=5g, 330x330mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TQ15	Platform made of painted steel, IP67, Max=15kg, d=2g, 400x400mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TQ30	Platform made of painted steel, IP67, Max=30kg, d=5g, 400x400mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TQ60	Platform made of painted steel, IP67, Max=60kg, d=10g, 400x400mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TQ150	Platform made of painted steel, IP67, Max=150kg, d=20g, 400x400mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TM30	Platform made of painted steel, IP67, Max=30kg, d=5g, 400x500mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TM60	Platform made of painted steel, IP67, Max=60kg, d=10g, 400x500mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TM150	Platform made of painted steel, IP67, Max=150kg, d=20g, 400x500mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TC30	Platform made of painted steel, IP67, Max=30kg, d=5g, 500x500mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TC60	Platform made of painted steel, IP67, Max=60kg, d=10g, 500x500mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TC150	Platform made of painted steel, IP67, Max=150kg, d=20g, 500x500mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TL60	Platform made of painted steel, IP67, Max=60kg, d=10g, 500x600mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TL150	Platform made of painted steel, IP67, Max=150kg, d=20g, 500x600mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TL300	Platform made of painted steel, IP67, Max=150kg, d=20g, 500x600mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TX60	Platform made of painted steel, IP67, Max=60kg, d=10g, 600x600mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TX150	Platform made of painted steel, IP67, Max=150kg, d=20g, 600x600mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TX300	Platform made of painted steel, IP67, Max=300kg, d=50g, 600x600mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TG150	Platform made of painted steel, IP67, Max=150kg, d=20g, 700x700mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TG300	Platform made of painted steel, IP67, Max=300kg, d=50g, 700x700mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View
TG600	Platform made of painted steel, IP67, Max=600kg, d=100g, 700x700mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services.	Consult	View

Options

Calibration service with weight indicator

	Part #	Description	List Price	Cart / Quote
	DINICAL	Connection to a Dini Argeo indicator and calibration. NET PRICE (*).	Consult	View
	DINICAL-DRC	Connection to a Dini Argeo indicator and calibration. NET PRICE.	Consult	View

Legal for trade approval , class III or IIII, with Dini Argeo indicator (only at time of order)

Part #	Description	List Price	Cart / Quote
ECEM	3000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options.	Consult	View
ECEM2	CE-M single platform legal for trade multi range approval.	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Consult	View

HR calibration (high resolution) with Dini Argeo indicator (only at time of order)

Part #	Description	List Price	Cart / Quote
THR	High Resolution (HR) model.	Consult	View

Part #	Description	List Price	Cart / Quote
JB1I	IP68 stainless steel single-channel junction box for 4-wire load cell cables.	Consult	View
JB1AI	Stainless steel IP66, ATEX, juntion box for up to 1 cell. 1 + 1 fairleads. Protection modes: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
LCCB	Shielded cable 6x0.25 mmý (suitable for Ex zones). PVC inner sheath. Tinned copper braid shielding. PVC outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 6 x O.D. _/m	Consult	View
LCCBA	Armoured cable 6x0.25 mmý (suitable for Ex zones). PVC inner sheath, diameter 5mm. Iron-zinc alloy armour. Transparent PVC outer sheath, 8 mm diameter. Temperature range: -15 / +70 øC. Minimum bending radius >/= 5 x O.D. _/m	Consult	View

Options for ATEX version (only at time of order)

Part #	Description	List Price	Cart / Quote
CCATEX-1	Optional ATEX version for single load cell. Marking: ATEX II 1G Ex ia IIC T6 (Ta -20ö+40øC) TX (Ta -20ö+65øC) Ga and ATEX II 1D Ex ta IIIC TXøC (Ta -20ö+40øC) TXøC (Ta -20ö+65øC) Da IP65. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
CCATEX3GD	ATEX certificate for each load cell. Marking: ATEX II 3G Ex nA IIC T6 Gc for gas and ATEX II 3D Ex tc IIIC T115øC Dc IP65 for dusts. Complete with manual and ATEX CE conformity declaration (available in EN, DE, FR and IT).	Consult	View
DCATEXMECH	ATEX version for the PLATFORM / LOAD CELL MOUNTING KIT for zone 1/21 (for the load cells ATEX declaration see CCATEX code). Option to be offered only if the platform is ordered without the indicator, otherwise refer to the available certifications for the chosen weight indicator. Provided with safety instructions and ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View

	Part #	Description	List Price	Cart / Quote
	TIP68	IP68 connection fitted with specific cable, fairleads and connectors.	Consult	View

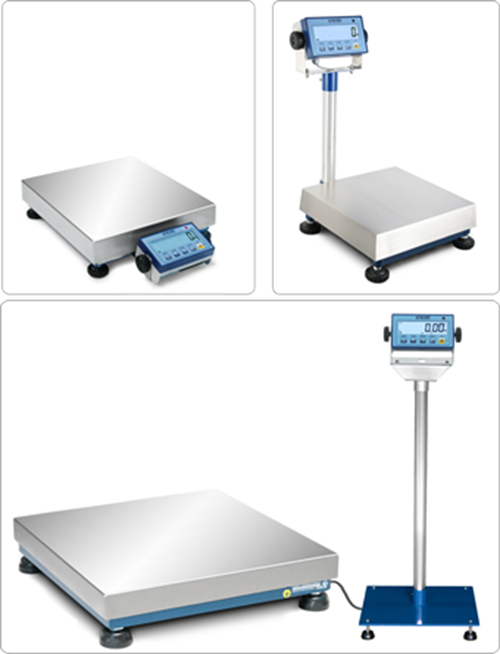

Columns, supports brackets, visors

Part #	Description	List Price	Cart / Quote
TCBI350-1	Stainless steel column h=350mm with stainless steel fixings. Fitted with bracket for DFW, DFWL, DFWLI, 3590E, 3590EGT, TRI, DGT20 and DGTPK series weight indicators. NOTE: on the TS and TT platforms it's possible to mount only DFWL, DFWLI, TRI, DGT20 and DGTPK.	Consult	View
TCBI500-1	Stainless steel column h=500mm with stainless steel fixings. Fitted with bracket for DFW, DFWL, DFWLI, 3590E, 3590EGT, TRI, DGT20, DGTPK series weight indicators (not compatible with TS and TT platforms).	Consult	View
TCBI700-1	Stainless steel column h=700mm with stainless steel fixings. Fitted with bracket for DFW, DFWL, DFWLI, 3590E, 3590EGT, TRI, DGT20, DGTPK series weight indicators (not compatible with TS and TT platforms).	Consult	View
CSP38I-1	AISI 304 stainless steel column 450x450mm, h=917mm, O 38mm. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
CSP38	Stainless steel column 450x450mm, h=917, O 38mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
CSP38D	Stainless steel column 350x350mm, h=750mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
PBSTF	Stainless steel fixing bracket for mounting the DFWL indicator.	Consult	View
PBISTF	Stainless steel fixing bracket for mounting the DFWLI indicator.	Consult	View

Charts for mobile weighing applications

Part #	Description	List Price	Cart / Quote
TB60R2	Painted steel cart, with low table top, for 400x400 or 400x500mm platform. Height of loading platform: 240mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms.	Consult	View
TB60EXR2	Cart for ATEX zones, painted steel, with low loading platform, for 400x400 or 400x500mm platform. Height of loading surface: 235mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms. Marking: ATEX II 2 G Ex h IIC T6 Gb (Ta -20øC ö +60øC) X for gas and ATEX II 2 D Ex h IIIC T85øC Db (Ta -20øC ö +60øC) X for dust.	Consult	View
TB60BR2	Painted steel cart, with low loading platform, for 500x500mm platform. Height of loading platform: 240mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms.	Consult	View
TB60BEXR2	Cart for ATEX zones, painted steel, with low tablet top, for 500x500mm platform. Height of loading surface: 240mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms. Marking: ATEX II 2 G Ex h IIC T6 Gb (Ta -20øC ö +60øC) X for gas and ATEX II 2 D Ex h IIIC T85øC Db (Ta -20øC ö +60øC) X for dust.	Consult	View
TB300R2	Painted steel cart, with low table top, for 500x600 or 600x600mm platforms. Height of loading platform: 260mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms.	Consult	View
TB300EXR2	Cart for ATEX zones, painted steel, with low table top, for 500x600 or 600x600mm platform. Height of loading surface: 260mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms. Marking: ATEX II 2 G Ex h IIC T6 Gb (Ta -20øC ö +60øC) X for gas and ATEX II 2 D Ex h IIIC T85øC Db (Ta -20øC ö +60øC) X for dust.	Consult	View
TA60R2	Cart for 400x400 or 400x500mm platform. Surface h=645mm. In painted steel. Only for T/TE, T C6 and TE C6 series platforms.	Consult	View
TA60EXR2	Cart for ATEX zones, painted steel, with high table top, for 400x400 mm or 400x500 mm platform. Height of loading surface: 640 mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms. Marking: ATEX II 2 G Ex h IIB T6 Gb (Ta -20øC ö +60øC) X for gas and ATEX II 2 D Ex h IIIC T85øC Db (Ta -20øC ö +60øC) X for dust.	Consult	View
TA300R2	Painted steel cart, with high table top, for 500x600 or 600x600mm platform. Height of loading platform: 650mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms.	Consult	View
TA300EXR2	Cart for ATEX zones, made of painted steel, with high table top, for 500x600 mm or 600x600 mm platform. Height of loading surface: 650 mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms. Marking: ATEX II 2 G Ex h IIB T6 Gb (Ta -20øC ö +60øC) X for gas and ATEX II 2 D Ex h IIIC T85øC Db (Ta -20øC ö +60øC) X for dust.	Consult	View
TKDC3	Painted steel cart for double platform systems (TS/TT model on the high supporting surface and TQ/TM/TL/TX model on the low supporting surface), fitted with shelf for printer / labeller.	Consult	View
TPBEI	Stainless steel plate AISI 304 for scale or labeller support for TA or TB carts. It can only be ordered in combination with TA and TB series carts.	Consult	View

	Part #	Description	List Price	Cart / Quote
	SGAQR2	Painted steel frame for 400x400mm platform. Loading surface h=605mm.	Consult	View
	SGAXR2	Painted steel frame for 600x600mm platform. Loading surface h=600mm.	Consult	View

	Part #	Description	List Price	Cart / Quote
	RF50X65	500x650mm unit with galvanised idle rollers O=32mm pitch 75mm. Mounted on a painted frame. For TL, TC and TX platforms.	Consult	View

Calibration service with Dini Argeo indicator (only at time of order)

Part #	Description	List Price	Cart / Quote
CT3	ISO 17025 calibration certificate up to 5 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CT4	ISO 17025 calibration certificate from 6 to 60 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CT5	ISO 17025 calibration certificate from 61 to 300 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CT6	ISO 17025 calibration certificate from 301 to 1500 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View

Related Products

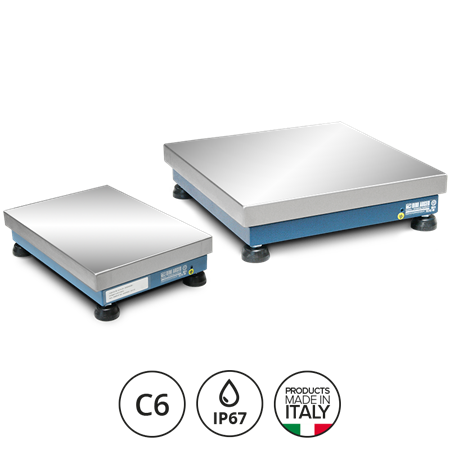

T C6 Series Single-Cell Platforms
