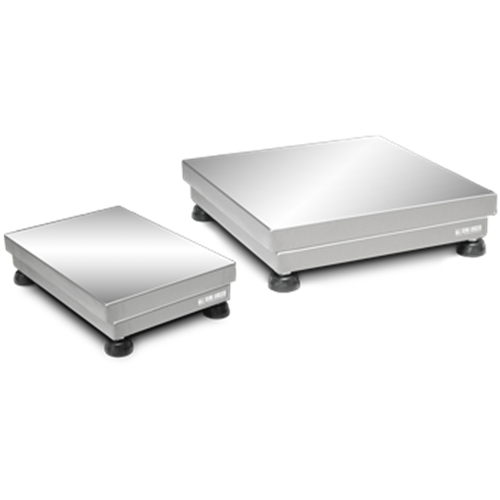

TE C6 Series Single-Cell Platforms
- Functions with a C6 6000e approved “single point” ALUMINIUM load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards.
- Structure with tubulars, mechanics, trinkets and loading surface in AISI304 satin finish stainless steel.
- Fitted with adjustable STAINLESS steel feet with plastic resting surface and level.
- Up to 15 Vdc power supply.
- Shielded 3m cable with connectors (IP65), for connection to the indicator.
AISI 304 Stainless Steel. Load cell in Aluminium. IP67 protection rating.
Precision class C3MI, C6, C6MR.
Small and medium capacity electronic platforms, having a precise and sturdy structure, are particularly suitable for all types of industrial and commercial applications in which it's necessary to work in environments with strict hygiene requirements. 6000e legal for trade version.
Specifications
|
Multi Interval Version "-MI" Compared to the more common multi-range type approval, the multi-interval type approval offers ADAPTIVE measurement resolution, which automatically varies by adjusting to the weight being measured. NOTE: Multi-interval models are distinguished by the final "-MI" abbreviation and must be paired with a DFW or 3590 series Dini Argeo indicator, DiniCal calibration service and ECEM2MI approval service. |
Options for ATEX Version DCATEXMECH: ATEX declaration for the platform (for the load cells ATEX declaration see CCATEX-1 code). Option to be offered only if the platform is ordered without the indicator, if so, refer to the chosen weight indicator available certifications. |
Available Upon Price Estimate Special sizes and capacities. Structure in AISI316 stainless steel. |
Available Versions
| Code | l x w x h (mm) | Max (kg) | d (g) | M (g*) | d HR (g)* |
|---|---|---|---|---|---|
| TSE3C6 | 230x330x93 | 3 | 0,5 | See table below | 0,1 |
| TSE3C6-MI | 230x330x93 | 3 | -- | 0,5/1 (Multi interval) | -- |
| TSE6C6 | 230x330x93 | 6 | 1 | See table below | 0,2 |
| TSE6C6-MI | 230x330x93 | 6 | -- | 1/2 (Multi interval) | -- |
| TSE12C6 | 230x330x93 | 12 | 2 | See table below | 0,5 |
| TSE12C6-MI | 230x330x93 | 12 | -- | 2/5 (Multi interval) | -- |
| TTE6C6 | 330x330x93 | 6 | 1 | See table below | 0,2 |
| TTE6C6-MI | 330x330x93 | 6 | -- | 1/2 (Multi interval) | -- |
| TTE12C6 | 330x330x93 | 12 | 2 | See table below | 0,5 |
| TTE12C6-MI | 330x330x93 | 12 | -- | 2/5 (Multi interval) | -- |
| TTE30C6 | 330x330x93 | 30 | 5 | See table below | 1 |
| TTE30C6-MI | 330x330x93 | 30 | -- | 5/10 (Multi interval) | -- |
| TQE12C6 | 400x400x115 | 12 | 2 | See table below | -- |
| TQE12C6-MI | 400x400x115 | 12 | -- | 2/5 (Multi interval) | -- |
| TQE30C6 | 400x400x115 | 30 | 5 | See table below | 1 |
| TQE30C6-MI | 400x400x115 | 30 | -- | 5/10 (Multi interval) | -- |
| TQE60C6 | 400x400x115 | 60 | 10 | See table below | 2 |
| TQE60C6-MI | 400x400x115 | 60 | -- | 10/20 (Multi interval) | -- |
(*) Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.
Multi-interval Versions
| C3 | C6 |
|||||
| ECEM2 MI 2x3000e |
ECEM-C6 6000e |
ECEM2-C6 6000+6000e |
||||
| Max (kg) | e (g) | Max (kg) | e (g) | Max (kg) | e (g) | |
| TSE 230x330x90mm |
3 | 0,5/1 | 3 | 0,5 | -- | -- |
| 6 | 1/2 | 6 | 1 | 3/6 | 0,5/1 | |
| 12 | 2/5 | -- | -- | -- | -- | |
| -- | -- | 12 | 2 | 6/12 | 1/2 | |
| TTE 330x330x90mm |
6 | 1/2 | 6 | 1 | 3/6 | 0,5 |
| 12 | 2/5 | -- | -- | -- | -- | |
| -- | -- | 12 | 2 | 6/12 | 1/2 | |
| 30 | 5/10 | 30 | 5 | 12/30 | 2/5 | |
| TQE 400x400x115mm |
12 | 2/5 | -- | -- | -- | -- |
| -- | -- | 12 | 2 | 6/12 | 1/2 | |
| 30 | 5/10 | 30 | 5 | 12/30 | 2/5 | |
| 60 | 10/20 | 60 | 10 | 30/60 | 5/10 | |
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| TE Platform Series: Ideal For Every Environment |  Email |
Platform Scales | Articles | |
| How to Choose a Bench Scale | Email |
Bench Scales | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
TSE3C6 | Platform made of AISI304 stainless steel, IP67, Max=3kg, d=0,5g, 230x330mm loading surface. 3m shielded cable. Aluminium load cell in C6 class. Optional calibration and approval services. |
Consult |
|
|
|
TSE3C6-MI | Platform made of AISI304 stainless steel, IP67, multi interval approved, Max=3kg, e=0,5/1g, 230x330mm loading surface. Aluminium load cell in C6 class. 3m shielded cable. NOTE: Always to be combined with DINICAL or DINICAL-DRC and ECEM2MI service. |
Consult |
|
|
|
TSE6C6 | Platform made of AISI304 stainless steel, IP67, Max=6kg, d=1g, 230x330mm loading surface. 3m shielded cable. Aluminium load cell in C6 class. Optional calibration and approval services. |
Consult |
|
|
|
TSE6C6-MI | Platform made of AISI304 stainless steel, IP67, multi interval approved, Max=6kg, e=1/2g, 230x330mm loading surface. Aluminium load cell in C6 class. 3m shielded cable. NOTE: Always to be combined with DINICAL or DINICAL-DRC and ECEM2MI service. |
Consult |
|
|
|
TSE12C6 | Platform made of AISI304 stainless steel, IP67, Max=12kg, d=2g, 230x330mm loading surface. 3m shielded cable. Aluminium load cell in C6 class. Optional calibration and approval services. |
Consult |
|
|
|
TSE12C6-MI | Platform made of AISI304 stainless steel, IP67, multi interval approved, Max=12kg, e=2/5g, 230x330mm loading surface. Aluminium load cell in C6 class. 3m shielded cable. NOTE: Always to be combined with DINICAL or DINICAL-DRC and ECEM2MI service. |
Consult |
|
|
TTE6C6 | Platform made of AISI304 stainless steel, IP67, Max=6kg, d=1g, 330x330mm loading surface. 3m shielded cable. Aluminium load cell in C6 class. Optional calibration and approval services. |
Consult |
|
|
|
TTE6C6-MI | Platform made of AISI304 stainless steel, IP67, multi interval approved, Max=6kg, e=1/2g, 330x330mm loading surface. Aluminium load cell in C6 class. 3m shielded cable. NOTE: Always to be combined with DINICAL or DINICAL-DRC and ECEM2MI service. |
Consult |
|
|
|
TTE12C6 | Platform made of AISI304 stainless steel, IP67, Max=12kg, d=2g, 330x330mm loading surface. 3m shielded cable. Aluminium load cell in C6 class. Optional calibration and approval services. |
Consult |
|
|
|
TTE12C6-MI | Platform made of AISI304 stainless steel, IP67, multi interval approved, Max=12kg, e=2/5g, 330x330mm loading surface. Aluminum load cell. 3m shielded cable. NOTE: Always to be combined with DINICAL or DINICAL-DRC and ECEM2MI service. |
Consult |
|
|
|
TTE30C6 | Platform made of AISI304 stainless steel, IP67, Max=30kg, d=5g, 330x330mm loading surface. 3m shielded cable. Aluminium load cell in C6 class. Optional calibration and approval services. |
Consult |
|
|
|
TTE30C6-MI | Platform made of AISI304 stainless steel, IP67, multi interval approved, Max=30kg, e=5/10g, 330x330mm loading surface. Aluminum load cell. 3m shielded cable. NOTE: Always to be combined with DINICAL or DINICAL-DRC and ECEM2MI service. |
Consult |
|
|
|
TQE12C6-MI | Platform made of AISI304 stainless steel, IP67, multi interval approved, Max=12kg, e=2/5g, 400x400mm loading surface. Aluminum load cell. 3m shielded cable. NOTE: Always to be combined with DINICAL or DINICAL-DRC and ECEM2MI service. |
Consult |
|
|
|
TQE30C6 | Platform made of AISI304 stainless steel, IP65, Max=30kg, d=5g, 400x400mm loading surface. 3m shielded cable. Aluminium load cell in C6 class. Optional calibration and approval services. |
Consult |
|
|
|
TQE30C6-MI | Platform made of AISI304 stainless steel, IP67, multi interval approved, Max=30kg, e=5/10g, 400x400mm loading surface. Aluminum load cell. 3m shielded cable. NOTE: Always to be combined with DINICAL or DINICAL-DRC and ECEM2MI service. |
Consult |
|
|
|
TQE60C6 | Platform made of AISI304 stainless steel, IP67, Max=60kg, d=10g, 400x400mm loading surface. 3m shielded cable. Aluminium load cell in C6 class. Optional calibration and approval services. |
Consult |
|
|
|
TQE60C6-MI | Platform made of AISI304 stainless steel, IP67, multi interval approved, Max=60kg, e=10/20g, 400x400mm loading surface. Aluminum load cell. 3m shielded cable. NOTE: Always to be combined with DINICAL or DINICAL-DRC and ECEM2MI service. |
Consult |
Options
Calibration service with weight indicator
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
DINICAL | Connection to a Dini Argeo indicator and calibration. NET PRICE (*). |
Consult |
|
|
|
DINICAL-DRC | Connection to a Dini Argeo indicator and calibration. NET PRICE. |
Consult |
Legal for trade approval , class III or IIII, with Dini Argeo indicator (only at time of order)
HR calibration (high resolution) with Dini Argeo indicator (only at time of order)
Connection cables
IP68 protection
Options for ATEX version (only at time of order)

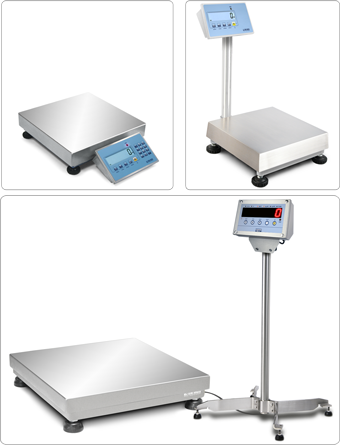

Columns, supports brackets, visors
Charts for mobile weighing applications
Raising Frame
Calibration service with Dini Argeo indicator (only at time of order)
Related Products
New TE HYGIENX® Series Single Cell Platforms
Made entirely of AISI 316 stainless steel in Italy, the platform is entirely washable to prevent the build-up of bacteria in the most critical spots.
TE 69K Series Single-Cell Platforms
The TE 69K series platform scales are known for their accuracy and robustness and are ideal for wet and corrosive environments.
TE C6 Series Single-Cell Platforms
Small and medium capacity electronic platforms, having a precise and sturdy structure, are particularly suitable for all types of industrial and commercial applications in which it's necessary to work in environments with strict hygiene requirements. 6000e legal for trade version.
TE Series Single-Cell Platforms
Small and medium capacity electronic platforms, having a precise and sturdy structure, are particularly suitable for all types of industrial and commercial applications in which it's necessary to work in environments with strict hygiene requirements.

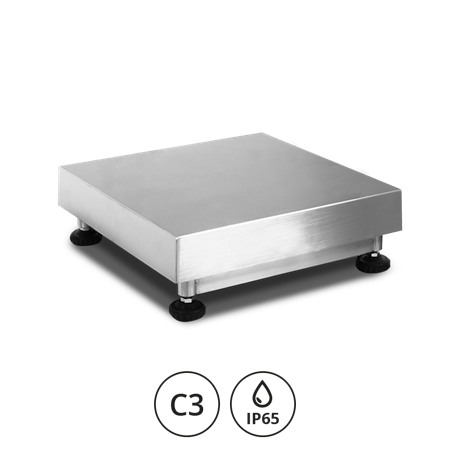

PBI Series Single-Cell Platforms
