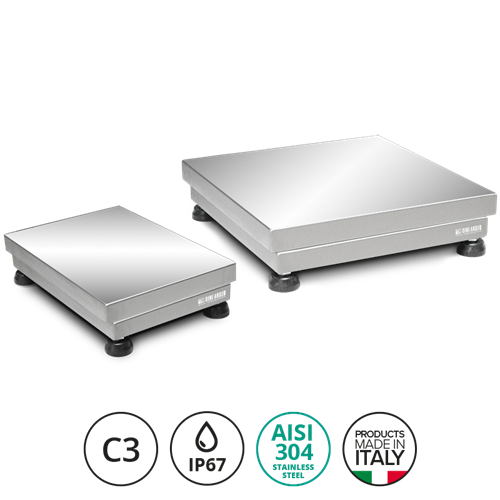

TE Series Single-Cell Platforms

Functions with an approved “single point” STAINLESS STEEL load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards.
Structure with tubulars, mechanics, trinkets and loading surface in AISI304 satin finish stainless steel.
Fitted with adjustable STAINLESS steel feet with plastic resting surface and level.
Up to 15 Vdc power supply.
Shielded 3m connection cable with connectors (IP65) for connection to the indicator.

AISI 304 Stainless Steel. Load cell in Stainless Steel. IP67 protection rating.

Precision class C3, C3MR.

Small and medium capacity electronic platforms, having a precise and sturdy structure, are particularly suitable for all types of industrial and commercial applications in which it's necessary to work in environments with strict hygiene requirements.

Specifications

Options for ATEX Version
CCATEX: ATEX certificate for each load cell.

DCATEXMECH: ATEX declaration for the PLATFORM (for the load cells ATEX declaration see CCATEX-1 code). Option to be offered only if the platform is ordered without the indicator, if so, refer to the chosen weight indicator available certifications.

Available Upon Price Estimate
Special sizes and capacities.

Structure in AISI316 stainless steel.

Fully-welded IP68/IP69K stainless steel load cell, specific for use in wet environments.

Available Versions

Code	l x w x h (mm)	Max (kg)	d (g)	M (g*)	M 2R (g)*	d HR (g)*
TSE3	230x330x90	3	0,5	1	0,5-1	0,2
TSE6	230x330x90	6	1	2	1-2	0,5
TSE15	230x330x90	15	2	5	2-5	1
TTE6	330x330x90	6	1	2	1-2	0,5
TTE15	330x330x90	15	2	5	2-5	1
TTE30	330x330x90	30	5	10	5-10	2
TQE15	400x400x115	15	2	5	2-5	1
TQE30	400x400x115	30	5	10	5-10	2
TQE60	400x400x115	60	10	20	10-20	5
TQE150	400x400x115	150	20	50	20-50	10
TME30	400x500x115	30	5	10	5-10	2
TME60	400x500x115	60	10	20	10-20	5
TME150	400x500x115	150	20	50	20-50	10
TCE60	500x500x115	60	10	20	10-20	5
TCE150	500x500x115	150	20	50	20-50	10
TLE60	500x600x137	60	10	20	10-20	5
TLE150	500x600x137	150	20	50	20-50	10
TLE300	500x600x137	300	50	100	50-100	20
TXE60	600x600x137	60	10	20	10-20	5
TXE150	600x600x137	150	20	50	20-50	10
TXE300	600x600x137	300	50	100	50-100	20
TGE150	700x700x165	150	20	50	--	10
TGE300	700x700x165	300	50	100	50-100	20
TGE600	700x700x165	600	100	200	100-200	50

(*) Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.

Resources / Downloads

Articles

Title	View	Email	Category	Type
TE Platform Series: Ideal For Every Environment		Email	Platform Scales	Articles
How to Choose a Bench Scale		Email	Bench Scales	Articles

Sales Literature

Title	Collateral Wizard	Request	Download	Email	Category
Single-Cell Weighing Platforms			Download	Email	Bench Scales

Parts

Available Versions

Part #	Description	List Price	Cart / Quote
TSE3	Platform made of AISI304 stainless steel, IP67, Max=3kg, d=0,5g, 230x330mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TSE6	Platform made of AISI304 stainless steel, IP67, Max=6kg, d=1g, 230x330mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TSE15	Platform made of AISI304 stainless steel, IP67, Max=15kg, d=2g, 230x330mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TTE6	Platform made of AISI304 stainless steel, IP67, Max=6kg, d=1g, 330x330mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TTE15	Platform made of AISI304 stainless steel, IP67, Max=15kg, d=2g, 330x330mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TTE30	Platform made of AISI304 stainless steel, IP67, Max=30kg, d=5g, 330x330mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TQE15	Platform made of AISI304 stainless steel, IP67, Max=15kg, d=2g, 400x400mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TQE30	Platform made of AISI304 stainless steel, IP67, Max=30kg, d=5g, 400x400mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TQE60	Platform made of AISI304 stainless steel, IP67, Max=60kg, d=10g, 400x400mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TQE150	Platform made of AISI304 stainless steel, IP67, Max=150kg, d=20g, 400x400mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TME30	Platform made of AISI304 stainless steel, IP67, Max=30kg, d=5g, 400x500mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TME60	Platform made of AISI304 stainless steel, IP67, Max=60kg, d=10g, 400x500mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TME150	Platform made of AISI304 stainless steel, IP67, Max=150kg, d=20g, 400x500mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TCE60	Platform made of AISI304 stainless steel, IP67, Max=60kg, d=10g, 500x500mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TCE150	Platform made of AISI304 stainless steel, IP67, Max=150kg, d=20g, 500x500mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TLE60	Platform made of AISI304 stainless steel, IP67, Max=60kg, d=10g, 500x600mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TLE150	Platform made of AISI304 stainless steel, IP67, Max=150kg, d=20g, 500x600mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TLE300	Platform made of AISI304 stainless steel, IP67, Max=300kg, d=50g, 500x600mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TXE60	Platform made of AISI304 stainless steel, IP67, Max=60kg, d=10g, 600x600mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TXE150	Platform made of AISI304 stainless steel, IP67, Max=150kg, d=20g, 600x600mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TXE300	Platform made of AISI304 stainless steel, IP67, Max=300kg, d=50g, 600x600mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TGE150	Platform made of AISI304 stainless steel, IP67, Max=150kg, d=20g, 700x700mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TGE300	Platform made of AISI304 stainless steel, IP67, Max=300kg, d=50g, 700x700mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View
TGE600	Platform made of AISI304 stainless steel, IP67, Max=600kg, d=100g, 700x700mm loading surface. 3m shielded cable. stainless steel load cell in class C3. Optional calibration and approval services.	Consult	View

Options

Calibration service with weight indicator

	Part #	Description	List Price	Cart / Quote
	DINICAL	Connection to a Dini Argeo indicator and calibration. NET PRICE (*).	Consult	View
	DINICAL-DRC	Connection to a Dini Argeo indicator and calibration. NET PRICE.	Consult	View

Legal for trade approval , class III or IIII, with Dini Argeo indicator (only at time of order)

Part #	Description	List Price	Cart / Quote
ECEM	3000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options.	Consult	View
ECEM2	CE-M single platform legal for trade multi range approval.	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Consult	View

HR calibration (high resolution) with Dini Argeo indicator (only at time of order)

Part #	Description	List Price	Cart / Quote
THR	High Resolution (HR) model.	Consult	View

Connection cables

Part #	Description	List Price	Cart / Quote
JB1I	IP68 stainless steel single-channel junction box for 4-wire load cell cables.	Consult	View
JB1AI	Stainless steel IP66, ATEX, juntion box for up to 1 cell. 1 + 1 fairleads. Protection modes: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
LCCB	Shielded cable 6x0.25 mmý (suitable for Ex zones). PVC inner sheath. Tinned copper braid shielding. PVC outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 6 x O.D. _/m	Consult	View
LCCBA	Armoured cable 6x0.25 mmý (suitable for Ex zones). PVC inner sheath, diameter 5mm. Iron-zinc alloy armour. Transparent PVC outer sheath, 8 mm diameter. Temperature range: -15 / +70 øC. Minimum bending radius >/= 5 x O.D. _/m	Consult	View

IP68 protection

	Part #	Description	List Price	Cart / Quote
	TIP68	IP68 connection fitted with specific cable, fairleads and connectors.	Consult	View

Options for ATEX version (only at time of order)

Part #	Description	List Price	Cart / Quote
CCATEX-1	Optional ATEX version for single load cell. Marking: ATEX II 1G Ex ia IIC T6 (Ta -20ö+40øC) TX (Ta -20ö+65øC) Ga and ATEX II 1D Ex ta IIIC TXøC (Ta -20ö+40øC) TXøC (Ta -20ö+65øC) Da IP65. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
CCATEX3GD	ATEX certificate for each load cell. Marking: ATEX II 3G Ex nA IIC T6 Gc for gas and ATEX II 3D Ex tc IIIC T115øC Dc IP65 for dusts. Complete with manual and ATEX CE conformity declaration (available in EN, DE, FR and IT).	Consult	View
DCATEXMECH	ATEX version for the PLATFORM / LOAD CELL MOUNTING KIT for zone 1/21 (for the load cells ATEX declaration see CCATEX code). Option to be offered only if the platform is ordered without the indicator, otherwise refer to the available certifications for the chosen weight indicator. Provided with safety instructions and ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View

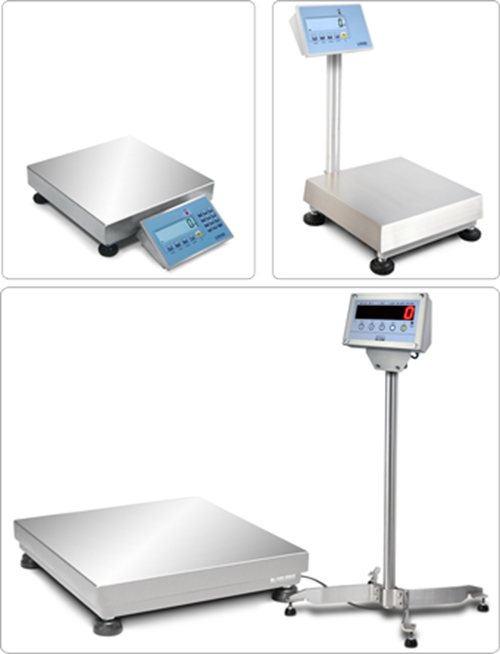

Columns, supports brackets, visors

Part #	Description	List Price	Cart / Quote
TCBI350-1	Stainless steel column h=350mm with stainless steel fixings. Fitted with bracket for DFW, DFWL, DFWLI, 3590E, 3590EGT, TRI, DGT20 and DGTPK series weight indicators. NOTE: on the TS and TT platforms it's possible to mount only DFWL, DFWLI, TRI, DGT20 and DGTPK.	Consult	View
TCBI500-1	Stainless steel column h=500mm with stainless steel fixings. Fitted with bracket for DFW, DFWL, DFWLI, 3590E, 3590EGT, TRI, DGT20, DGTPK series weight indicators (not compatible with TS and TT platforms).	Consult	View
TCBI700-1	Stainless steel column h=700mm with stainless steel fixings. Fitted with bracket for DFW, DFWL, DFWLI, 3590E, 3590EGT, TRI, DGT20, DGTPK series weight indicators (not compatible with TS and TT platforms).	Consult	View
CSP38I-1	AISI 304 stainless steel column 450x450mm, h=917mm, O 38mm. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
CSP38	Stainless steel column 450x450mm, h=917, O 38mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
CSP38D	Stainless steel column 350x350mm, h=750mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
PBSTF	Stainless steel fixing bracket for mounting the DFWL indicator.	Consult	View
PBISTF	Stainless steel fixing bracket for mounting the DFWLI indicator.	Consult	View

Charts for mobile weighing applications

Part #	Description	List Price	Cart / Quote
TB60I-1	AISI 304 stainless steel cart, with low table top, for 400x400 or 400x500mm platform. Height of the loading surface: 235mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms.	Consult	View
TB60IEX-1	Cart for ATEX zones, made of AISI 304 stainless steel, with low table top, for 400x400 or 400x500mm platform. Height of loading surface: 235mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms. Marking: ATEX II 2 G Ex h IIC T6 Gb (Ta -20øC ö +60øC) X for gas and ATEX II 2 D Ex h IIIC T85øC Db (Ta -20øC ö +60øC) X for dust.	Consult	View
TB60BI-1	AISI 304 stainless steel cart, with low table top, for 500x500mm platform. Height of the loading surface: 260mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms.	Consult	View
TB60BIEX-1	ATEX zone cart, AISI304 stainless steel, with low table top, for 500x500 mm platform. Height of the loading surface: 260 mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms. Marking: ATEX II 2 G Ex h IIC T6 Gb (Ta -20øC ö +60øC) X for gas and ATEX II 2 D Ex h IIIC T85øC Db (Ta -20øC ö +60øC) X for dust.	Consult	View
TB300I-1	AISI304 stainless steel trolley, with low table top, for 500x600 or 600x600mm platforms. Height of loading platform: 260mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms.	Consult	View
TB300IEX-1	Cart for ATEX zones, in AISI 304 stainless steel, with low loading platform, for 500x600 or 600x600mm platforms. Height of loading surface: 260mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms. Marking: ATEX II 2 G Ex h IIC T6 Gb (Ta -20øC ö +60øC) X for gas and ATEX II 2 D Ex h IIIC T85øC Db (Ta -20øC ö +60øC) X for dust.	Consult	View
TA60I-1	AISI 304 stainless steel trolley, with high table top, for 400x400 or 400x500mm platform. Height of loading surface: 670mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms.	Consult	View
TA60IEX-1	Cart for ATEX zones, in AISI 304 stainless steel, with high table top, for 400x400 or 400x500mm platform. Height of loading surface: 670mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms. Marking: ATEX II 2 G Ex h IIC T6 Gb (Ta -20øC ö +60øC) X for gas and ATEX II 2 D Ex h IIIC T85øC Db (Ta -20øC ö +60øC) X for dust.	Consult	View
TA300I-1	AISI 304 stainless steel cart, with high table top, for 500x600 or 600x600mm platform. Height of loading surface: 680mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms.	Consult	View
TA300IEX-1	Cart for ATEX zones, made of AISI 304 stainless steel, with high table top, for 500x600 or 600x600mm platform. Height of loading surface: 680mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms. Marking: ATEX II 2 G Ex h IIC T6 Gb (Ta -20øC ö +60øC) X for gas and ATEX II 2 D Ex h IIIC T85øC Db (Ta -20øC ö +60øC) X for dust.	Consult	View
TPBEI	Stainless steel plate AISI 304 for scale or labeller support for TA or TB carts. It can only be ordered in combination with TA and TB series carts.	Consult	View

Raising Frame

	Part #	Description	List Price	Cart / Quote
	SGAQI-1	Stainless steel AISI 304 frame for 400x400mm platform. Loading surface h=600mm.	Consult	View
	SGAXI-1	Stainless steel frame for 600x600mm platform. Loading surface h=600mm.	Consult	View

Roller unit

	Part #	Description	List Price	Cart / Quote
	RF50X65I	Stainless steel 500x650mm unit. PVC idle rollers O=40mm pitch 75mm. Mounted on stainless steel frame. For TLE, TCE and TXE platforms.	Consult	View

Calibration service with Dini Argeo indicator (only at time of order)

Part #	Description	List Price	Cart / Quote
CT3	ISO 17025 calibration certificate up to 5 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CT4	ISO 17025 calibration certificate from 6 to 60 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CT5	ISO 17025 calibration certificate from 61 to 300 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
