Product PDF

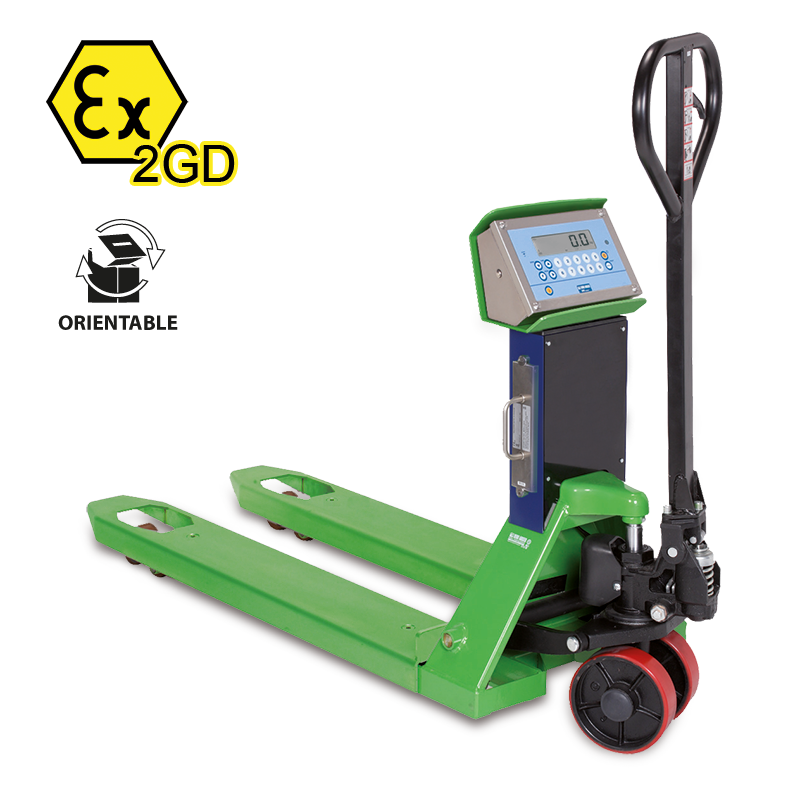

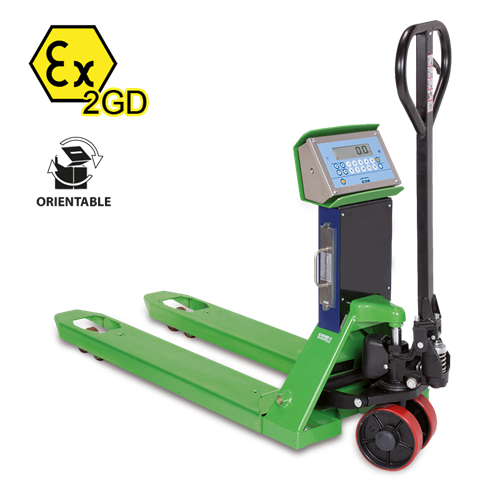

TPW EX 2GD ATEX Pallet Truck Scale Zones 1/21 & 2/22

ATEX pallet truck scale for use in hazardous areas (ZONES 1 & 21 & 2 & 22) with Ex II 2G IIB T4 Gb X and Ex II 2D IIIC T197°C Db X protection.
Also available in a version approved for legal-for-trade use. Manufactured, calibrated and adjusted in Italy by Dini Argeo, using certified sample weights.

WEIGHING FEATURES

  • Maximum lifting capacity: 2,000 kg.
  • Resolution:
    • internal use: 0,2 kg
    • approved: 0,5 / 1 kg
  • Accuracy (weighing of goods on Europallet with distributed load):
    • internal use: +/- 0,5 kg
    • approved: according to CE certification (Directive 2014/31/EU)
  • Calibration and Set-Up parameters configurable from keyboard.
Request More Information
TPW EX 2GD

WHY CHOOSE TPW EX 2GD DINI ARGEO

Technical Features

  • Forks with low profile, only 85 mm.
  • Forks dimensions 1150 x 550 x 85 mm.
  • Lifting height: 200 mm.
  • Weight approx. 125 kg.
  • Bearing structure in extra-thick steel, oven-fire painted.
  • Optional stainless steel forks.
  • Standard swivelling head +/-160°.
  • Steering wheels and double loading wheels with polyurethane coating.
  • Quick-lift hydraulic pump allowing controlled lowering of the forks.
  • Membrane waterproof keyboard, with 17 numeric/functional keys.
  • Dini Argeo electronics, ATEX certified, intrinsically safe.
  • 230Vac 50Hz battery charger with EU, US, UK, AU plugs as standard (charging time 18 hours) for charging in a safe area.
  • Temperature range: -10° / +40° C

Other Versions Available

  • Non-standard forks (both in length and width)
  • High resolution 0,1 kg
  • Approved load capacity 600 kg, resolution 0,2 kg
  • Approved load capacity 600 / 1.500 kg, resolution 0,2 / 0,5 kg
  • Approved load capacity 1.500 kg, resolution 0,5 kg
  • Approved load capacity 1.500 / 2.500 kg, resolution 0,5 / 1 kg
  • Load capacity 2.500 kg
  • Other capacities / special resolutions: upon request
  • Other special versions: upon request



The Easiest One to Recalibrate and Repair

  • The only one without junction box: the adjustment of each individual cell is done comfortably from the keyboard.
  • Spare and wear parts always available and ready for delivery.
  • Service centres throughout Europe and the world.

Main Functions:

  • Zeroing, Tare
  • High Resolution Weighing x 10
  • Net/Gross or lb/kg conversion
  • Weighs accumulation
  • Formulation
    Discover the other functions, download the manual.













Code Max (kg) d (kg) M (kg) d HR
(kg)
TPWX2GD20-2 2000 0,2 -- 0,1
TPWX2GD20M-1  1000 / 2000 -- 0,5 / 1

(*) The HR division is obtainable only with the relative EHR option

WARNING
For direct weighing of light metals such as aluminum, magnesium, titanium and their alloys, the use of optional STAINLESS STEEL fork covers is necessary.

Resources / Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells Articles
Increase Efficiency and Productivity with Dini Argeo Weighing Solutions Email Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|Pallet Truck Scales Articles
Inventory Weighing Solutions and Programmes Email Weight Indicators|Bench Scales|Pallet Truck Scales|Floor Scales Articles
SOLAS: Solutions for Weighing Containers Email Axle Weighing Scales|Weighing Axle Platforms and Indicators|In-Motion Axle Scales|Dynamic Axle Weighing|Crane Scales|Weighing Forks Articles

Parts

Available Versions

Part # Description List Price Cart / Quote
TPWX2GD20-2 ATEX pallet truck scale (zone 1/21 & 2/22) with 2000 kg capacity, 0,2 kg division, painted steel structure. Multifunction weight indicator with IP68 stainless steel case, 17-key keypad and LCD display. Ex II 2G IIB T4 Gb X and Ex II 2D IIIC T197øC Db X protection. Fitted with manual and conformity declaration (available in IT, EN, FR, DE).

Consult
TPWX2GD20M-1 Approved ATEX pallet truck scale (zone 1/21 & 2/22) with 1000/2000 kg dual range capacity, 0,5/1 kg division and painted steel structure. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Ex II 2G IIB T4 Gb X and Ex II 2D IIIC T197øC Db X protection. Fitted with manuals and conformity declaration (available in IT, EN, FR, DE).

Consult

Options

Special calibrations

Part # Description List Price Cart / Quote
FS600M Single range capacity option of 600 kg for CE-M approved pallet truck scales, with resolution of 0,2 kg and CE approved accuracy, in accordance with Directive 2014/31/EU.

Consult
FS1500M2R Double range capacity option of 600/1.500 kg for CE-M approved pallet truck scales, with resolution of 0,2/0,5 kg and CE approved accuracy, in accordance with Directive 2014/31/EU.

Consult
FS1500M Single range capacity option of 1.500 kg for CE-M approved pallet truck scales, with resolution of 0,5 kg and CE approved accuracy, in accordance with Directive 2014/31/EU

Consult
FS2500M Double range high capacity option of 1.500/2.500 kg for CE-M approved pallet truck scales, with a resolution of 0,5/1 kg and CE approved accuracy, in accordance with Directive 2014/31/EU

Consult
FS2500 Single range high capacity option of 2.500 kg, keeping standard resolution. Accuracy as standard up to 2.000 kg; ñ2 kg from 2.000 kg up to 2.500 kg.

Consult
TPWHRES High resolution version for pallet truck scale, d = 0,1 kg.

Consult

Calibration service (ACCREDIA/DAKKS) only at time of order

Special sizes

Parking brake

Extractable additional battery

Optional steering wheels

Other options
