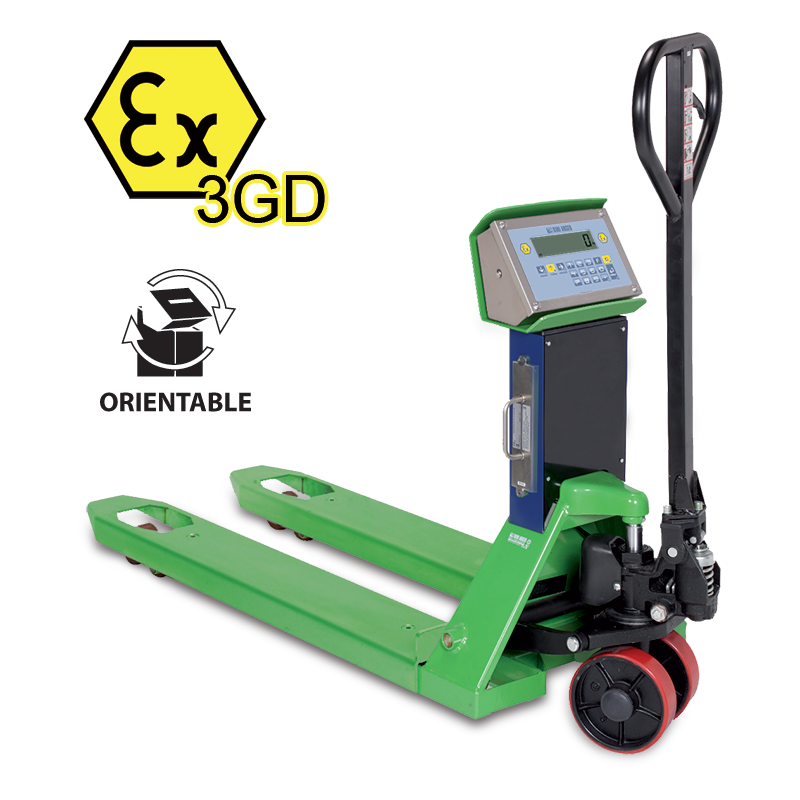

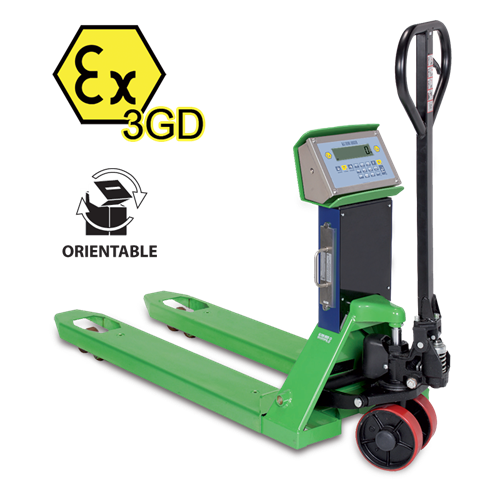

TPW EX 3GD ATEX Pallet Truck Scale Zone 2/22

ATEX pallet truck scale for use in areas classified as hazardous (ZONE 2 and 22) with type of protection in accordance with Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115C° Dc X. Available in approved version for legal-for-trade use. Manufactured, calibrated and adjusted in Italy by Dini Argeo, using certified sample masses.

WEIGHING FEATURES

  • Maximum lifting capacity: 2,000 kg.
  • Resolution:
    • internal use: 0,2 kg
    • approved: 0,5 / 1 kg
  • Accuracy (weighing of goods on Europallet with distributed load):
    • internal use: +/- 0,5 kg
    • approved: according to CE certification (Directive 2014/31/EU)
  • Calibration and Set-Up parameters configurable from keyboard or PC.
Request More Information
TPW EX 3GD

WHY CHOOSE DINI ARGEO TPW EX 3GD

Technical Features

  • Forks with low profile, only 85 mm.
  • Forks dimensions 1150 x 550 x 85 mm.
  • Lifting height 200 mm.
  • Weight approx. 125 kg.
  • Bearing structure in extra-thick steel, oven-fire painted.
  • Optional stainless steel forks.
  • Standard swivelling head +/-160°.
  • Steering wheels and loading rollers with polyurethane coating.
  • Quick-lift hydraulic pump allowing controlled lowering of the forks.
  • Membrane waterproof keyboard with 17 numeric/functional keys.
  • Battery charger 230Vac 50Hz with EU, US, UK, AU plug as standard (charging time 12 hours) for charging in safe area.
  • Serial port for radio communication (option OBRF3GD-x), Wi-Fi (option OBWIFI3GD-x) or downloading of weighs (option TPWMEM3GD-x).
  • Operating temperature: -10° / +40° C

Available Upon Price Estimate

  • Non-standard forks (both in length and width)
  • High resolution 0,1 kg
  • Approved load capacity 600 kg, resolution 0,2 kg
  • Approved load capacity 600 / 1.500 kg, resolution 0,2 / 0,5 kg
  • Approved load capacity 1.500 kg, resolution 0,5 kg
  • Approved load capacity 1.500 / 2.500 kg, resolution 0,5 / 1 kg
  • Load capacity 2.500 kg
  • Other capacities / special resolutions: upon request
  • Other special versions: upon request

The Easiest One to Recalibrate and Repair

  • The only one without junction box: the adjustment of every single cell is conveniently carried out from the keyboard.
  • Spare parts and wearing parts always available and ready for delivery.
  • Specialized service centers throughout Italy.



Main Functions:

  • High resolution display x 10
  • Net/Gross
  • lb/kg conversion
  • Free conversion factor (for meter-counting, litre-counting systems etc)
  • Weight totalisation
  • Formulation
  • +/- control, with quick insertion of targets and thresholds
  • Percentage weighing
  • Piece counter
  • Set Point Control (with optional interface)



Code Max (kg) d (kg) M (kg) d HR
(kg)
TPWX3GD-2 2000 0,2 -- 0,1
TPWX3GDM-1  1000 / 2000 -- 0,5 / 1



WARNING
For direct weighing of light metals such as aluminum, magnesium, titanium and their alloys, the use of optional STAINLESS STEEL fork covers is necessary.

Resources / Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells Articles
Increase Efficiency and Productivity with Dini Argeo Weighing Solutions Email Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|Pallet Truck Scales Articles
Inventory Weighing Solutions and Programmes Email Weight Indicators|Bench Scales|Pallet Truck Scales|Floor Scales Articles
SOLAS: Solutions for Weighing Containers Email Axle Weighing Scales|Weighing Axle Platforms and Indicators|In-Motion Axle Scales|Dynamic Axle Weighing|Crane Scales|Weighing Forks Articles

Parts

Available Versions

Part # Description List Price Cart / Quote
TPWX3GD-2 ATEX pallet truck scale (zone 2/22) with 2000 kg capacity, 0,2 kg division, and painted steel structure. Multifunction weight indicator with IP68 stainless steel case, 17-key keypad, and backlit LCD display. Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115øC Dc X protection. Fitted with manual and conformity declaration (available in IT, EN, FR, DE).

Consult
TPWX3GDM-1 Approved ATEX pallet truck scale (zone 2/22) with 1000/2000 kg dual range capacity, 0,5/1 kg division and painted steel structure. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115øC Dc X protection. Fitted with manuals and conformity declaration (available in IT, EN, FR, DE).

Consult

Options

Special calibrations

Part # Description List Price Cart / Quote
FS600M Single range capacity option of 600 kg for CE-M approved pallet truck scales, with resolution of 0,2 kg and CE approved accuracy, in accordance with Directive 2014/31/EU.

Consult
FS1500M2R Double range capacity option of 600/1.500 kg for CE-M approved pallet truck scales, with resolution of 0,2/0,5 kg and CE approved accuracy, in accordance with Directive 2014/31/EU.

Consult
FS1500M Single range capacity option of 1.500 kg for CE-M approved pallet truck scales, with resolution of 0,5 kg and CE approved accuracy, in accordance with Directive 2014/31/EU

Consult
FS2500M Double range high capacity option of 1.500/2.500 kg for CE-M approved pallet truck scales, with a resolution of 0,5/1 kg and CE approved accuracy, in accordance with Directive 2014/31/EU

Consult
FS2500 Single range high capacity option of 2.500 kg, keeping standard resolution. Accuracy as standard up to 2.000 kg; ñ2 kg from 2.000 kg up to 2.500 kg.

Consult
TPWHRES High resolution version for pallet truck scale, d = 0,1 kg.

Consult

Calibration service (ACCREDIA/DAKKS) only at time of order

Special Sizes

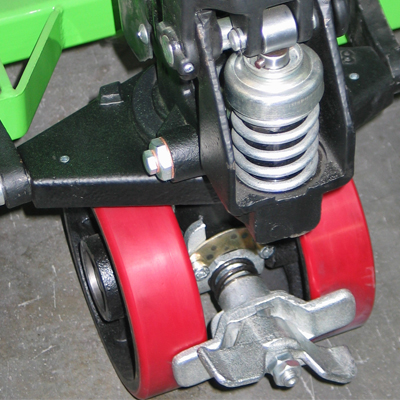

Parking brake

Stainless steel forks

communication interfaces

Extractable additional battery

Storing the weighs

Optional steering wheels

Other options
