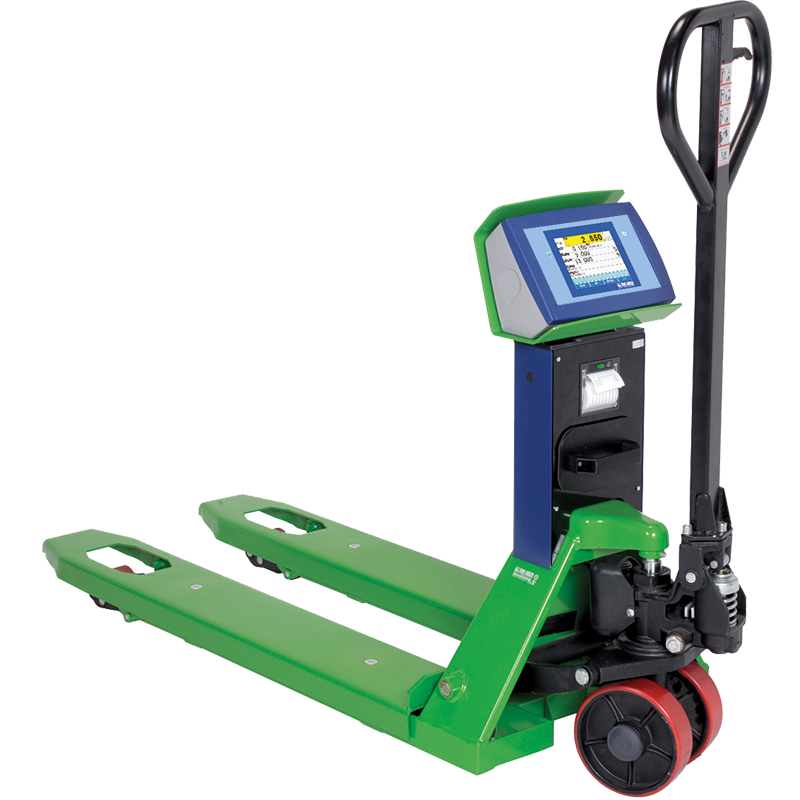

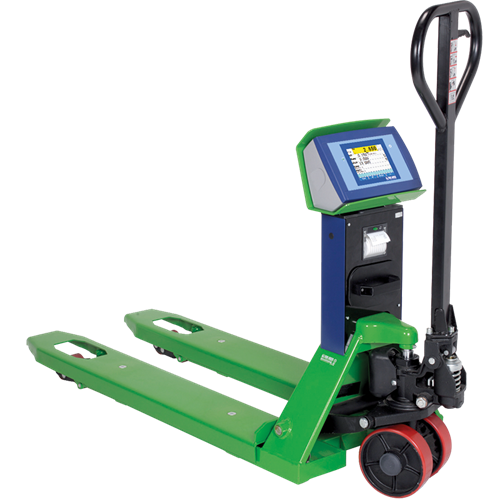

TPW Touch Pallet Truck Scale with Touchscreen Interface

High-end pallet truck scale, with color touch screen weight indicator and a wide selection of interfaces and software for advanced data management. Ideal for integrating the weighing into the company's IT system. Available in approved version for legal-for-trade use. Manufactured, calibrated and adjusted in Italy by Dini Argeo, with the use of certified sample weights.

WEIGHING FEATURES

Maximum lifting capacity: 2,000 kg.
Resolution:
- internal use: 0,2 kg
- approved: 0,5 / 1 kg
Precision (weighing of goods on Europallet with distributed load):
- internal use: +/- 0,5 kg
- approved: according to CE certification (Directive 2014/31/EU)
Configuration, calibration and diagnostics from keyboard or PC with DINITOOLS.

Request More Information

WHY CHOOSE TPW TOUCH DINI ARGEO

This is the professional pallet truck scale equipped with a touch screen indicator, specifically for managing and communicating data with the main computer systems.
Suitable for formulation applications, piece counting, totalisation, storage, bar code reading, printing, etc.
With standard printer to guarantee the traceability of the weighing operations. Completely customizable printouts.
Available in approved version for legal-for-trade use.
It can be integrated with Wi-Fi, barcode scanner and Bluetooth.
Built with 4 approved Dini Argeo load cells, in IP68 stainless steel, approved.
Programmable automatic shutdown that extends the working autonomy, with battery level indication.

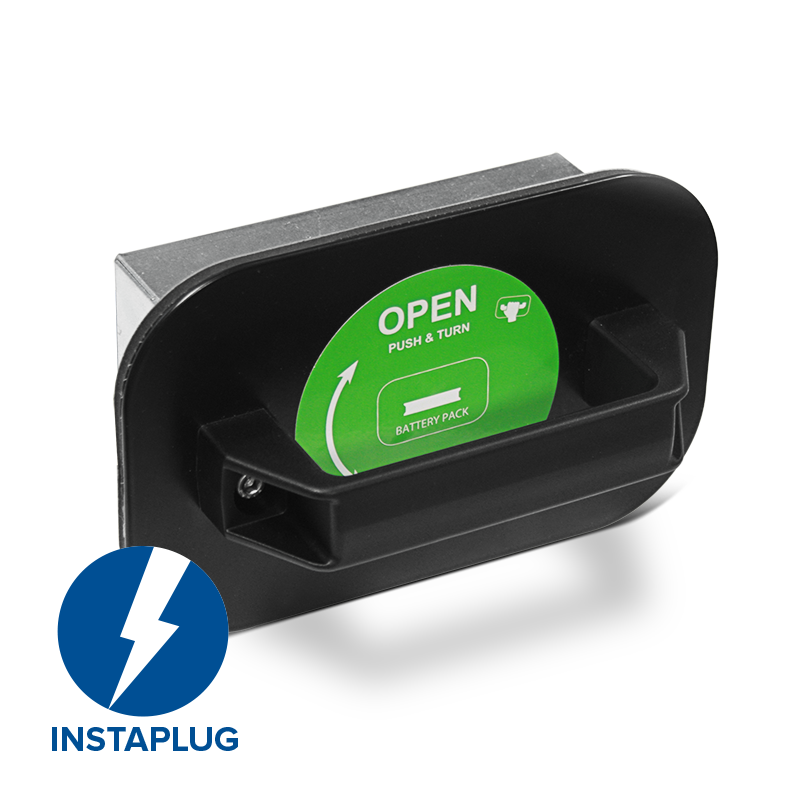

Rechargeable extractable battery with "Instaplug" technology, quick connection, anti-reverse, and autonomy of up to 10h, with auto-off and energy-saving functions activated.*
Each pallet truck is tested and supplied with its own certificate to guarantee the declared precision.

(*) Please note: working autonomy may be reduced depending on the number of prints per day and the accessories selected. For applications with a WiFi module, we recommend purchasing the optional second battery code INSTAPLUGBK.

COMMUNICATION

TPW TOUCH is the professional weighing pallet truck specifically designed for database management, data processing and advanced communication with the main computer systems. It can also be integrated with Wi-Fi, barcode scanner and Bluetooth.

Thanks to the programmable touch screen display, you can create custom-made interfaces for any application:

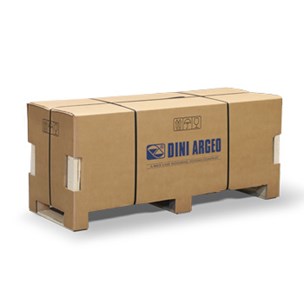

PROTECTIVE PACKAGING

The protective packaging on pallets ensures optimal protection of the product and is made of fully recyclable materials.

TPW Touch Pallet Truck Scale with Touchscreen Interface Specifications

Technical Features

Lowered profile forks, only 85 mm.
Fork dimensions 1150 x 550 x 85 mm (wide fork version on request).
Lifting height 200 mm.
Weight approximately 116 kg (without packaging).
Structure in extra-thick steel and oven-fire painted mechanics.

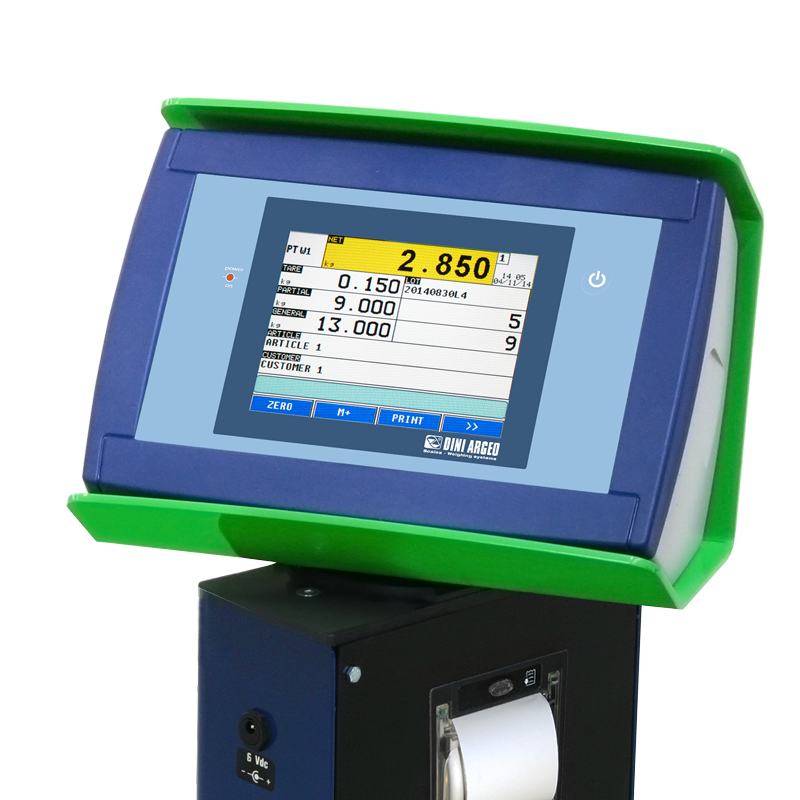

Set swivel head , adjustable +/-160°.
Protection rating IP65 (except printer area).

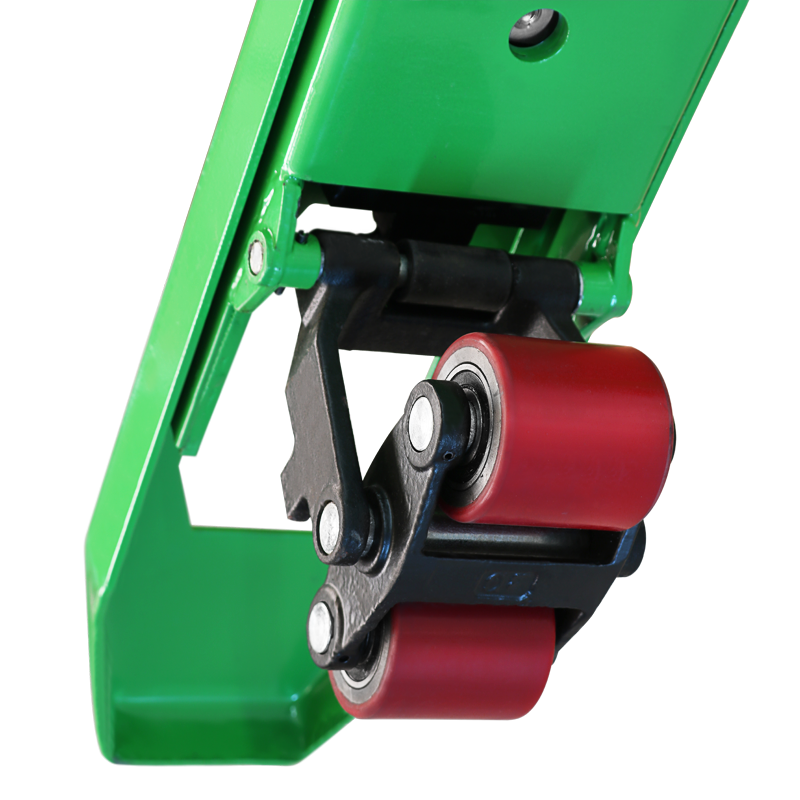

Steering wheels and loading rollers with polyurethane coating.
Quick-lift hydraulic pump allowing controlled lowering of the forks.
Battery charger 230Vac 50Hz with EU plug included as standard (charging time approx. 8 hours). Optional UK, AU, US plugs.
2 bi-directional RS232/C ports for radio module, PC or remote terminal connection. Wide range of interfaces available.
Calendar Clock and Alibi Memory as standard..
Printer as standard with dedicated RS232/C bidirectional port.
Operating temperature: -10° / +40 °C

Other Versions Available

Non-standard forks (both in length and width)
High resolution 0,1 kg
Approved load capacity 600 kg, resolution 0,2 kg
Approved load capacity 600 / 1.500 kg, resolution 0,2 / 0,5 kg
Approved load capacity 1.500 kg, resolution 0,5 kg
Approved load capacity 1.500 / 2.500 kg, resolution 0,5 / 1 kg
Load capacity 2.500 kg
Other capacities / special resolutions: upon request
Other special versions: upon request

The Easiest One to Recalibrate and Repair

The only one without junction box: the adjustment of each individual cell is done comfortably from the keyboard.
Spare and wear parts always available and ready for delivery.
Service centres throughout Europe and the world.

Standard version "AF01" for Totalization and Dosage, in loading/unloading, formulation; functioning as a PC terminal (data entry communication protocol); archive of 1000 articles; 200 customers/suppliers, 300 tares, 4 independent total levels that can be displayed and printed, bar code reading for article selection 15 configurable and printable ID texts (example: Code, lot ID, operator ID, shift number, etc.), A.C.W. (Automatic Calibration Warning) configurable automatic warning for periodical calibration check. Customizable printouts.

Applications

Thanks to the integrated development area, it is possible to create autonomously fully customized applications:

guided procedures, messaging for the operator
management of serial ports, customization of communication protocols
complete management of digital I/O
sequential or simultaneous automations
data entry, customized archives

Dini Argeo also offers the service of development of customized programs, by estimate.

Available Versions

Code	Max (kg)	d (kg)	M (kg)	d HR (kg)*
TPWTS-1	2000	0,2	--	0,1
TPWTSM-1	1000 / 2000	--	0,5 / 1	--

Resources / Downloads

Articles

Title	Email	Category	Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses	Email	Pallet Truck Scales\|Pallet Scales\|Pallet Weighers\|Electric Pallet Truck Scales\|Ex Pallet Truck Scales\|Hygienic Pallet Truck Scales\|Pallet Weighing\|Weighing Forks\|Hydraulic Weighing\|Counting Scales\|Bench Scales\|Axle Weighing Scales\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Weighing Axle Platforms and Indicators\|High Resolution Load Cells\|Off Center Load Cells\|Bending Beam Load Cells\|Shear Beam Load Cells\|Double Shear Beam Load Cells\|Compression Load Cells\|Tension Load Cells\|Column Load Cells\|Assembly Kit Load Cells\|Ex Load Cells\|Hygienic Load Cells	Articles
Increase Efficiency and Productivity with Dini Argeo Weighing Solutions	Email	Axle Weighing Scales\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Weighing Axle Platforms and Indicators\|Pallet Truck Scales	Articles
Inventory Weighing Solutions and Programmes	Email	Weight Indicators\|Bench Scales\|Pallet Truck Scales\|Floor Scales	Articles
SOLAS: Solutions for Weighing Containers	Email	Axle Weighing Scales\|Weighing Axle Platforms and Indicators\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Crane Scales\|Weighing Forks	Articles

Videos/Webinars

Title	View	Download	Email	Category
TPW E-FORCE Pallet Truck Scale	View		Email	Pallet Truck Scales
TPW Tutorial \| Pump mounting full video	View		Email	Pallet Truck Scales
TPW Tutorial \| Pallet Truck Scale Start-up	View		Email	Pallet Truck Scales
TPW Tutorial \| Pump disassembly full video	View		Email	Pallet Truck Scales
TPW Tutorial \| Roller replacement	View		Email	Pallet Truck Scales
TPW Tutorial \| Valve replacement	View		Email	Pallet Truck Scales
TPW Tutorial \| Skids replacement	View	Download	Email
TPW Tutorial \| Tiller mounting version 1	View		Email	Pallet Truck Scales
TPW Tutorial \| Tiller mounting version 2	View		Email	Pallet Truck Scales
TPW Tutorial \| Oil filling tutorial	View		Email	Pallet Truck Scales
TPW Tutorial \| Forks height adjustment	View		Email	Pallet Truck Scales
TPW Pallet Truck Scale \| Weighing solution for material handling	View		Email

Parts

Available Versions

	Part #	Description	List Price	Cart / Quote
	TPWTS-1	Pallet truck scale Max=2.000 kg, d=0,2 kg. Touch screen weight indicator. Standard thermal printer.	Consult	View
	TPWTSM-1	Approved pallet truck scale with 1000/2000 kg dual range capacity, 0,5/1 kg division. Touch screen weight indicator. Fitted with thermal printer.	Consult	View

Options

International power plugs

Part #	Description	List Price	Cart / Quote
UK-V3	BS1363 UK power supply version, for Pb battery charger.	Consult	View
AUS-V3	Version with AU charger.	Consult	View
US-V3	Version with US charger.	Consult	View

Special calibrations

Part #	Description	List Price	Cart / Quote
FS600M	Single range capacity option of 600 kg for CE-M approved pallet truck scales, with resolution of 0,2 kg and CE approved accuracy, in accordance with Directive 2014/31/EU.	Consult	View
FS1500M2R	Double range capacity option of 600/1.500 kg for CE-M approved pallet truck scales, with resolution of 0,2/0,5 kg and CE approved accuracy, in accordance with Directive 2014/31/EU.	Consult	View
FS1500M	Single range capacity option of 1.500 kg for CE-M approved pallet truck scales, with resolution of 0,5 kg and CE approved accuracy, in accordance with Directive 2014/31/EU	Consult	View
FS2500M	Double range high capacity option of 1.500/2.500 kg for CE-M approved pallet truck scales, with a resolution of 0,5/1 kg and CE approved accuracy, in accordance with Directive 2014/31/EU	Consult	View
FS2500	Single range high capacity option of 2.500 kg, keeping standard resolution. Accuracy as standard up to 2.000 kg; ñ2 kg from 2.000 kg up to 2.500 kg.	Consult	View
TPWHRES	High resolution version for pallet truck scale, d = 0,1 kg.	Consult	View

Calibration service only available at time of order

	Part #	Description	List Price	Cart / Quote
	CT7	ISO 17025 calibration certificate from 1501 to 3000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View

Special sizes

Parking brake

	Part #	Description	List Price	Cart / Quote
	TPWFRE	Parking brake system with command pedal mounted on steering wheels.	Consult	View
	TPWFRE-1	Parking brake system with command pedal for wide fork version (TPWWF-1), mounted on steering wheels. Please note: This brake is not compatible with the accessory wheels for this product.	Consult	View

Stainless steel forks

	Part #	Description	List Price	Cart / Quote
	TPWXFI	Pair of stainless steel forks.	Consult	View

Available firmwares

	Part #	Description	List Price	Cart / Quote
	AF02	Software for piece/quantity counting.	Consult	View
	AF05	Software for price computing and industrial labelling.	Consult	View

Extractable additional battery

	Part #	Description	List Price	Cart / Quote
	INSTAPLUGBK-1	Additional extractable battery for using the scale 24/7 with INSTAPLUG reversible connector.	Consult	View

Storing the weighs (only at time of order)

Part #	Description	List Price	Cart / Quote
SWM	"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).	Consult	View
USBTPWET	USB port kit installed on the pallet truck scale column, complete of USB key for PC.	Consult	View

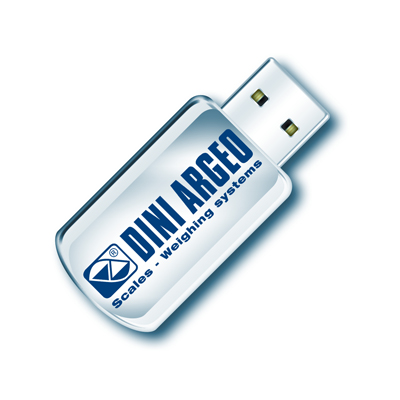

USBK	Set of 5 USB keys for recording the weighs.	Consult	View

Configuration and customization services

	Part #	Description	List Price	Cart / Quote
	PRNSERV	Custom-made ticket (up to 4 layouts). NET price.	Consult	View
	APRNSERV	Custom-made label (up to 4 layouts). NET price.	Consult	View

Display customization

	Part #	Description	List Price	Cart / Quote
	GTMEM	10 memories set for display customization with logos and images.	Consult	View

Communication Interfaces

Part #	Description	List Price	Cart / Quote
RF2G4	Built-in 2.4 GHz radiofrequency module. Max. functioning distance in appropriate environmental and installation conditions: 45m indoors, 140m outdoors. Up to 39 configurable channels. (RF2G4 must be combined with another radio module).	Consult	View
BLTH-3	Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems.	Consult	View
WIFITPWLK-1	Built-in WI-FI interface. For wireless connection (through access point) to the company computer system.	Consult	View
OBRF2G4-USB	External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels.	Consult	View

Optional driving wheels

Part #	Description	List Price	Cart / Quote
RTV2	Set of vulkollan steering wheels (nonstainable). Compatible with both wide and standard forks. Please note: when combined with wide forks, the guide wheels do not allow the TPWFRE-1 parking brake to be fitted.	Consult	View
TPWRNY	Set of nylon steering wheels. Compatible with both wide and standard forks. Please note: when combined with wide forks, the guide wheels do not allow the TPWFRE-1 parking brake to be fitted.	Consult	View
TPWRAS	Antistatic driving wheels.	Consult	View

Keyboard protection cover

	Part #	Description	List Price	Cart / Quote
	CVRXP	Kit of 10 moulded protective covers in transparent plastic. For indicator DFWXP or 3590EXP with ABS case.	Consult	View

Expendable materials

Part #	Description	List Price	Cart / Quote
LNLESS	72 rolls of Linerless thermal sticker paper 20m long, 56,5mm wide. 48,5mm outer diameter. 12mm diameter central hole.	Consult	View
RPT57C	50 thermal paper rolls 30m long, 57mm wide. 12mm hole. 51mm external diameter.	Consult	View
RPT57AC	50 adhesive thermal paper rolls 15m long, 57mm wide. 18mm hole. 50mm external diameter.	Consult	View

Connection cables

	Part #	Description	List Price	Cart / Quote
	RSCBUSB-1	USB PC/RS232 converter cable, l=1,5m. USB/RJ11 connector.	Consult	View

Other options

Part #	Description	List Price	Cart / Quote
TECMAN	Printed technical manual (Free download from the website).	Consult	View
UMAN	Printed user manual (Free download from the website).	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Consult	View
