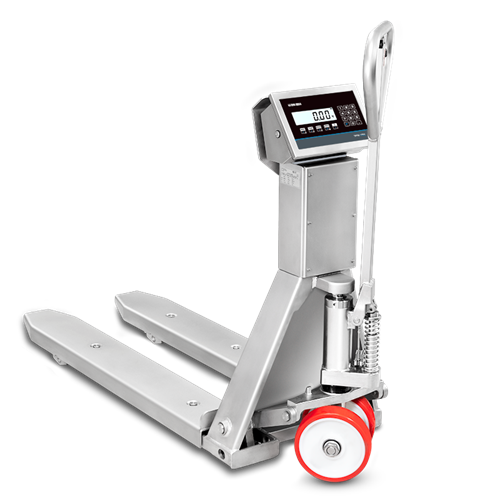

TPWI HYGIENX Stainless Steel Pallet Truck Scale

High-end pallet truck designed for the food, chemical and pharmaceutical industries and for wet working environments where high standards of hygiene are required. Made entirely of stainless steel, TPWI HYGIENX is designed to be fully sanitised throughout using high-pressure water jets. Manufactured and calibrated in Italy by Dini Argeo using certified sample weights.

Weighing Features

  • Maximum lifting capacity: 2.000 kg (higher capacities available on request, up to 3000 kg; request feasibility study depending on the environment and mode of use)
  • Resolution:
    • internal use: 0,2 / 0,5 kg
    • approved: 0,5 / 1 kg
  • Accuracy (weighing of goods on Euro pallets with a distributed load):
    • internal use: +/- 0,5 kg
    • approved: according to CE certification (Directive 2014/31/EU)
  • Calibration and Set-Up parameters configurable from keyboard or PC.
Request More Information

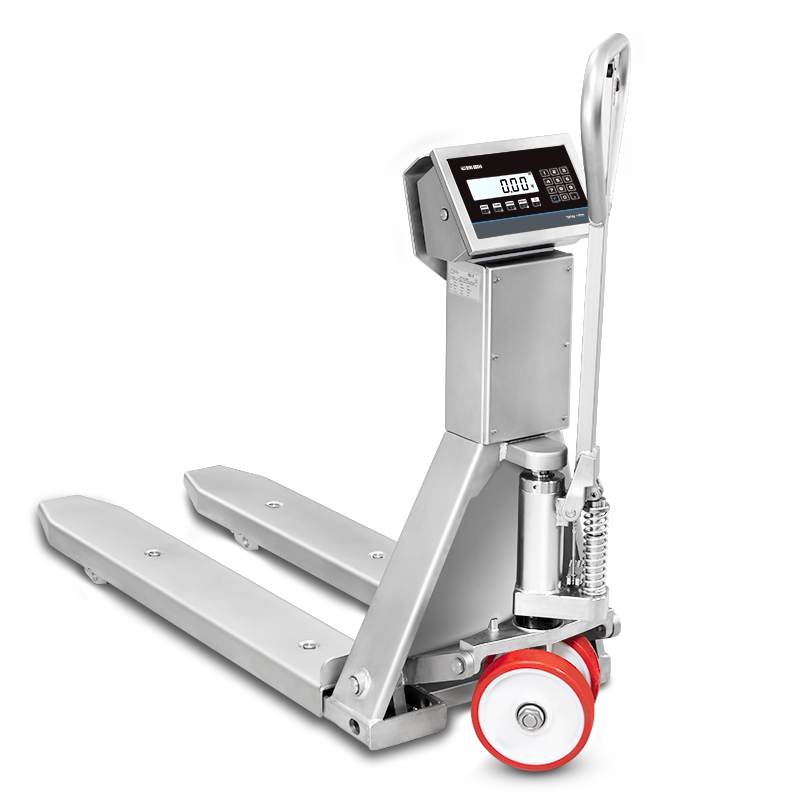

TPWI Hygienx 3Quarti

WHY CHOOSE TPWN DINI ARGEO



GMP-COMPLIANT PRODUCT

This product is a weighing instrument of high quality and precision, designed and manufactured for use in the food, chemical and pharmaceutical industries. It is manufactured according to GMP (Good Manufacturing Practices) standards, in stainless steel, with specific surface treatment and other construction features required in food, chemical and pharmaceutical environments.



Technical Features

  • Lowered profile forks, only 85 mm.
  • Fork dimensions 1180 x 550 x 85 mm.

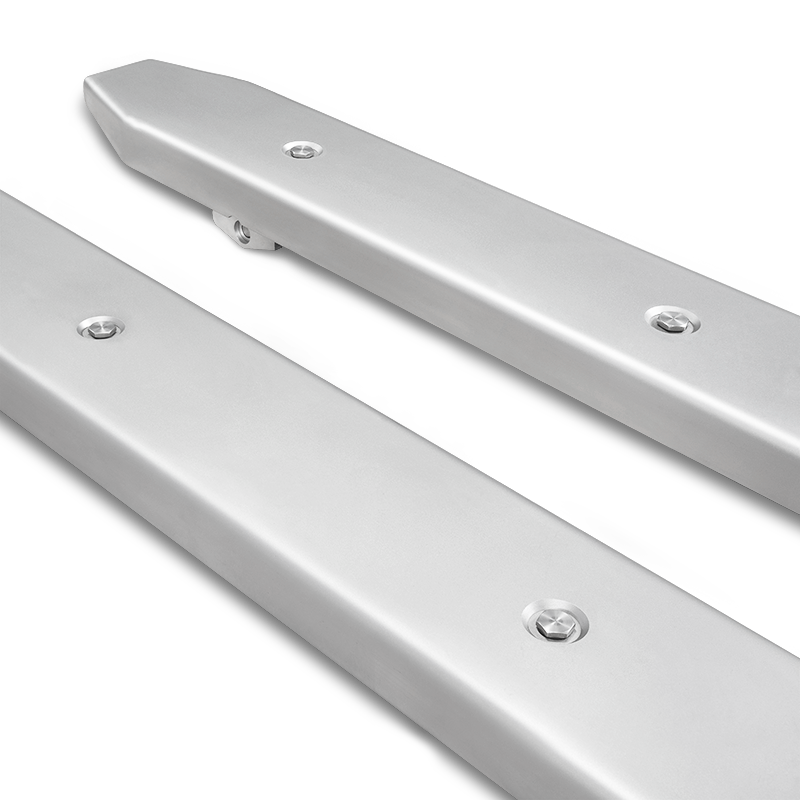

  • Removable fork covers for inspection and cleaning of the area inside the forks.
  • Lifting height 200 mm.
  • Weight approx. 135 kg.
  • IP68 watertight column.
  • 100% AISI 304 stainless steel pallet truck.
  • Nylon steering wheels and double loading rollers with polyurethane coating.
  • 200 mm diameter steering wheels.
  • Lift pump made of AISI 304 stainless steel allowing controlled lowering of the forks.

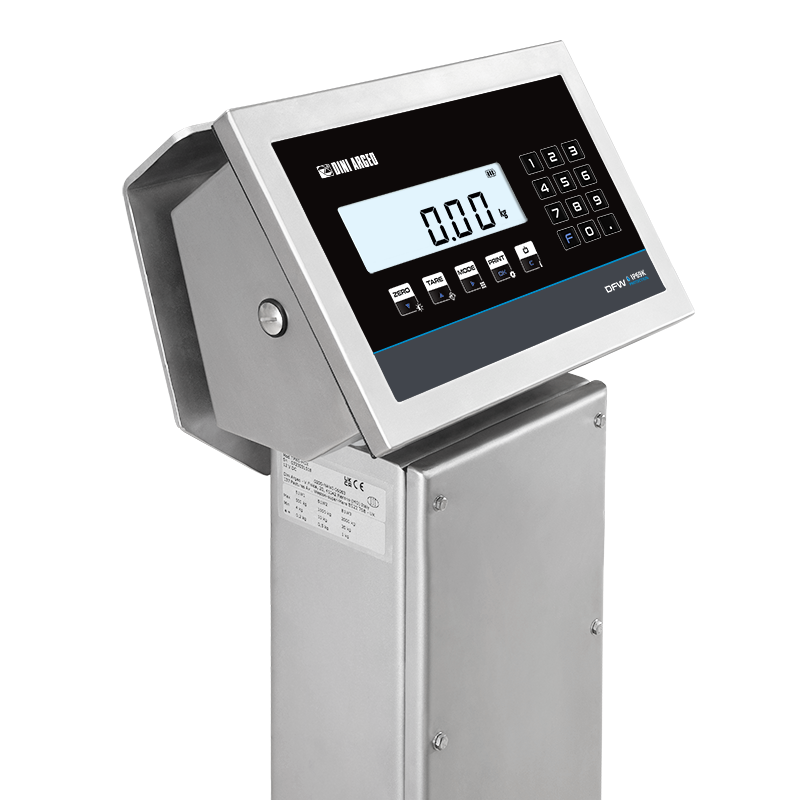

  • Waterproof membrane keypad with 17 numeric/functional keys.
  • 230Vac 50Hz battery charger with EU plug as standard.
  • Battery charging socket with double protection against water and humidity.
  • Configurable RS232/C bidirectional port for PC, radio module, WIFI or handheld terminal
  • Working temperature: -10° / +40°



Other Available Versions:

  • Approved load capacity 600 / 1.500 kg, resolution 0,2 / 0,5 kg
  • Approved load capacity 1.500 kg, resolution 0,5 kg
  • Approved load capacity 1.500 / 2.500 kg, resolution 0,5 / 1 kg
  • Load capacity 2.500 kg

The Easiest One Recalibrate and Repair

  • The only one without junction box: the adjustment of each individual cell is done comfortably from the keyboard.
  • Spare and wear parts always available and ready for delivery.
  • Service centres throughout Europe and the world.

Upon Request

  • Special fork dimensions
  • Special capacities/resolutions
  • AISI 316 stainless steel structure
  • Parking brake.



Main Functions:

  • Operating modes selectable directly by the user via a dedicated key*:
    - High resolution display x 10.
    - Precision weighing with temporary recalibration using a sample weight (for internal factory use)
    - Net/gross
    - lb/kg conversion
    - Free conversion factor (for litre-metering systems, etc.)
    - Weight totalisation
    - Formulation
    - +/- control with quick target and threshold entry
    - Percentage weighing
    - Percentage dosage with programmable target
    - Piece counting
    - Hold
    - Alibi memory (optional)
  • Access to user menu via a dedicated key*, for weighing filter, date and time, setpoint and user-accessible tare.

    *These menu quick access keys can be inhibited by configuring a dedicated password.


Code		 Max
(kg)		 d
(kg)
(kg)
TPWI-HGX 1.000 / 2.000 0,2 / 0,5 --
TPWIM-HGX 1.000 / 2.000 -- 0,5 / 1

Resources / Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells Articles
Hygienic Weighing Systems - FAQ Email Hygienic Scales|Hygienic Load Cells|Hygienic Weight Indicators|Hygienic Pallet Truck Scales Articles
Important Weighing System Features to Consider for Hygienic Industries Email Hygienic Scales|Hygienic Load Cells|Hygienic Pallet Truck Scales|Hygienic Weight Indicators Articles
Inventory Weighing Solutions and Programmes Email Weight Indicators|Bench Scales|Pallet Truck Scales|Floor Scales Articles
SOLAS: Solutions for Weighing Containers Email Axle Weighing Scales|Weighing Axle Platforms and Indicators|In-Motion Axle Scales|Dynamic Axle Weighing|Crane Scales|Weighing Forks Articles

Parts

Available versions

Part # Description List Price Cart / Quote
TPWI-HGX Stainless steel pallet truck scale, fully washable and sanitazable, with 1.000/2.000 kg double range capacity, 0,2/0,5 kg division.

Consult
TPWIM-HGX Approved stainless steel pallet truck scale, fully washable and sanitazable, with 1.000/2.000 kg triple range capacity, 0,5/1 kg division.

Consult

Options

Special calibrations

Part # Description List Price Cart / Quote
FS1500M2R Double range capacity option of 600/1.500 kg for CE-M approved pallet truck scales, with resolution of 0,2/0,5 kg and CE approved accuracy, in accordance with Directive 2014/31/EU.

Consult
FS1500M Single range capacity option of 1.500 kg for CE-M approved pallet truck scales, with resolution of 0,5 kg and CE approved accuracy, in accordance with Directive 2014/31/EU

Consult
FS2500M Double range high capacity option of 1.500/2.500 kg for CE-M approved pallet truck scales, with a resolution of 0,5/1 kg and CE approved accuracy, in accordance with Directive 2014/31/EU

Consult
FS2500 Single range high capacity option of 2.500 kg, keeping standard resolution. Accuracy as standard up to 2.000 kg; ñ2 kg from 2.000 kg up to 2.500 kg.

Consult

Calibration service (ACCREDIA/DAKKS) only at time of order

Storing the weighs

Parking brake

Communication Interfaces

Digital Input / Output

Accessories for cleaning

Other options

International power plugs
