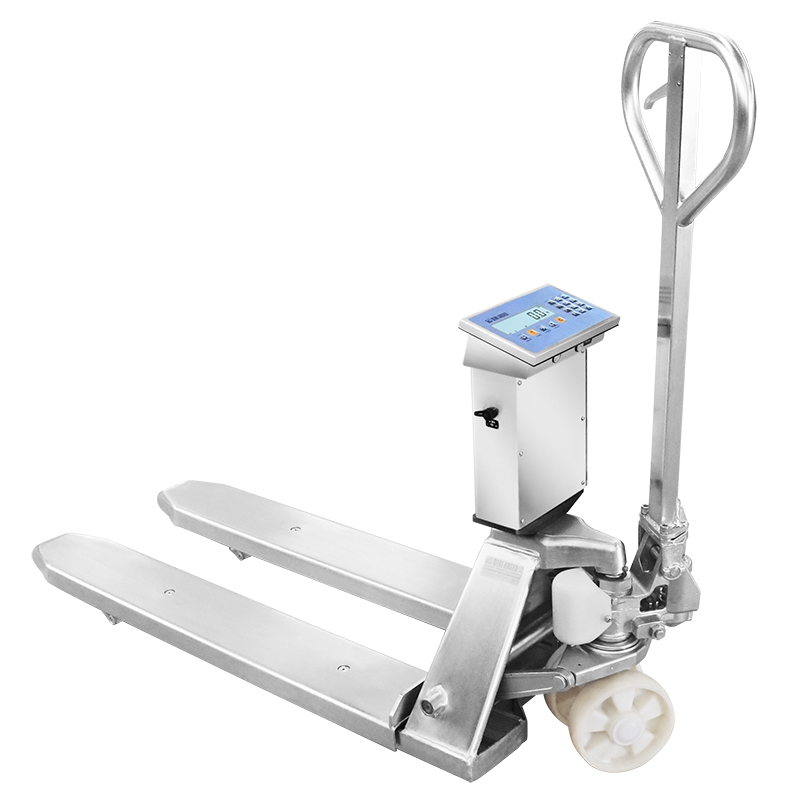

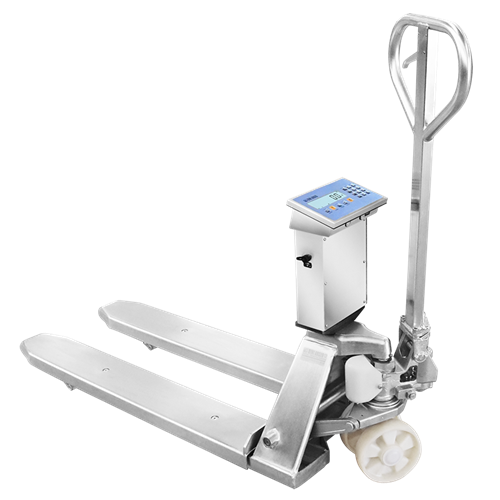

TPWI-LK Logistics Series Stainless AISI 304 Pallet Truck Scale

Entry level version of the TPWI range, made of stainless steel, easy to use, robust and durable. Available also in approved version for legal-for-trade use. Manufactured, calibrated and adjusted in Italy by Dini Argeo, with the use of certified sample weights.

WEIGHING FEATURES

Maximum lifting capacity: 2,000 kg.
Resolution:
> internal use: 0,5 / 1 kg
> approved: 1 kg
Accuracy (weighing of goods on Europallet with distributed load) +/- 1 kg.

Request More Information

WHY CHOOSE TPWI-LK DINI ARGEO

Stainless steel pallet truck scale, suitable for heavy duty working conditions.
Available in approved version for legal-for-trade use and with optional printer for tracking the weighing operations.
Powered by internal rechargeable battery and about 80 hours of autonomy.
Built with 4 Dini Argeo load cells, in stainless steel, with IP68 protection.
Programmable automatic switch-off which lengthens the working autonomy, with battery level indication.
The large backlit 25 mm LCD display allows an easier reading even in low light conditions.
Each pallet truck is tested and supplied with a certificate to guarantee the declared precision.

TPWI-LK Logistics Series Pallet Truck Scale Specifications

Technical Features

Forks with low profile, only 85 mm.
Forks dimensions 1150 x 550 x 85 mm.
Lifting range: 180 mm.
Weight 135 kg approx.
Stainless steel supporting structure.
Steering wheels in nylon, diameter 175 mm.
Loading rollers in nylon.

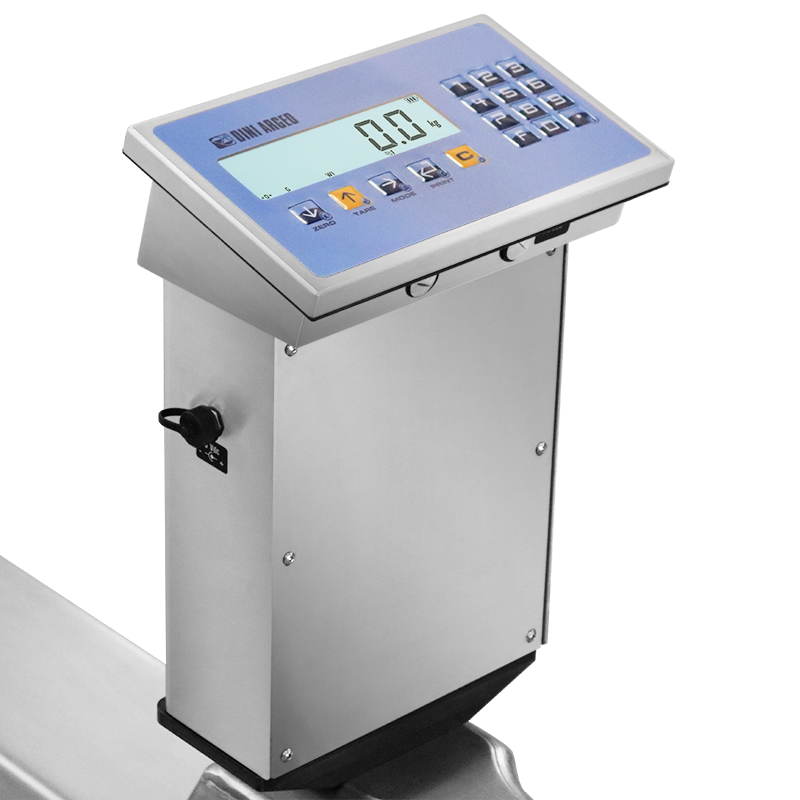

Stainless steel AISI 304 Dini Argeo weight indicator, with IP65 protection, easy to clean and resistant to harsh and corrosive environments.
Waterproof and functional 17-key keyboard, with indications for quick recall of the main functions and adjustments.
Stainless steel lifting pump allowing controlled lowering of the forks.
Battery charger 230Vac 50Hz with EU as standard. Optional UK, AU and US plugs (charging time approx. 6-8 hours).
Bi-directional RS232/C port configurable for PC, radio modem or handheld terminal.
Operating temperature: -10° / +40°

Other Available Versions

Special capacities/resolutions: upon request.
Other special versions: upon request.

The Easiest One to Recalibrate and Repair

The only one without junction box: the adjustment of each individual cell is done comfortably from the keyboard.
Spare and wear parts always available and ready for delivery.
Service centres throughout Europe and the world.

Main functions

The user can select the operating modes directly using the dedicated key*:
- High resolution display x 10
- Precision weighing with temporary recalibration via a sample weight (for internal factory use)
- Net/Gross
- Lb to Kg converter
- Free conversion factor (for meter and litre counters etc.)
- Weight totalizer
- Formulizer
- +/- controller with quick target and threshold input
- Percentage weighing
- Percentage batching with programmable target
- Piece counter
- Hold
- Alibi memory (optional)

Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.

* These quick access keys to the menus can be blocked by configuring a dedicated password.

Available Versions

Code	Max (kg)	d (kg)	M (kg)
TPWI-LK	1000 / 2000	0,5 / 1	--
TPWIM-LK	2000	--	1

Resources / Downloads

Articles

Title	Email	Category	Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses	Email	Pallet Truck Scales\|Pallet Scales\|Pallet Weighers\|Electric Pallet Truck Scales\|Ex Pallet Truck Scales\|Hygienic Pallet Truck Scales\|Pallet Weighing\|Weighing Forks\|Hydraulic Weighing\|Counting Scales\|Bench Scales\|Axle Weighing Scales\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Weighing Axle Platforms and Indicators\|High Resolution Load Cells\|Off Center Load Cells\|Bending Beam Load Cells\|Shear Beam Load Cells\|Double Shear Beam Load Cells\|Compression Load Cells\|Tension Load Cells\|Column Load Cells\|Assembly Kit Load Cells\|Ex Load Cells\|Hygienic Load Cells	Articles
Increase Efficiency and Productivity with Dini Argeo Weighing Solutions	Email	Axle Weighing Scales\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Weighing Axle Platforms and Indicators\|Pallet Truck Scales	Articles
Inventory Weighing Solutions and Programmes	Email	Weight Indicators\|Bench Scales\|Pallet Truck Scales\|Floor Scales	Articles
SOLAS: Solutions for Weighing Containers	Email	Axle Weighing Scales\|Weighing Axle Platforms and Indicators\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Crane Scales\|Weighing Forks	Articles

Parts

Available Versions

Part #	Description	List Price	Cart / Quote

Options

International power plugs

Part #	Description	List Price	Cart / Quote
UK-V3	BS1363 UK power supply version, for Pb battery charger.	Consult	View
AUS-V3	Version with AU charger.	Consult	View
US-V3	Version with US charger.	Consult	View

TPWI-LK Logistics Series Stainless AISI 304 Pallet Truck Scale

TPWI-LK Logistics Series Pallet Truck Scale Specifications

Available Versions

Resources / Downloads

Articles

Parts

Available Versions

Options

International power plugs

Calibration service (ACCREDIA/DAKKS) only at time of order

Parking brake

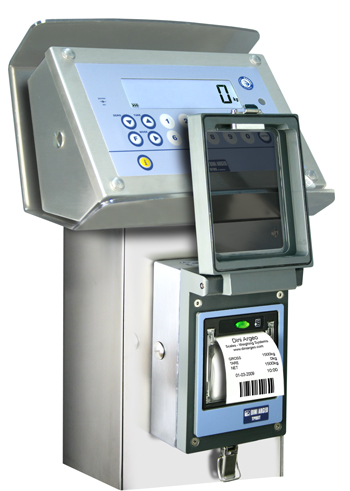

Printers/Labellers

Date & Time option

Communication Interfaces

Storing the weighs

Optional steering wheels

Expendable materials

Accessories for cleaning

Other options

Part #	Description	List Price	Cart / Quote
RF2G4	Built-in 2.4 GHz radiofrequency module. Max. functioning distance in appropriate environmental and installation conditions: 45m indoors, 140m outdoors. Up to 39 configurable channels. (RF2G4 must be combined with another radio module).	Consult	View
OBRF2G4-USB	External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels.	Consult	View
WIFITPWLK-1	Built-in WI-FI interface. For wireless connection (through access point) to the company computer system.	Consult	View
BLTH-3	Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems.	Consult	View
ALMEM-1	Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels (if applicable).	Consult	View

Part #	Description	List Price	Cart / Quote
SWM	"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).	Consult	View
USBC-1	Built-in USB port kit for data storing on USB key. Fitted with USB key for PC.	Consult	View
USBK	Set of 5 USB keys for recording the weighs.	Consult	View

Part #	Description	List Price	Cart / Quote
RPT57C	50 thermal paper rolls 30m long, 57mm wide. 12mm hole. 51mm external diameter.	Consult	View
RPT57AC	50 adhesive thermal paper rolls 15m long, 57mm wide. 18mm hole. 50mm external diameter.	Consult	View
LNLESS	72 rolls of Linerless thermal sticker paper 20m long, 56,5mm wide. 48,5mm outer diameter. 12mm diameter central hole.	Consult	View

Part #	Description	List Price	Cart / Quote
TECSUP	Technical assistance by telephone upon request.	Consult	View
TECMAN	Printed technical manual (Free download from the website).	Consult	View
UMAN	Printed user manual (Free download from the website).	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Consult	View
