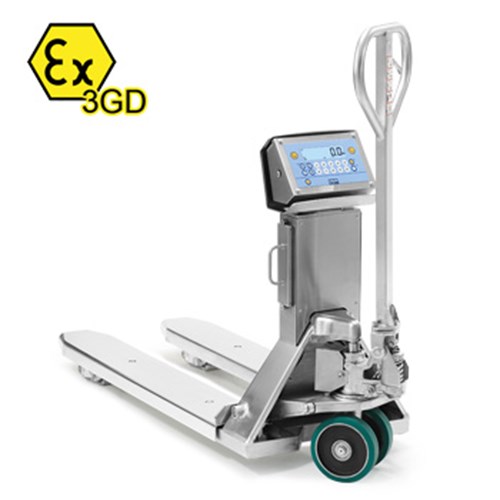

TPWI-PRO Series EX 3GD ATEX Stainless Steel Pallet Truck Scale Zone 2/22

AISI 304 stainless steel pallet truck scale for use in ATEX hazardous areas 2 & 22, with Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115C° Dc X protection. Also available in approved version for legal-for-trade use.
Made, calibrated and adjusted in Italy by Dini Argeo, using certified sample weights.

WEIGHING FEATURES

  • Maximum lifting capacity: 2.000 kg; special capacities on request, up to 3.000 kg.
  • Resolution:
    > internal use: 0,2 / 0,5 kg
    > approved: 0,5 / 1 kg
  • Accuracy (weighing of goods on Europallet with distributed load):
    > internal use: +/- 1 kg
    > approved: according to CE certification (Directive 2014/31/EU)
  • Calibration and Set-Up parameters configurable from keyboard or PC.
Request More Information
TPWI EX 3GD

WHY CHOOSE TPWI–PRO serie EX 3GD

TECHNICAL FEATURES

  • Low-profile forks, only 85 mm.
  • Fork dimensions 1150 x 550 x 85 mm.
  • Lifting range: from 85 to 205 mm.
  • Pallet truck weight: 135 kg approx.
  • Supporting structure made entirely of extra-thick AISI 304 stainless steel.
  • Forks in AISI 304 stainless steel.
  • Closed fork covers for increased protection of the double load wheels.
  • Antistatic guide wheels, with polyurethane coating for smooth running. 200 mm diameter ensures optimum smoothness and manoeuvrability.
  • Antistatic loading rollers.

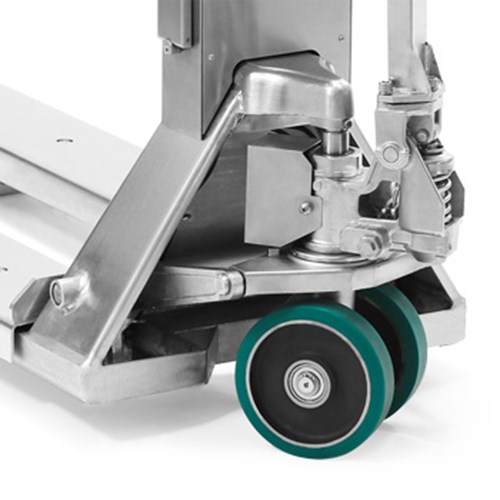

  • Lifting pump in AISI 304 stainless steel allowing controlled lowering of the forks.

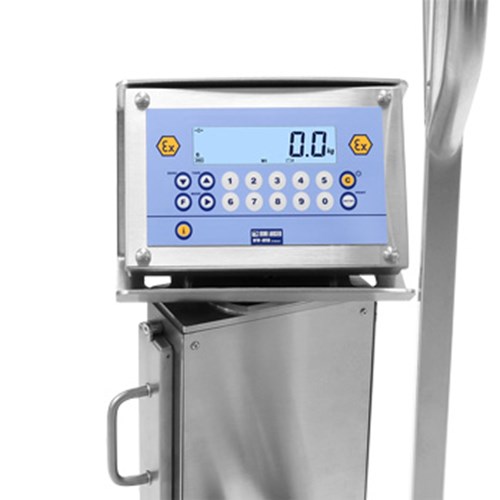

  • Waterproof membrane keyboard, with 17 numeric/functional keys.
  • Dini Argeo electronics, ATEX certified, intrinsically safe.
  • Standard 110/230Vac 50Hz battery charger with EU, UK, US and AU plugs (recharge time 8 hours).
  • Temperature range: -10° / +40° C

OTHER AVAILABLE VERSIONS

  • Other capacities / special resolutions: upon request.
  • Other special versions: upon request.

TAILORED SIZES FOR EVERY NEED

  • TPWI-PRO "EX" 3GD can be manufactured with special fork dimensions:
    - Lengths from 800 up to 2200 mm (up to 1800 mm in approved version)
    - Widths from 400 up to 900 mm (up to 680 mm in approved version)

The Easiest One to Recalibrate and Repair

  • The only one without junction box: the adjustment of each single load cell is conveniently carried out from the keyboard.
  • Spare parts and wearing parts always available and ready for delivery.
  • Specialized service centers throughout Italy.

MAIN FUNCTIONS

  • Zeroing, Tare, Printing (only in safe zone).
  • High resolution display x 10.
  • Net/Gross or lb/kg conversion.
  • Weights totalisation, Formulation.
  • +/- control.
  • Percentage weighing.
  • Counting (Max. counting resolution 1.500.000 divisions).
  • Set Point Control (with optional interface).




Code		 Max
(kg)		 d
(kg)
(kg)
TPWI-PRO-EX3GD 1000 / 2000 0,2 / 0,5 --
TPWIM-PRO-EX3GD  1000 / 2000 -- 0,5 / 1

Resources/Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|ATEX Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing Kits|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Platforms, Indicators and Accessories|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Mounting Kits|Hygienic Load Cells Articles
Increase Efficiency and Productivity with Dini Argeo Weighing Solutions Email Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Platforms, Indicators and Accessories|Pallet Truck Scales Articles
Inventory Weighing Solutions and Programmes Email All Weight Indicators and Trasnmitters|Bench Scales|Pallet Truck Scales|Floor Scales Articles
SOLAS: Solutions for Weighing Containers Email Axle Weighing Scales|Platforms, Indicators and Accessories|In-Motion Axle Scales|Dynamic Axle Weighing|All Crane Scales|Weighing Forks Articles

Parts

Available Versions

Part # Description List Price Cart/Quote
TPWI-PRO-EX3GD ATEX pallet truck scale (zone 2/22) and stainless steel structure, with 1000/2000 kg double range capacity, 0,2/0,5 kg division. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115°C Dc X protection. Fitted with manuals and conformity declaration (available in IT, EN, FR, DE).

Consult
TPWIM-PRO-EX3GD Approved ATEX pallet truck scale (zone 2/22) stainless steel structure, with 1000/2000 kg dual range capacity, 0,5/1 kg division. Multifunction weight indicator with stainless steel IP68 case, 17-key keypad and LCD display. Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115°C Dc X protection. Fitted with manuals and conformity declaration (available in IT, EN, FR, DE).

Consult

Options

Special Calibrations

Part # Description List Price Cart/Quote
FS1500M2R Double range capacity option of 600/1.500 kg for CE-M approved pallet truck scales, with resolution of 0,2/0,5 kg and CE approved accuracy, in accordance with Directive 2014/31/EU.

Consult
FS1500M Single range capacity option of 1.500 kg for CE-M approved pallet truck scales, with resolution of 0,5 kg and CE approved accuracy, in accordance with Directive 2014/31/EU

Consult
FS2500M Double range high capacity option of 1.500/2.500 kg for CE-M approved pallet truck scales, with a resolution of 0,5/1 kg and CE approved accuracy, in accordance with Directive 2014/31/EU

Consult
FS2500 Single range high capacity option of 2.500 kg, keeping standard resolution. Accuracy as standard up to 2.000 kg; ±2 kg from 2.000 kg up to 2.500 kg.

Consult

Calibration Service (ACCREDIA/DAKKS) Only at Time of Order

Parking brake

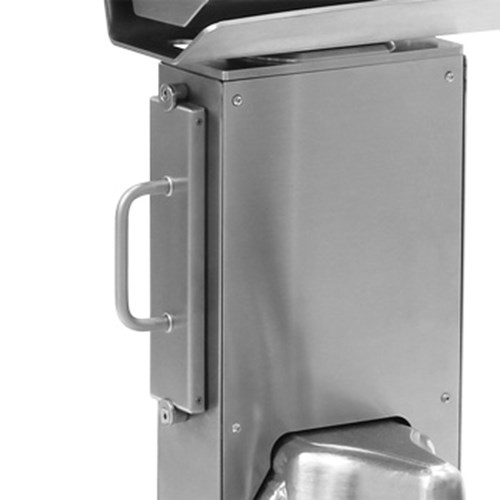

Extractable additional battery

Stainless Steel Kit for Orientable Head

Communication Interfaces

Digital Input / Output

Accessories for Cleaning

Other Options
