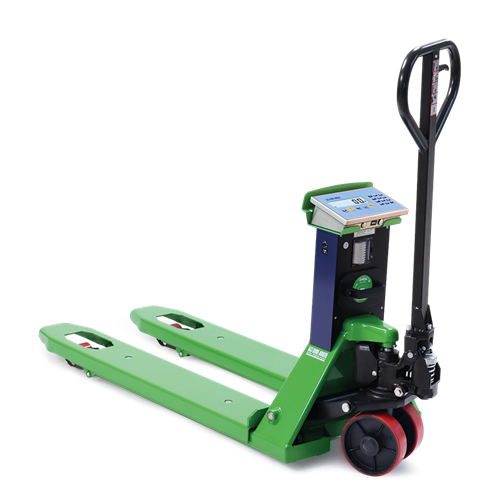

Professional pallet truck scale, ideal to obtain the maximum weighing resolution. Available in approved version for legal-for-trade use and with printer, for tracing the weighing operations. Manufactured, calibrated and adjusted in Italy by Dini Argeo, with the use of certified sample weights.
WEIGHING FEATURES
Maximum lifting capacity: 2,000 kg.
Resolution: > internal use: 0,2 kg > approved: 0,5 / 1 kg
Accuracy (weighing of goods on Europallet with distributed load): > internal use: +/- 0,5 kg > approved: according to CE certification (Directive 2014/31/EU)
Configuration, calibration and diagnostics from keyboard or PC with DINITOOLS.
Other capacities / special resolutions: upon request
Other special versions: upon request
Main Functions

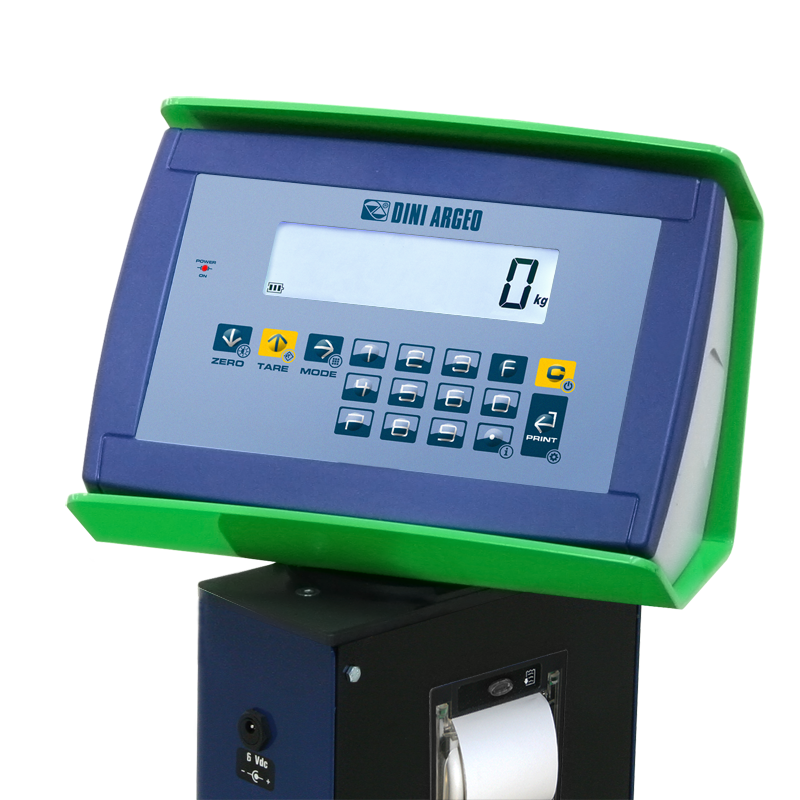

The user can select the operating modes directly using the dedicated key*: - High resolution display x 10 - Precision weighing with temporary recalibration via a sample weight (for internal factory use) - Net/Gross - Lb to Kg converter - Free conversion factor (for meter and litre counters etc.) - Weight totalizer - Formulizer - +/- controller with quick target and threshold input - Percentage weighing - Percentage batching with programmable target - Piece counter - Alibi memory (optional)
Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.
* These quick access keys to the menus can be blocked by configuring a dedicated password.
Single range capacity option of 600 kg for CE-M approved pallet truck scales, with resolution of 0,2 kg and CE approved accuracy, in accordance with Directive 2014/31/EU.
Double range capacity option of 600/1.500 kg for CE-M approved pallet truck scales, with resolution of 0,2/0,5 kg and CE approved accuracy, in accordance with Directive 2014/31/EU.
Single range capacity option of 1.500 kg for CE-M approved pallet truck scales, with resolution of 0,5 kg and CE approved accuracy, in accordance with Directive 2014/31/EU
Double range high capacity option of 1.500/2.500 kg for CE-M approved pallet truck scales, with a resolution of 0,5/1 kg and CE approved accuracy, in accordance with Directive 2014/31/EU
ISO 17025 calibration certificate from 1501 to 3000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.
Parking brake system with command pedal for wide fork version (TPWWF-1), mounted on steering wheels. Please note: This brake is not compatible with the accessory wheels for this product.
"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).
Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels (if applicable).
Built-in 2.4 GHz radiofrequency module. Max. functioning distance in appropriate environmental and installation conditions: 45m indoors, 140m outdoors. Up to 39 configurable channels. (RF2G4 must be combined with another radio module).
Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners.
Attention: this interface is not suitable for Master-Slave systems.

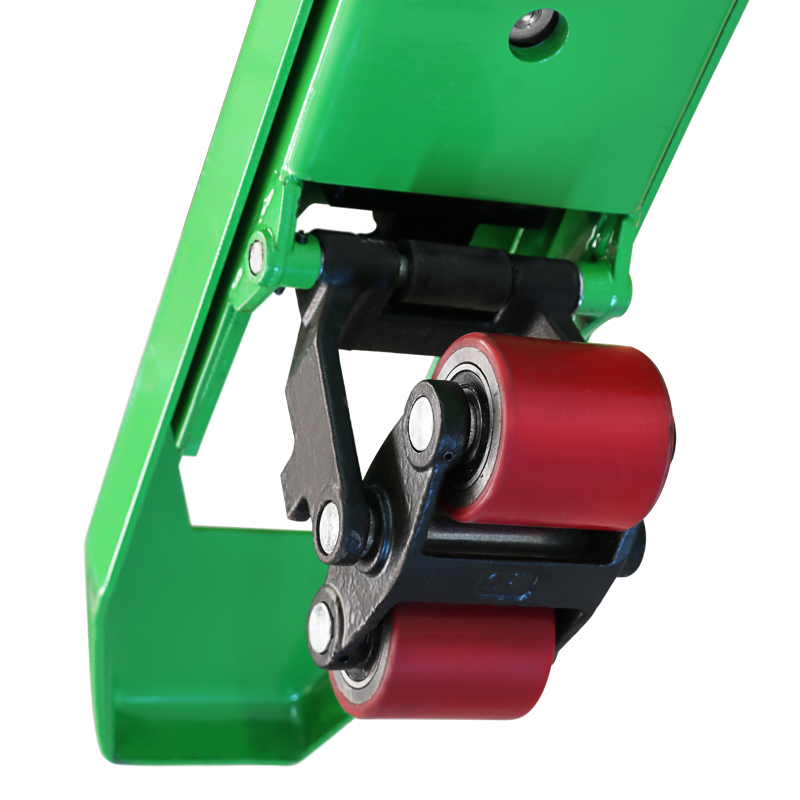

Set of vulkollan steering wheels (nonstainable). Compatible with both wide and standard forks. Please note: when combined with wide forks, the guide wheels do not allow the TPWFRE-1 parking brake to be fitted.
Set of nylon steering wheels. Compatible with both wide and standard forks. Please note: when combined with wide forks, the guide wheels do not allow the TPWFRE-1 parking brake to be fitted.
