Product PDF

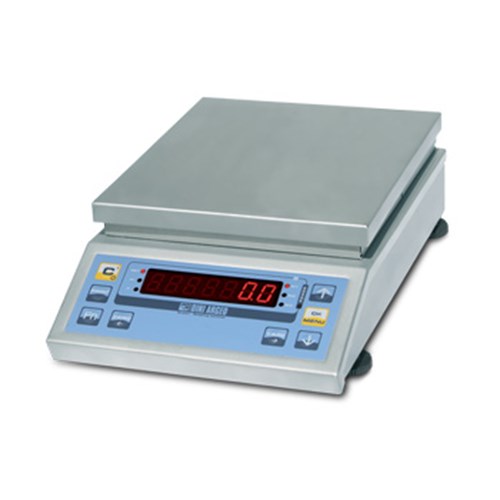

TRD IP65 Stainless Steel Precision Scales Series

  • LED display: 7 bright red segments with 7 digits, 15 mm high, for viewing the weight and 6 LEDs for showing the active functions
  • Waterproof keypad with 8 functional keys
  • Stainless steel structure
  • Stainless steel plate, 190x220mm size
  • Functions with aluminium "single point" load cell, with anticorrosive treatments
  • Protection from dust and water splashes according to IP65 standards
  • Adjustable feet and level
  • Digital calibration & set-up configurable from keyboard
  • 12 Vdc power supply with an external 230 Vac power adapter
Request More Information
TRD

High resolution IP65 stainless steel balances for industrial and laboratory use. Particularly suitable where there are strict hygiene requirements. The dual range models have a higher accuracy on the lower part of the range. CE-M APPROVED also available.

DIVISION (g): from 0.1 to 1. CAPACITY (g): from 2000 to 12000.

Selectable Functions:

  • Counting
  • Totalisation / Formulation with management of 3 zeroable and printable totals independent from each other (partial total, general total, grand total).
  • +/- Tolerance check
  • Percentage Weigh
  • Programmable Set point available for all the functioning modes.

Keypad Functions:

  • Zero, Tare, Print, Mode, On-Off/Clear and 3 navigation keys

I/O Section:

  • RS232/C or TTL bidirectional output for connection to printer or remote display.
  • Bi-directional RS232/C or RS485 configurable output for PC, PLC and additional remote display.

Options Only Available at Time of Order:

  • Internal rechargeable battery
  • I/O expansion with 2 inputs and 2 relay outputs (upon price estimate)
  • Time/Date or Alibi memory with Time/Date

Code Class Plate Max (mm) Max (g) d (g) M (g*) M
2R (g)*		 Linearity (g) +/-
TRD6500  -- 190x220 mm 6.500 0,1 -- 0,15 0,1
TRD10K2  -- 190x220 mm 2.000/10.000 0,1/1 -- 0,2/1 0,1/1
TRD6DM  III 190x220 mm 3.000/6.000 -- 0,5/1 -- 0,5/1
TRD12DM  III 190x220 mm 6.000/12.000 -- 1/2 -- 1/2

(*) Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.

Parts

Available Versions

Part # Description List Price Cart / Quote
TRD6500 Precision scale with 6,5 kg capacity, 0,1 g division, stainless steel loading surface 190x220 mm, h= 95 mm, stainless steel structure. Multinfunction weight indicator, with stainless steel IP65 case, 8-key keypad and LED display.

Consult
TRD10K2 Precision scale with 2/10 kg dual range capacity, 0,1/1 g division, stainless steel loading surface 190x220 mm, h= 95 mm, stainless steel structure. Multinfunction weight indicator, with stainless steel IP65 case, 8-key keypad and LED display.

Consult
TRD6DM Precision scale approved, with 3/6 kg dual range capacity, 0,5/1 g division, stainless steel loading surface 190x220 mm, h= 95 mm, stainless steel structure. Multinfunction weight indicator, with stainless steel IP65 case, 8-key keypad and LED display.

Consult
TRD12DM Precision scale approved, with 6/12 kg dual range capacity, 1/2 g division, stainless steel loading surface 190x220 mm, h= 95 mm, stainless steel structure. Multinfunction weight indicator, with stainless steel IP65 case, 8-key keypad and LED display.

Consult

Options

Calibration service with Dini Argeo indicator (only at time of order)

Part # Description List Price Cart / Quote
CT4 ISO 17025 calibration certificate from 6 to 60 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.

Consult

Options only available at time of order

Accessories
