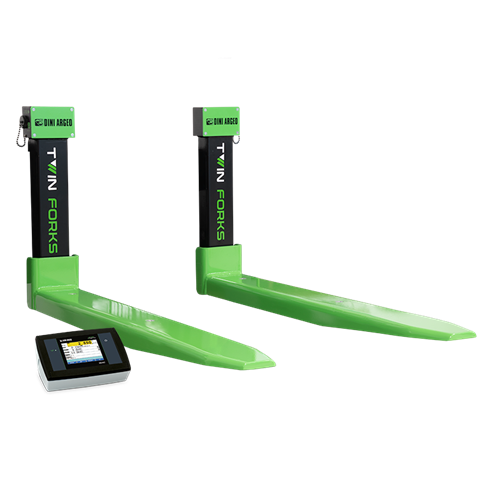

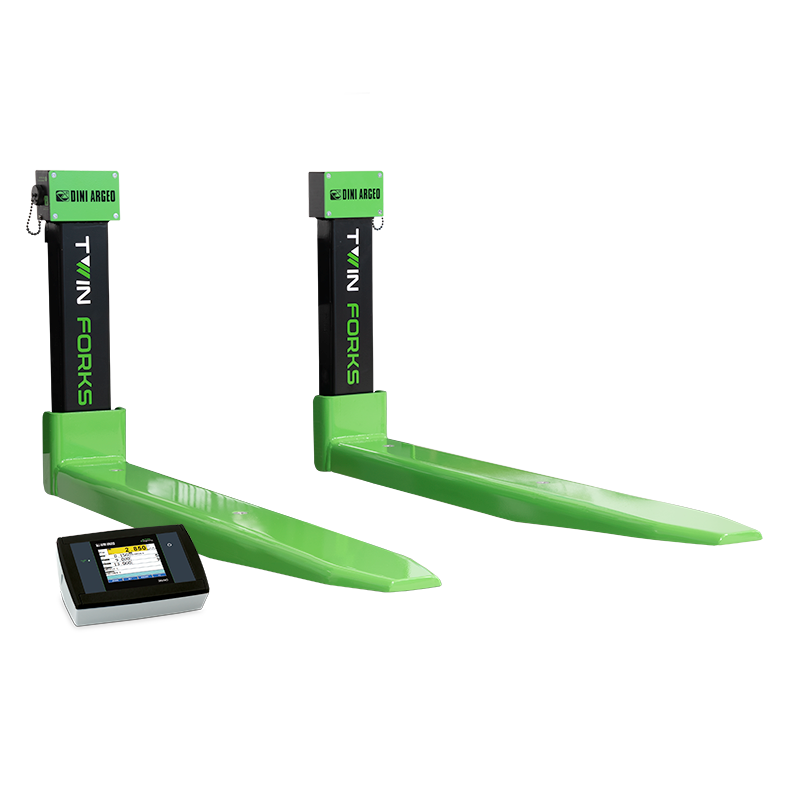

Twin Forks Compact LTF Series Weighing Forks

New weighing forks for forklifts complete with COMPACT indicator to read the weight directly from the cabin.
The 5.0 Bluetooth technology with low consumption and rechargeable lithium-ion battery power ensure a long working life. Particularly robust, made entirely of steel to withstand the time. Available in approved version for legal-for-trade use.

WEIGHING FEATURES

  • Version LTF2500
    • Maximum lifting capacity: 2500 kg
    • Resolution:
      - for internal use: 1/2 kg
      - CE approved: 2/5 kg
    • Accuracy:
      - for internal use: +/- 2 kg
      - CE approved: Directive 2014/31/EU.
    • Operating temperature:
      - -10°...+50° for internal use
      - -10°...+40° approved
  • Version LTF5000
    • Maximum lifting capacity: 5000 kg
    • Resolution:
      - for internal use: 2/5/10 kg
      - CE approved: 5/10 kg
    • Accuracy:
      - for internal use: +/- 5 kg
      - CE approved: Directive 2014/31/EU.
    • Operating temperature:
      - -10°...+50° for internal use
      - -10°...+40° approved
Request More Information
Twin Forks

WHY CHOOSE DINI ARGEO TWIN FORKS "COMPACT"

WEIGHING FORKS FEATURES

  • Painted steel structure.
  • Weight of each fork: 115 kg approx.
  • Length: 1162 mm.
  • Protection rate: IP66.
  • Operation with 4 Dini Argeo stainless steel load cells, IP68, low consumption. Capacity of each load cell: 3.000 kg.
  • Max. admissible overload: 300% of the nominal capacity.
  • Max horizontal inclination (tilting): +/- 2° (for legal for trade use only).

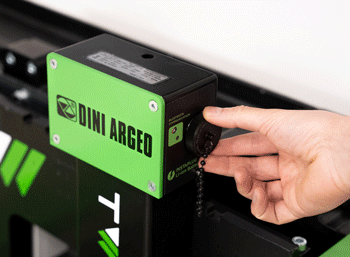

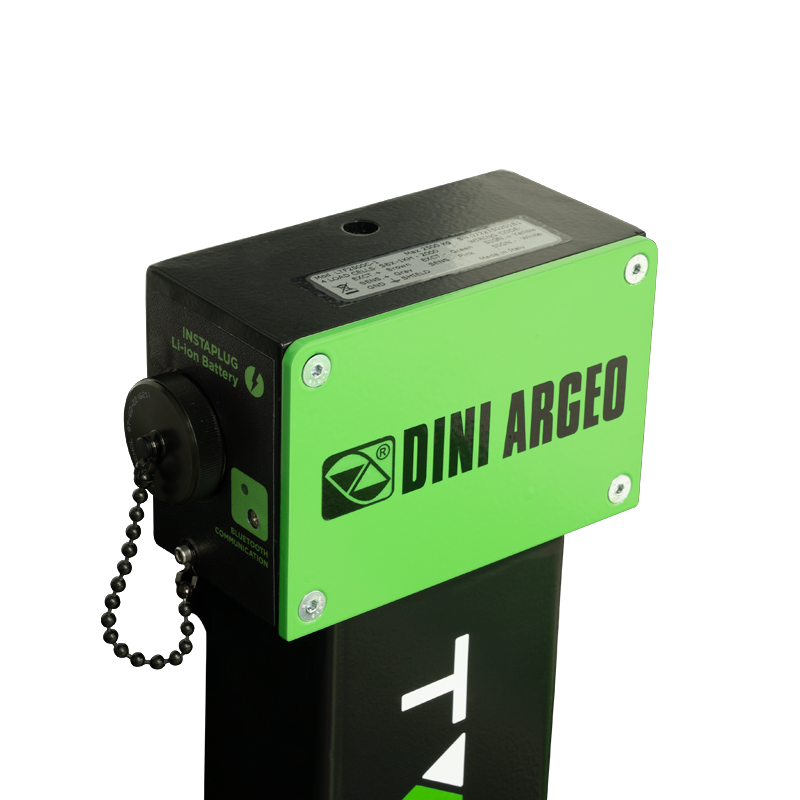

  • Fork power supply through a rechargeable lithium battery with Instaplug technology and an autonomy of up to about 90 hours, or continuous use through additional batteries (optional, INSTAPLUGLKC code). Charger with EU, UK, US plug included as standard.
  • Available in CE-M approved version (they need the relative ECEMLTF option).

SPECIAL VERSIONS

  • Available upon request:
    - Version for FEM2B plate



COMPACT WEIGHT INDICATOR FEATURES

  • Weight indicator in ABS with backlit LCD 25mm display with 6 high contrast digits and icons for showing the active functions.
  • Fitted with fixing bracket for mounting in the cabin.
  • Functional waterproof keypad with 5 keys.
  • Easy to clean ABS IP68 enclosure, resistant to harsh and corrosive environments.
  • Visual and audible overload indication.
  • Auto-off (energy saving): 5 minutes adjustable or deactivable.
  • Power supply directly from the forklift (optional power supply available)

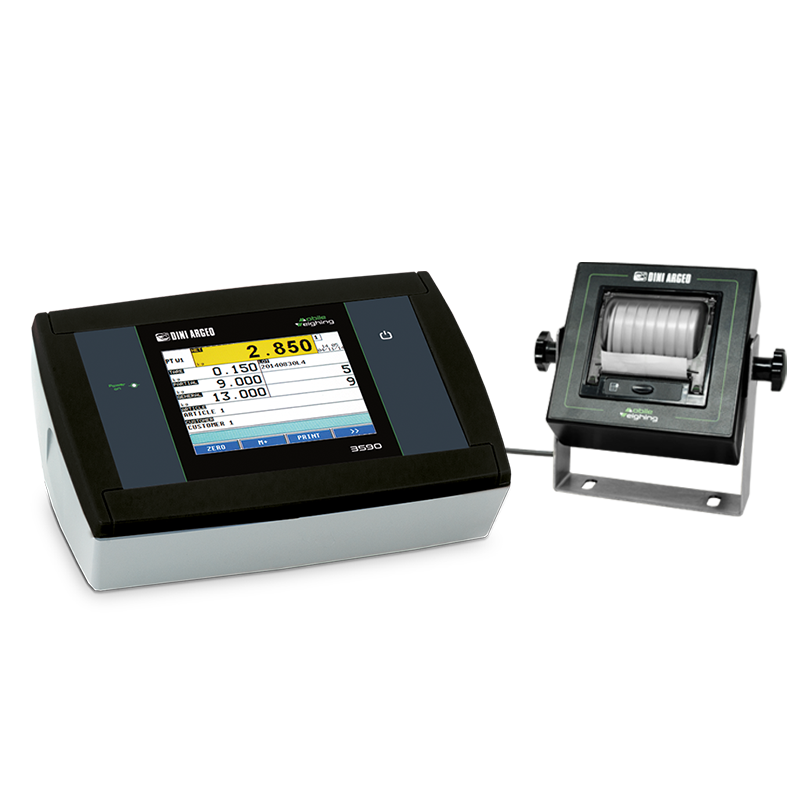

  • Optional printer complete with fixing bracket for mounting in the cabin.

PACKAGE INCLUDED IN THE PRICE

  • For complete protection against shocks and scratches during transport, the weighing forks are shipped in a sturdy custom-made wooden crate.This specific service is included in the price of the product.

 INDICATOR FUNCTIONS

  • From keypad:
    • Backlight adjustment- Diagnostics
    • Forks on/off
    • Auto power off
    • Zeroing
    • Semi-automatic tare
    • Presettable tare
    • Printing
    • Selectable function command
    • Quick manual tare insertion
    • Fork calibration.
  • Operation modes:
      • Operation modes selectable directly by the user, via dedicated key:
      - Net/Gross
      - lb/kg conversion
      - Free conversion factor (for meter-counting, litre-counting systems, etc)
      - Weight totalisation
      - +/- control, with quick insertion of targets and thresholds



Code Plate  Max (kg) d (kg) M (kg*)
LTF2500C-1 FEM2A 1000 / 2500 1 / 2 2 / 5
LTF5000C-1 FEM3A 1000 / 2500 / 5000 2 / 5 / 10 5 / 10

Resources / Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells Articles
SOLAS: Solutions for Weighing Containers Email Axle Weighing Scales|Weighing Axle Platforms and Indicators|In-Motion Axle Scales|Dynamic Axle Weighing|Crane Scales|Weighing Forks Articles

Parts

Available Versions

Part # Description List Price Cart / Quote
LTF2500C-1 Bluetooth weighing forks for forklift with FEM2A plate, 1000/2500kg capacity, 1/2 kg division, painted steel structure. Complete with ABS COMPACT indicator for weight reading directly from the cabin.

Consult
LTF5000C-1 Bluetooth weighing forks for forklift with FEM3A plate, 1000/2500/5000kg capacity, 2/5/10 kg division, painted steel structure. Complete with ABS COMPACT indicator for weight reading directly from the cabin.

Consult

Options

Power supply

Part # Description List Price Cart / Quote
AL918V5 Power adapter for the indicator in cabin (mounting not included). From 9 to 18 Vdc input (directly from the lift truck), 5 Vdc 6A output for the indicator (max 30W).

Consult
AL1872V5 Power adapter for the indicator in cabin (mounting not included). From 18 to 72 Vdc input (directly from the lift truck), 5Vdc 6A output for the indicator (max 30W).

Consult
AL40160V5 Power adapter for the indicator in cabin (mounting not included). From 40 to 160 Vdc input (directly from the lift truck), 5Vdc 6A output for the indicator (max 30W).

Consult

Approval for sale to third parties

Printers/Labellers

Extractable additional battery

Optional fixing bracket for indicator

Version for FEM2B fork holder plate

Expendable materials

Calibration service (ACCREDIA/DAKKS) only at time of order

Other options
