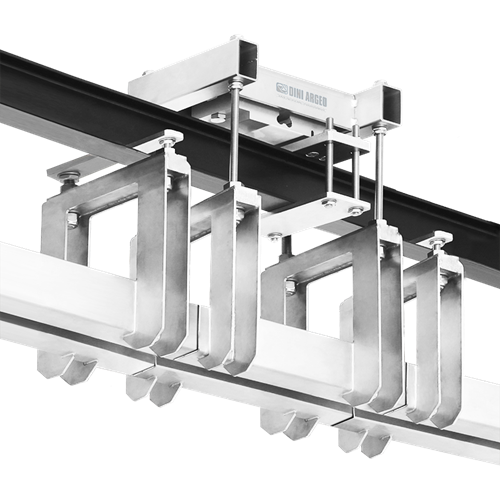

TWL Series Overhead Monorail Weighing Scales
- It operates with 1 aluminum load cell with IP66 protection rating, approved according to OIML R60 C3
- AISI 304 stainless steel structure, fitted with accessories for fastening to the beam and threaded rods for fastening to the customer's track section
- Electropolished structure for easy cleaning: the smooth surface helps reduce dirt accumulation and the proliferation of microorganisms
- Maximum length of the overhead rail weighing section: 300 mm
- Up to 15 VDC power supply
- 6-wire shielded cable, 3m long, 5mm diameter
Options Available Only at Time of Order:
- Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval (with our indicator)
- Models with special sizes and capacities (ask for estimate)
- Possible adaptations with customer’s track section (to be supplied per account of manufacture), which will be quantified upon job card cost account
- Stainless steel load cell
Weighing modules for overhead monorails, easily adaptable with any type of handling system, even existing ones. Fitted with OIML approved load cell.
Available Versions
| Code | l x w x h (mm) | Nr. of cells | Max (kg) | d (g) | M (g*) | M 2R (g)* |
|---|---|---|---|---|---|---|
TWL15  |
310x200x125 | 1x300kg | 150 | 50 | 50 | 20-50 |
| TWL30 |
310x200x125 | 1x500kg | 300 | 100 | 100 | 50-100 |
(*) Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.
NOTE:
- The track section to be applied to the scale and relative fastening to the threaded rods must be realized by the customer.
- ATTENTION: The order is possible only upon verification of the system's data, executed by our technicians when the filled out DataRequest_TWL_ENG module downloadable up here is sent.
- The capacity and division must be specified in the module for the verification of the feasibility, consequently to the requested features.
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
TWL15 | Overhead monorail weighing module with 150 kg capacity, 50 g division, electropolished stainless steel loading surface 310x200x125 mm, maximum length of the overhead rail weighing section: 300 mm. |
Consult |
|
|
|
TWL30 | Overhead monorail weighing module with 300 kg capacity, 100 g division, electropolished stainless steel loading surface 310x200x125 mm, maximum length of the overhead rail weighing section: 300 mm. |
Consult |
Options
Calibration service with weight indicator
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
DINICAL | Connection to a Dini Argeo indicator and calibration. NET PRICE (*). |
Consult |
|
|
|
DINICAL-DRC | Connection to a Dini Argeo indicator and calibration. NET PRICE. |
Consult |
Legal for trade approval , class III or IIII, with Dini Argeo indicator (only at time of order)
Accessories
Protection for junction box/ electronic circuits
Calibration service with Dini Argeo indicator (only at time of order)
IP68 protection
Related Products

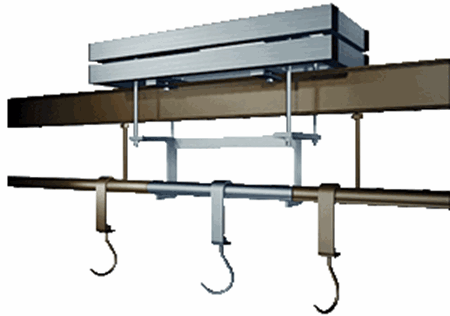

TW Series Overhead Monorail Weighing Scales
Low profile weighing modules for overhead monorails, easily adaptable with any type of monorail track systems, even already existing ones. Fitted approved load cells.

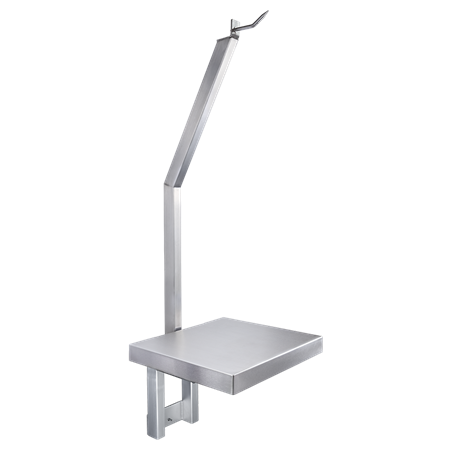

CW Stainless Steel Series Wall Quarter-Weighing Modules
Stainless steel weighing modules suitable both for weighing hanging quarters and for weighing on a reclining platform. Standard version is with approved load cell.

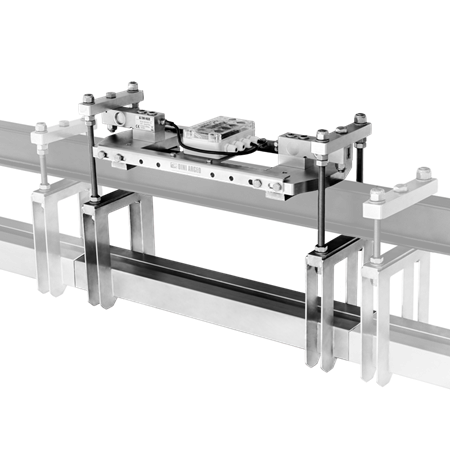

TWG Series Overhead Rail Scales
