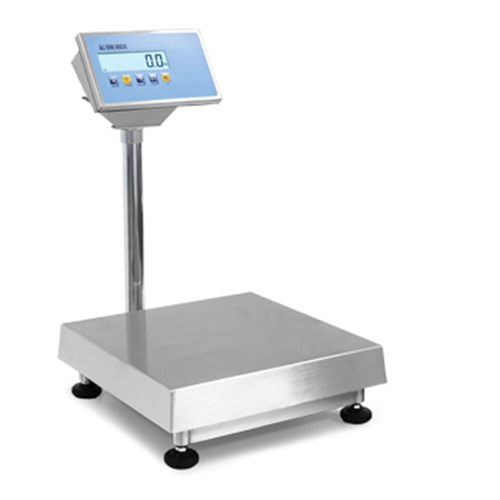

WALL-E INOX Series Stainless Steel Bench and Floor Scales

  • Weight indicator with waterproof IP65 stainless steel case. Backlit 25mm LCD display with 6 high contrast digits and icons for indication of active functions. Waterproof 5-key functional keypad.
  • Functions with an aluminium load cell, protected in IP65 stainless steel cover, approved according to OIML R60 C3 standards (3000 divisions).
  • Stainless steel structure, with adjustable resting feet and level.
  • Stainless steel loading surface, size: see the table.
  • Support column, height:
    • 350 mm in the "T" models;
    • 500 mm in the "Q" models;
    • 700 mm in the "X" models.
  • Length of connection cable to the indicator: 3m.
  • Digital calibration and set-up from keypad or from PC with DINITOOLS.
  • Power supply: 110 - 240 VAC power supplier.
Request More Information
Wall E INOX

Bench and floor scales with column, characterized by multifunction weight indicator, completely stainless steel structure. Easy to use and versatile, guaranteeing precision and reliability. Particularly suitable for industrial and commercial use. Available also in CE-M approved version according to OIML R-76 / EN 45501 standards.

I/O Section:
- RS232/C port configurable for connection with printer/labeller, or for attached printer.

- RS232/C (or optionally RS485) bi-directional port configurable for PC, PLC, remote display, and radio modem.
Quick RJ RS232 plug connection.

Keyboard Functions:
Zeroing, Automatic tare, Preset tare, printing and/or data transmission, selectable function command, on/off switching, backlit setting, function mode quick selection, user menu.

Options When Ordering:
- CE-M 3000e approved (OIML R-76 / EN 45501).

Selectable Function Modes:
- High resolution display x 10
- Precision weighing with temporary recalibration via a sample weight (for internal factory use)
- Net/Gross
- Newton to Kg converter
- Lb to Kg converter
- Free conversion factor (for meter and litre counters etc.)
Weight totalizer
- Formulizer
- +/- controller with quick target and threshold input
- Percentage weighing
- Percentage batching with programmable target
- Piece counter
- Hold

Optional functions:
- PEAK, detection of weight peaks (code DFWPK)
- Newton to Kg converter (code DFWPK)

Accessing User Menu:
Use the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.

* These quick access keys to the menus can be blocked by configuring a dedicated password.





Code l x w x h (mm) Max (kg) d (g) M (g*)
WETI6-2 300x300x130 6 2 -
WETI15-2 300x300x130 15 5 5
WETI30-2 300x300x130 30 10 10
WEQI30-2 400x400x140 30 10 10
WEQI60-2 400x400x140 60 20 20
WEQI150-2 400x400x140 150 50 50
WEXI60-2 600x600x165 60 20 20
WEXI150-2 600x600x165 150 50 50
WEXI300-2 600x600x165 300 100 100

(*) These divisions are obtainable only with the relative options.

Resources / Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells Articles
How to Choose a Bench Scale Email Bench Scales Articles

Parts

Available versions

Part # Description List Price Cart / Quote
WETI6-2 Bench and floor scale with 6 kg capacity, 2 g division, stainless steel structure and loading surface, 300x300 mm size, backlit LCD display, membrane waterproof keyboard and indicator support column, 350 mm height.

Consult
WETI15-2 Bench and floor scale with 15 kg capacity, 5 g division, stainless steel structure and loading surface, 300x300 mm size, backlit LCD display, membrane waterproof keyboard and indicator support column, 350 mm height.

Consult
WETI30-2 Bench and floor scale with 30 kg capacity, 10 g division, stainless steel structure and loading surface, 300x300 mm size, backlit LCD display, membrane waterproof keyboard and indicator support column, 130 mm height.

Consult
WEQI30-2 Bench and floor scale with 30 kg capacity, 10 g division, stainless steel structure and loading surface, 400x400 mm size, backlit LCD display, membrane waterproof keyboard and indicator support column, 500 mm height.

Consult
WEQI60-2 Bench and floor scale with 60 kg capacity, 20 g division, stainless steel structure and loading surface, 400x400 mm size, backlit LCD display, membrane waterproof keyboard and indicator support column, 500 mm height.

Consult
WEQI150-2 Bench and floor scale with 150 kg capacity, 50 g division, stainless steel structure and loading surface, 400x400 mm size, backlit LCD display, membrane waterproof keyboard and indicator support column, 500 mm height.

Consult
WEXI60-2 Bench and floor scale with 60 kg capacity, 20 g division, stainless steel structure and loading surface, 600x600 mm size, backlit LCD display, membrane waterproof keyboard and indicator support column, 700 mm height.

Consult
WEXI150-2 Bench and floor scale with 150 kg capacity, 50 g division, stainless steel structure and loading surface, 600x600 mm size, backlit LCD display, membrane waterproof keyboard and indicator support column, 700 mm height.

Consult
WEXI300-2 Bench and floor scale with 300 kg capacity, 100 g division, stainless steel structure and loading surface, 600x600 mm size, backlit LCD display, membrane waterproof keyboard and indicator support column, 700 mm height.

Consult

Options

International power cables

Part # Description List Price Cart / Quote
PWCORDAUS Version with AU power cord.

Consult
PWCORDUK Power supply cord with BS1363 plug (UK plug).

Consult
PWCORDCH Power supply cord with SEV1011 plug (CH plug).

Consult
PWCORDUS Version with US type B power cord (Japan, North and Central America).

Consult

Calibration service (ACCREDIA/DAKKS) only at time of order

Legal for trade approval

Storing the weighs (only at time of order)

Connection cables

Columns, supports brackets, visors
