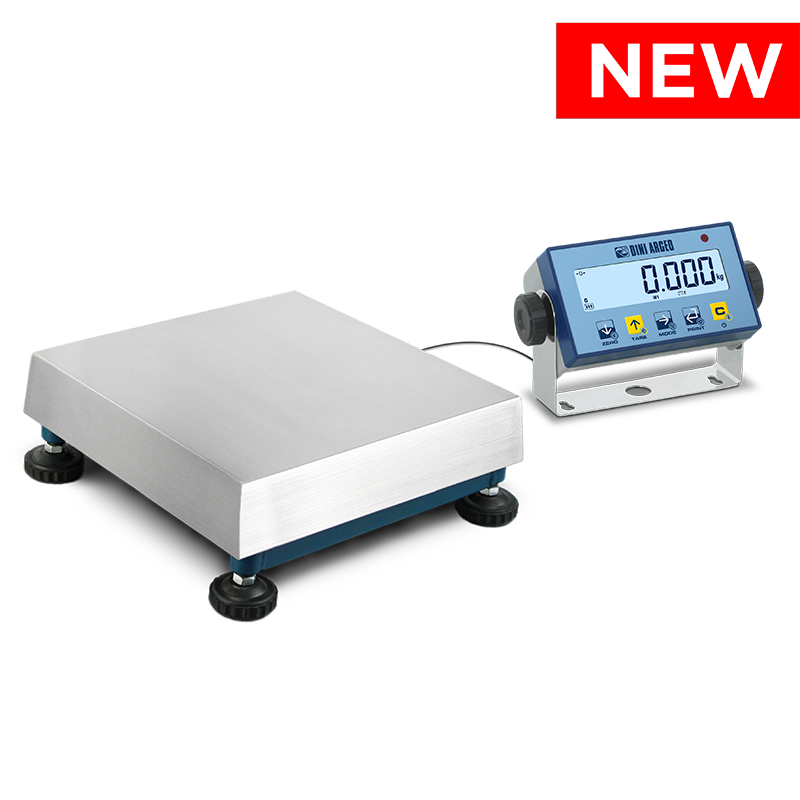

WALL-E Series Bench and Floor Scales

  • Weight indicator with ABS case, 25mm backlit LCD display with 6 high contrast digits and icons for showing the active functions. 5-key functional waterproof keypad, with indication for quick access to main functions and regulations.
  • Functioning with an aluminium load cell, 3000d approved with IP65 protection rating.
  • Steel tubular structure, oven-fire painted blue, with adjustable resting feet and level.
  • Stainless steel loading surface, size: see the table.
  • Fitted with fixing bracket with adjustable inclination and support column, height:
    • 350 mm in the "T" models;
    • 500 mm in the "Q" models;
    • 700 mm in the "X" and "E" models.
  • Length of connection cable to the indicator: 3m.
  • Digital calibration and Set-Up from keypad or from PC through DINITOOLS™.
  • Supplied as standard with 4 AA batteries extractable drawer (batteries not included), and 12V external power adapter (if connected it excludes the battery supply). EU, UK, US plugs included as standard.
  • Quick user guide available in 39 languages.
Request More Information
WALL E

Bench and floor scales, with column, characterized by multifunction weight indicator, sturdy structure and stainless steel loading plate. Easy to use and versatile, they guarantee precision and reliability. Particularly suitable for industrial and commercial use. Available also in CE-M approved version according to OIML R-76 / EN 45501 standards.

I/O Section:

- Two-way RS232/C port on RJ11 connector for connection to PC.

Options when Ordering:

- CE-M approval (OIML R-76 / EN 45501).

Selectable Function Modes:

The user can select the operating modes directly using the dedicated key*:
- High resolution display x 10
- Precision weighing with temporary recalibration via a sample weight (for internal factory use)
- Net/Gross
- Lb to Kg converter
- Free conversion factor (for meter and liter counters etc.)
- Weight totalizer
- Formulizer
- +/- controller with quick target and threshold input
- Percentage weighing
- Piece counter
Hold

The “alibi memory” function is available in combination with the required operating mode and it is activated automatically when installing the relevant optional board.

Optional Functions:
- PEAK, detection of weight peaks (code DFWPK)
- Newton to Kg converter (code DFWPK)

Accessing User Menu:
Use the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.

* These quick access keys to the menus can be blocked by configuring a dedicated password.





Code l x w x h (mm) Max (kg) d (g) M (g*)
WET6-1 300x300x130 6 2 2
WET15-1 300x300x130 15 5 5
WET30-1 300x300x130 30 10 10
WET30-1 400x400x140 30 10 10
WEQ60-1 400x400x140 60 20 20
WEQ150-1 400x400x140 150 50 50
WEX60-1 600x600x165 60 20 20
WEX150-1 600x600x165 150 50 50
WEX300-1 600x600x165 300 100 100
WEE300-1 800x800x165 300 100 100
WEE600-1 800X800X165 600 200 200

(*) These divisions are obtainable only with the relative options

Resources / Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells Articles
How to Choose a Bench Scale Email Bench Scales Articles

Parts

Available versions

Part # Description List Price Cart / Quote
WET6-1 Bench and floor scale with 6 kg capacity, 2 g division, 300x300 mm stainless steel loading surface, backlit LCD display, membrane waterproof keyboard and indicator support column, 350 mm height.

Consult

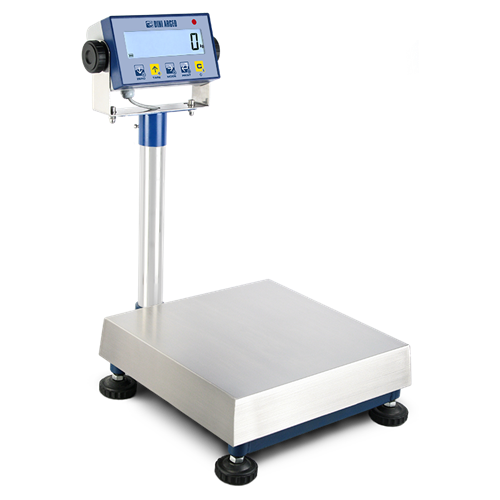

WET15-1 Bench and floor scale with 15 kg capacity, 5 g division, 300x300 mm stainless steel loading surface, backlit LCD display, membrane waterproof keyboard and indicator support column, 350 mm height.

Consult
WET30-1 Bench and floor scale with 30 kg capacity, 10 g division, 300x300 mm stainless steel loading surface, backlit LCD display, membrane waterproof keyboard and indicator support column, 350 mm height.

Consult
WEQ30-1 Bench and floor scale with 30 kg capacity, 10 g division, 400x400 mm stainless steel loading surface, backlit LCD display, membrane waterproof keyboard and indicator support column, 500 mm height.

Consult
WEQ60-1 Bench and floor scale with 60 kg capacity, 20 g division, 400x400 mm stainless steel loading surface, backlit LCD display, membrane waterproof keyboard and indicator support column, 500 mm height.

Consult
WEQ150-1 Bench and floor scale with 150 kg capacity, 50 g division, 400x400 mm stainless steel loading surface, backlit LCD display, membrane waterproof keyboard and indicator support column, 500 mm height.

Consult
WEX60-1 Bench and floor scale with 60 kg capacity, 20 g division, 600x600 mm stainless steel loading surface, backlit LCD display, membrane waterproof keyboard and indicator support column, 150 mm height.

Consult
WEX150-1 Bench and floor scale with 150 kg capacity, 50 g division, 600x600 mm stainless steel loading surface, backlit LCD display, membrane waterproof keyboard and indicator support column, 700 mm height.

Consult
WEX300-1 Bench and floor scale with 300 kg capacity, 100 g division, 600x600 mm stainless steel loading surface, backlit LCD display, membrane waterproof keyboard and indicator support column, 700 mm height.

Consult
WEE300-1 Bench and floor scale with 300 kg capacity, 100 g division, 800x800 mm stainless steel loading surface, backlit LCD display, membrane waterproof keyboard and indicator support column, 700 mm height.

Consult
WEE600-1 Bench and floor scale with 600 kg capacity, 200 g division, 800x800 mm stainless steel loading surface, backlit LCD display, membrane waterproof keyboard and indicator support column, 700 mm height.

Consult

Options

Calibration service (ACCREDIA/DAKKS) only at time of order

Part # Description List Price Cart / Quote
CT4 ISO 17025 calibration certificate from 6 to 60 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.

Consult
CT5 ISO 17025 calibration certificate from 61 to 300 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.

Consult
CT6 ISO 17025 calibration certificate from 301 to 1500 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.

Consult

Approval for sale to third parties

Storing the weighs

Connection cables

Columns, supports brackets, visors

Related Products

Wall E INOX

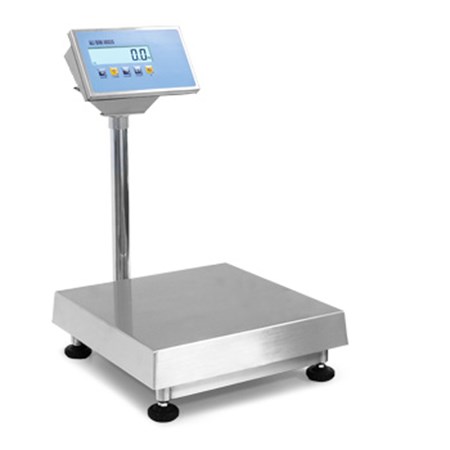

WALL-E INOX Series Stainless Steel Bench and Floor Scales
