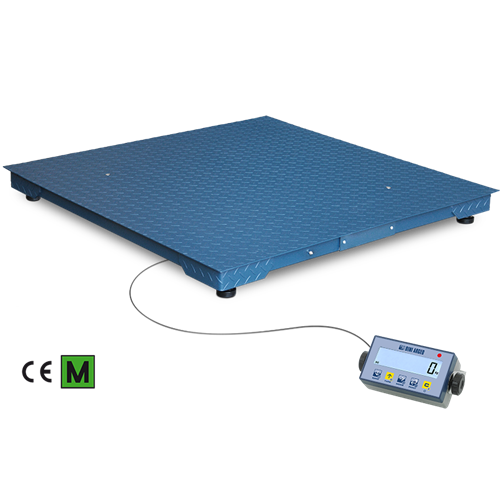

WEFL: WALL-E Floor Scale Series
- Weight indicator with ABS case, 25mm backlit LCD display with 6 high contrast digits and icons for showing the active functions. 5-key functional waterproof keypad.
- Fitted with fixing bracket with adjustable inclination.
- Functioning with 4 steel load cells, approved according to OIML R60 C3 standards, IP67 protection degree.
- Monobloc structure with oven-fire painted steel tubular, adjustable resting feet, and level.
- Protection reinforcements close to the load cells.
- Fixed load surface in chequered steel, size: see the table.
- Digital calibration and Set-Up from keypad or from PC through DINITOOLS.
- Cable 3m long for the connection between platform and indicator.
- Supplied as standard with 4 AA batteries extractable drawer (batteries not included), and 12V external power adapter (if connected it excludes the battery supply). EU, UK, US, AU plugs included as standard.
- Fitted with high resolution calibration for internal use, with 0.03% accuracy of the maximum capacity (activated as standard and disabled by menu).
Floor scales characterized by a multifunction, compact weight indicator and a sturdy, monobloc, steel platform. Particularly suitable for industrial and commercial use, guaranteeing precision and reliability. Available also in CE-M approved version according to OIML R-76 / EN 45501 standards.
WEFL: WALL-E Floor Scale Series Specifications
|
Selectable Function Modes: The user can select the operating modes directly using the dedicated key*: The “alibi memory” function is available in combination with the required operating mode and it is activated automatically when installing the relevant optional board. |
Optional Functions: Accessing User Menu: * These quick access keys to the menus can be blocked by configuring a dedicated password.
|
Available Versions
| Code | l x w x h (mm) | Nr. of cells | Max (kg) | d (kg) | M 2R (kg)* |
|---|---|---|---|---|---|
| WEFLB1500-2 | 1250x1250x120 | 4x1000kg | 600/1500 | 0,2/0,5 | 0,2/0,5 |
| WEFLD3000-2 | 1250x1500x120 | 4x2000kg | 1500/3000 | 0,5/1 | 0,5/1 |
| WEFLE3000-2 | 1500x1500x120 | 4x2000kg | 1500/3000 | 0,5/1 | 0,5/1 |
(*) These divisions are obtainable only with the relative options.
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
WEFLB1500-2 | Floor scale 1250x1250x120mm, Max=600/1500kg, d=0,2/0,5kg. Fitted with ABS weight indicator with backlit LCD display and 5-key keypad. |
Consult |
|
|
|
WEFLD3000-2 | Floor scale 1250x1500x120mm, Max=1500/3000kg, d=0,5/1kg. Fitted with ABS weight indicator with backlit LCD display and 5-key keypad. |
Consult |
|
|
|
WEFLE3000-2 | Floor scale 1500x1500x120mm, Max=1500/3000kg, d=0,5/1kg. Fitted with ABS weight indicator with backlit LCD display and 5-key keypad. |
Consult |
Options
Approval
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
ECEM2 | CE-M single platform legal for trade multi range approval. |
Consult |
|
|
ECEMDOC | Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _. |
Consult |

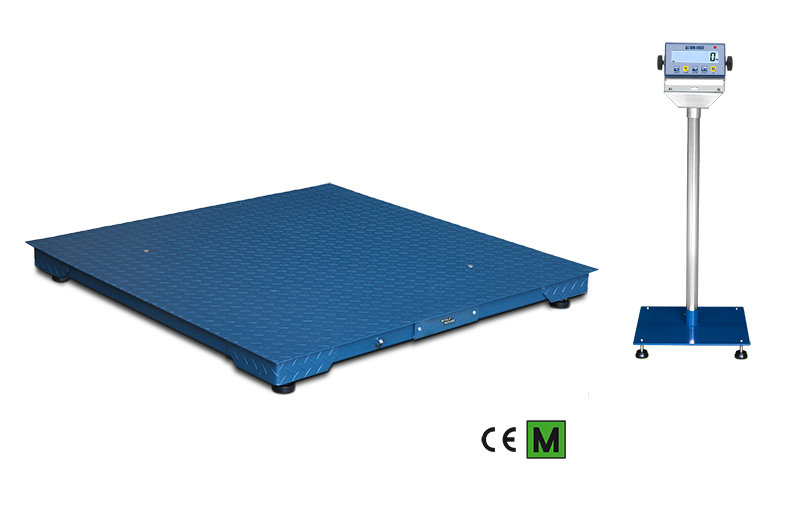

Columns, supports brackets, visors
Frame for flush floor installation
Calibration service (only at time of order)
Connection cables
Related Products

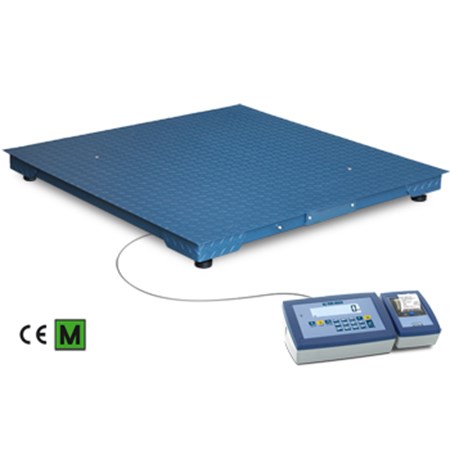

WEFLK: WALL-E Floor Scale Series with Integrated Printer
