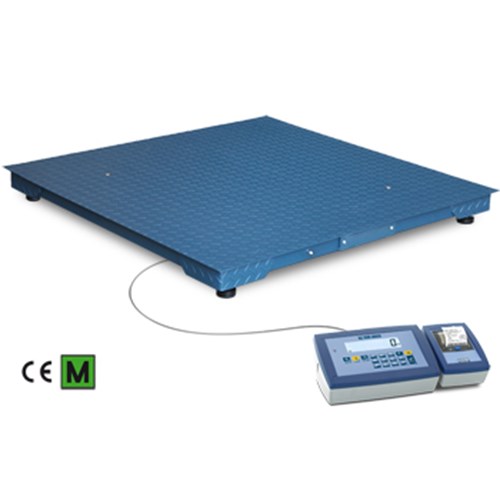

WEFLK: WALL-E Floor Scale Series with Integrated Printer

  • Weight indicator with ABS case, 25mm backlit LCD display with 6 high contrast digits and icons for showing the active functions.
  • 17-keys functional waterproof keypad.
  • Thermic integrated printer, to print on standard or adhesive paper.
  • Fitted with date and time.
  • Functioning with 4 steel load cells, approved according to OIML R60 C3 standards, IP67 protection degree.
  • Monobloc structure with oven-fire painted steel tubular, adjustable resting feet and level.
  • Protection reinforcements close to the load cells.
  • Fixed load surface in chequered steel. Size; see the table.
  • Digital calibration and Set-Up from keypad or from PC through DINITOOLS.
  • 3m long cable for the connection between platform and indicator.
  • Power supply: 230Vac, or through fitted rechargeable internal battery. Operating time; 40h aproximately.
  • Fitted with high resolution calibration for internal use, with 0.03% accuracy of the maximum capacity (activated as standard and disabled by menu).

Optional

  • Stainless steel column
Request More Information
WEFLK

Floor multifunctional scales, precise and reliable , composed of weight indicator with numerical and functional keyboard, integrated printer and monobloc steel platform, solid and sturdy. Particularly suitable for industrial and commercial use, these scales allow to weigh and issue receipts with business name and 2 tracking numbers. CE-M APPROVED scales in dual range as standard, according to OIML R-76 / EN 45501 standards.

Selectable Features

  • The user can select the operating modes directly using the dedicated key*:
    • High resolution display x 10
    • Precision weighing with temporary recalibration via a sample weight (for internal factory use)
    • Net/Gross
    • Lb to Kg converter
    • Free conversion factor (for meter and litre counters etc.)
    • Weight totalizer
    • Formulizer
    • +/- controller with quick target and threshold input
    • Percentage weighing
    • Percentage batching with programmable target
    • Piece counter
    • Hold
    • Alibi memory (optional)

Code l x w x h (mm) Nr. of cells Max (kg) M
2R (g)*
WEFLBK1500-1 1250x1250x120 4x1000kg 600/1500 0,2/0,5
WEFLDK3000-2 1250x1500x120 4x2000kg 1500/3000 0,5/1
WEFLEK3000-2 1500x1500x120 4x2000kg 1500/3000 0,5/1

(*) These divisions are obtainable only with the relative options.

Parts

Available Versions

Part # Description List Price Cart / Quote
WEFLBK1500-2 Floor scale 1250x1250x120mm, Max=600/1500kg, e=0,2/0,5kg. Fitted with ABS weight indicator with printer. Legal for trade as standard.

Consult
WEFLDK3000-2 Floor scale 1250x1500x120mm, Max=1500/3000kg, e=0,5/1kg. Fitted with ABS weight indicator with printer. Legal for trade as standard.

Consult
WEFLEK3000-2 Floor scale 1500x1500x120mm, Max=1500/3000kg, e=0,5/1kg. Fitted with ABS weight indicator with printer. Legal for trade as standard.

Consult

Options

International power cables

Part # Description List Price Cart / Quote
PWCORDAUS Version with AU power cord.

Consult
PWCORDCH Power supply cord with SEV1011 plug (CH plug).

Consult
PWCORDUK Power supply cord with BS1363 plug (UK plug).

Consult
PWCORDUS Version with US type B power cord (Japan, North and Central America).

Consult

Frame for flush floor installation

Calibration service (only at time of order)

Connection cables

Other options
