Product PDF

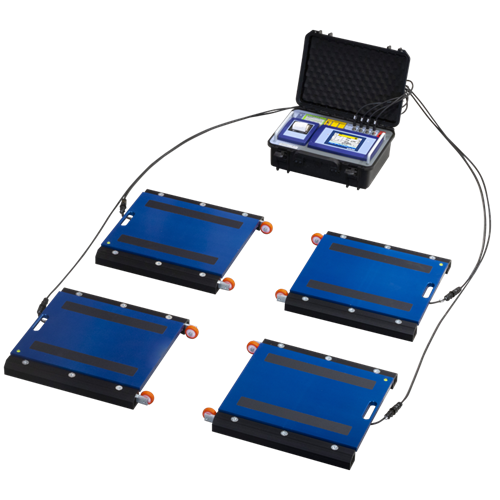

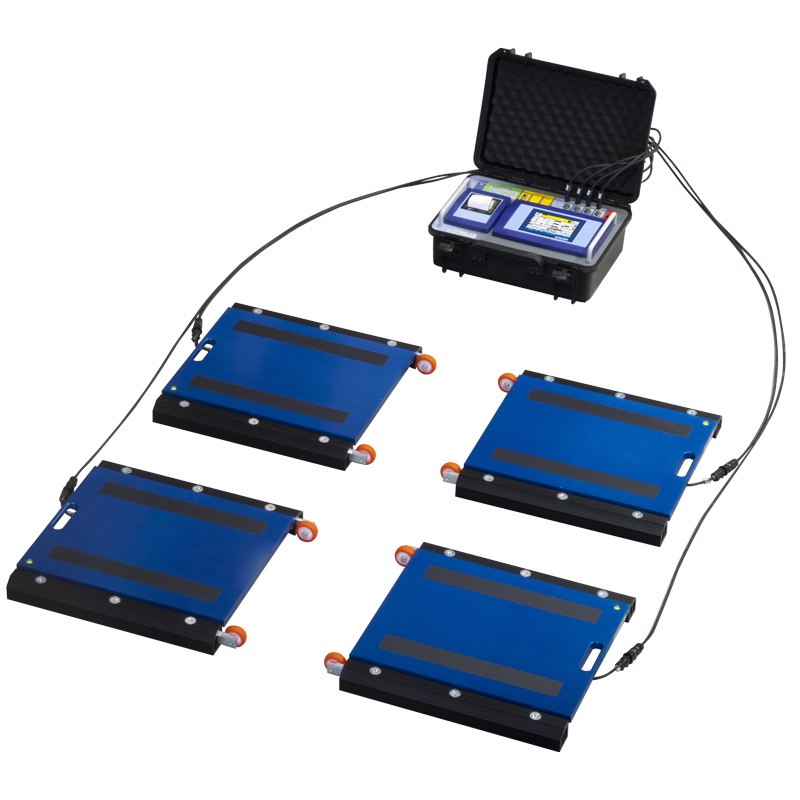

Weighing Kit for 2-Axle Vehicles and Vans - Touch Screen Version

  • The vehicle weighing kit is composed of 4 WWS weighing pads, a product patented by Dini Argeo.
    The loading surface is made of a special high-strength aluminum alloy, designed to be strong and light.
    The IP68 protection against water and dust ensures a long life of the pads even in case of bad weather.
    Easy to move and position, thanks to the integrated wheels.
  • The touch screen weight indicator simplifies the use of the scale and allows the entry of master data. With integrated printer or USB communication port to save the weighs and transport case to protect the weight indicator even in the rain. 10h of autonomy, thanks to the rechargeable battery.
Request More Information
4WWSET

WWS wheel pads are the most cost-effective solution patented by Dini Argeo for weighing a vehicle. Thanks to the low weight and ease of transport, in just a few minutes it is possible to create a weighing station for weighing 2-axle vehicles. Compared to a traditional weighbridge, it does not require masonry work that can permanently occupy part of the yard space and is easily transportable.

The vehicle weighing kit is ideal to:

Weighs the whole vehicle and calculates the weight of the axles. Consisting of 4 WWS series portable platforms and the touch screen weighing terminal with integrated printer. Cable version.



Available Functions:
Complete weighing of a vehicle.
Weighing with insertion of the preset tare.
Verification of the vehicle balance, with indication of the center of gravity and weight of each wheel.
Database of 500 vehicles.
Customizable texts.
Printing and saving of the weighs on USB memory (optional).







Approvals:
The system is CE approved according to Directive 2014/31/EU (NAWI).







Code l x w x h (mm) Max (kg) d (kg) M (kg) d HR
(kg)*		 Notes
WWSB600-2 400x300x58 600 0,2 0,2 -- Price for single platform
WWSB1500-2 400x300x58 1500 0,5 0,5 -- Price for single platform
WWSB3T-2 400x300x58 3000 1 1 0,1 Price for single platform
WWSB8T-2 400x300x58 8000 5 5 0,5 Price for single platform
WWSB8T-2 400x300x58 8000 5 5 0,5 Price for single platform
WWSC1.5T-2 500x400x58 1500 0,5 0,5 0,05 Price for single platform
WWSC3T-2 500x400x58 3000 1 1 0,1 Price for single platform
WWSC6T-2 500x400x58 6000 2 2 0,2 Price for single platform
WWSC10T-2 500x400x58 10000 5 5 0,5 Price for single platform
WWSC15T-2 500x400x58 15000 (12500**) 5 5 0,5 Price for single platform
WWSE6T-2 700x450x58 6000 2 2 0,2 Price for single platform
WWSE10T-2 700x450x58 10000 5 5 0,5 Price for single platform
WWSE15T-2 700x450x58 15000 (12500**) 5 5 0,5 Price for single platform
WWSD6T-2 900x500x58 6000 2 2 0,2 Price for single platform
WWSD10T-2 900x500x58 10000 5 5 0,5 Price for single platform
WWSD15T-2 900x500x58 15000 5 5 0,5 Price for single platform
WWSD20T-2 900x500x58 20000 (15000**) 10 10 1 Price for single platform

(*) These divisions are obtainable only with the relative options
(**) In combination with ECEM approval.

Parts

Available Versions

Part # Description List Price Cart / Quote
WWSB600-2 Wheel weighing platform with 600 kg maximum capacity, 0.2 kg division, loading surface 400x300 mm, height 58 mm.

Consult
WWSB1500-2 Wheel weighing platform with 1500 kg maximum capacity, 0,5 kg division, loading surface 400x300 mm, height 58 mm.

Consult
WWSB3T-2 Wheel weighing platform with 3000 kg maximum capacity, 1 kg division, loading surface 400x300 mm, height 58 mm.

Consult
WWSB6T-2 Wheel weighing platform with 6000 kg maximum capacity, 2 kg division, loading surface 400x300 mm, height 58 mm.

Consult
WWSB8T-2 Wheel weighing platform with 8000 kg maximum capacity, 5 kg division, loading surface 400x300 mm, height 58 mm.

Consult
WWSC1.5T-2 Wheel weighing platform with 1500 kg maximum capacity, 0,5 kg division, loading surface 500x400 mm, height 58 mm.

Consult
WWSC3T-2 Wheel weighing platform with 3000 kg maximum capacity, 1 kg division, loading surface 500x400 mm, height 58 mm.

Consult
WWSC6T-2 Wheel weighing platform with 6000 kg maximum capacity, 2 kg division, loading surface 500x400 mm, height 58 mm.

Consult
WWSC10T-2 Wheel weighing platform with 10000 kg maximum capacity, 5 kg division, loading surface 500x400 mm, height 58 mm.

Consult
WWSC15T-2 Wheel weighing platform with 15000 kg maximum capacity, 5 kg division, loading surface 500x400 mm, height 58 mm.

Consult
WWSE6T-2 Wheel weighing platform with 6000 kg maximum capacity, 2 kg division, loading surface 700x450 mm, height 58 mm.

Consult
WWSE10T-2 Wheel weighing platform with 10000 kg maximum capacity, 5 kg division, loading surface 700x450 mm, height 58 mm.

Consult
WWSE15T-2 Wheel weighing platform with 15000 kg maximum capacity, 5 kg division, loading surface 700x450 mm, height 58 mm.

Consult
WWSD6T-2 Wheel weighing platform with 6000 kg maximum capacity, 2 kg division, loading surface 900x500 mm, height 58 mm.

Consult
WWSD10T-2 Wheel weighing platform with 10000 kg maximum capacity, 5 kg division, loading surface 900x500 mm, height 58 mm.

Consult
WWSD15T-2 Wheel weighing platform with 15000 kg maximum capacity, 5 kg division, loading surface 900x500 mm, height 58 mm.

Consult
WWSD20T-2 Wheel weighing platform with 20000 kg maximum capacity, 10 kg division, loading surface 900x500 mm, height 58 mm.

Consult

Transportable indicators, with transport case

Options

High resolution (d HR)(only at time of order)

Part # Description List Price Cart / Quote
EHR High resolution model for internal factory use.

Consult

International power plugs

Optional power supply cords

Legal for trade approval M (only at time of order)

On/Off ramp

Levelling mats for axle weighing

Frame for flush floor installation

Storing the weighs
