Weighing Kit for 2-Axle Vehicles and Vans - Wireless Version

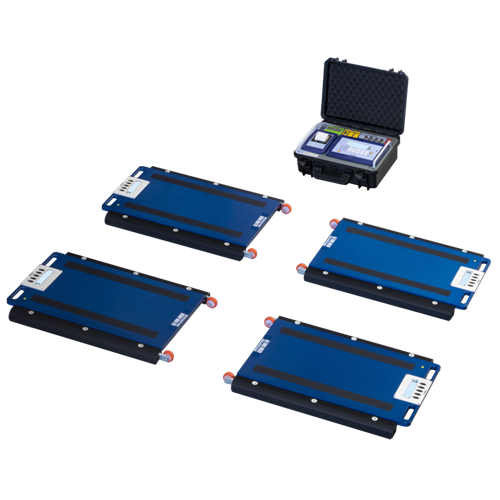

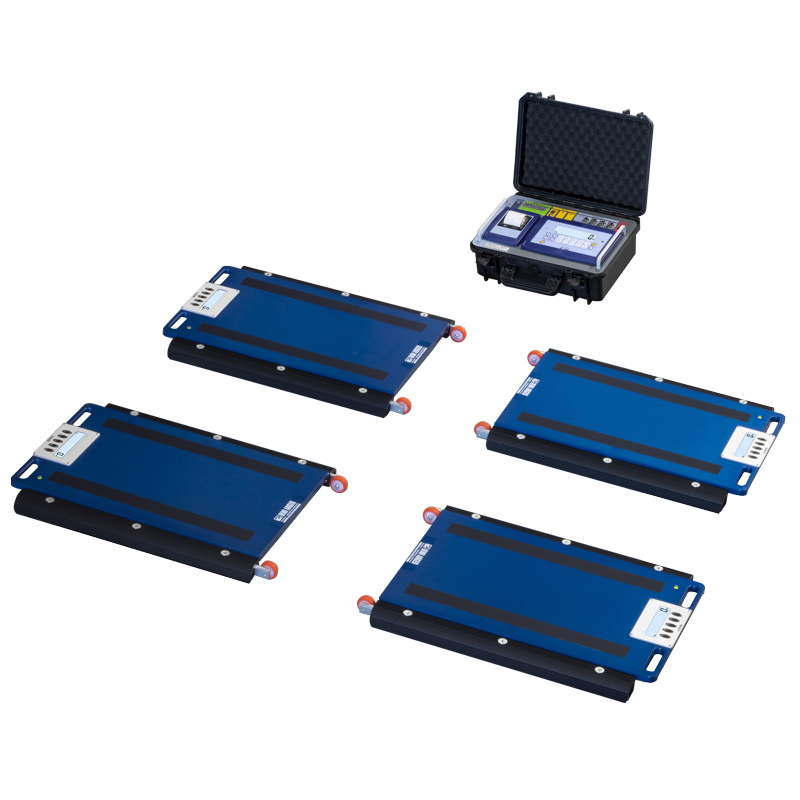

- The vehicle weighing kit is composed of 4 WWS weighing pads, a product patented by Dini Argeo. The loading surface is made of a special high-strength aluminum alloy, designed to be strong and light. The IP68 protection against water and dust ensures a long life of the pads even in case of bad weather.
Easy to move and position, thanks to the integrated wheels. - Weight indicator with integrated printer and transport case to protect the weight indicator even in the rain. 10h of autonomy, thanks to the rechargeable battery.
The Portable Alternative to Weighbridges
WWS is the most cost-effective solution patented by Dini Argeo for weighing a vehicle. Thanks to the low weight and ease of transport, in just a few minutes it is possible to create a weighing station for weighing 2-axle vehicles. Compared to a traditional weighbridge, it does not require masonry work that can permanently occupy part of the yard space and is easily transportable.
Great Versatility of Use
The vehicle weighing kit is ideal to:
- Weigh 2-axle vehicles and vans.
- Check the weight of the material transported by the vehicle and carry out simple checks on incoming/outgoing goods.
- Weigh for limited periods of time (harvests, crops, etc..) without the need for excavations or masonry work.
- Check for any vehicle overloads, avoiding penalties.
Weighing Kit for 2-Axle Vehicles and Vans - Wireless Version Specifications
|
Available Functions:
|
Approvals:
|
|
Available Versions
| Code | l x w x h (mm) | Max (kg) | d (kg) | M (kg) | d HR (kg)* |
Notes |
|---|---|---|---|---|---|---|
| WWSC2G4-1.5T-1 | 565x400x58 | 1500 | 0,5 | 0,5 | 0,05 | Price for single platform |
| WWSC2G4-3T-1 | 565x400x58 | 3000 | 1 | 1 | 0,1 | Price for single platform |
| WWSC2G4-6T-1 | 565x400x58 | 6000 | 2 | 2 | 0,2 | Price for single platform |
| WWSC2G4-10T-1 | 565x400x58 | 10000 | 5 | 5 | 0,5 | Price for single platform |
| WWSC2G4-15T-1 | 565x400x58 | 15000 (12500**) | 5 | 5 | 0,5 | Price for single platform |
| WWSE2G4-6T-1 | 750x450x58 | 6000 | 2 | 2 | 0,2 | Price for single platform |
| WWSE2G4-10T-1 | 750x450x58 | 10000 | 5 | 5 | 0,5 | Price for single platform |
| WWSE2G4-15T-1 | 750x450x58 | 15000 (12500**) | 5 | 5 | 0,5 | Price for single platform |
| WWSD2G4-10T-1 | 950x500x58 | 10000 | 5 | 5 | 0,5 | Price for single platform |
| WWSD2G4-15T-1 | 950x500x58 | 15000 | 5 | 5 | 0,5 | Price for single platform |
| WWSD2G4-20T-1 | 950x500x58 | 20000 (15000**) | 10 | 10 | 1 | Price for single platform |
(*) These divisions are obtainable only with the relative options
(**) In combination with ECEM approval.
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
WWSC2G4-1.5T-1 | Wheel weighing platform with 1500 kg maximum capacity, 0,5 kg division, loading surface 565x400x58 mm. 2.4G wireless version. |
Consult |
|
|
|
WWSC2G4-3T-1 | Wireless wheel weighing platform with 3000 kg maximum capacity, 1 kg division, loading surface 565x400x58 mm. |
Consult |
|
|
|
WWSC2G4-6T-1 | Wireless wheel weighing platform with 6000 kg maximum capacity, 2 kg division, loading surface 565x400x58 mm. |
Consult |
|
|
|
WWSC2G4-10T-1 | Wireless wheel weighing platform with 10000 kg maximum capacity, 5 kg division, loading surface 565x400x58 mm. |
Consult |
|
|
|
WWSC2G4-15T-1 | Wireless wheel weighing platform with 15000 kg maximum capacity, 5 kg division, loading surface 565x400x58 mm. |
Consult |
|
|
WWSE2G4-6T-1 | Wireless wheel weighing platform with 6000 kg maximum capacity, 2 kg division, loading surface 750x450x58 mm. |
Consult |
|
|
|
WWSE2G4-10T-1 | Wireless wheel weighing platform with 10000 kg maximum capacity, 5 kg division, loading surface 750x450x58 mm. |
Consult |
|
|
|
WWSE2G4-15T-1 | Wireless wheel weighing platform with 15000 kg maximum capacity, 5 kg division, loading surface 750x450x58 mm. |
Consult |
|
|
WWSD2G4-10T-1 | Wireless platform for wheel and axle weighing stations, with 10000 kg maximum capacity, 5 kg division, loading surface 950x500x58 mm. |
Consult |
|
|
|
WWSD2G4-15T-1 | Wireless platform for wheel and axle weighing stations, with 15000 kg maximum capacity, 5 kg division, loading surface 950x500x58 mm. |
Consult |
|
|
|
WWSD2G4-20T-1 | Wireless platform for wheel and axle weighing stations, with 20000 kg maximum capacity, 10 kg division, loading surface 950x500x58 mm. |
Consult |
Transportable indicators, with transport case
Options
High resolution (d HR)(only at time of order)
| Part # | Description | List Price | Cart / Quote |
|---|---|---|---|
| EHR | High resolution model for internal factory use. |
Consult |
