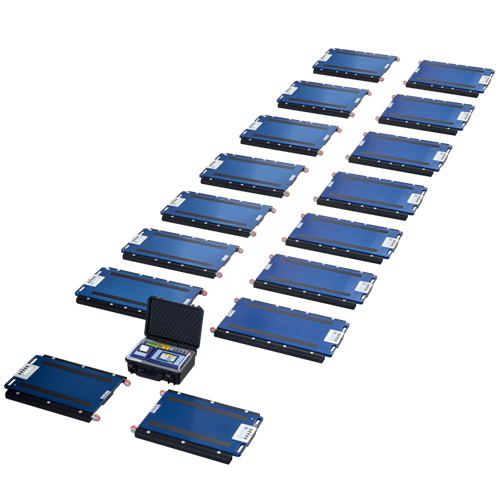

Weighing Kit for Vehicles and Trucks From 2 to 4 Axles - Wireless Version with Touch Screen
- The vehicle weighing kit is composed of the WWS weighing pads, a product patented by Dini Argeo.
The loading surface is made of a special high-strength aluminum alloy, designed to be strong and light. The IP68 protection against water and dust guarantees a long life of the pads even in case of bad weather. Easy to move and position, thanks to the integrated wheels. - The touch screen weight indicator simplifies the use of the scale and allows the entry of master data. With integrated printer or USB communication port for saving the weighs and transport case to protect the weight indicator even in the rain. 10h of autonomy, thanks to the rechargeable battery.
Weighs the entire vehicle and calculates the weight of the axles. Up to 16 WWS series portable platforms and touch screen weighing terminal with integrated printer. Wireless version.
The Portable Solution to Weighbridge
WWS is the most cost-effective solution patented by Dini Argeo for weighing a vehicle. Thanks to the low weight and ease of transport, in just a few minutes it is possible to create a weighing station for weighing vehicles up to 4 axles using AF08 software. Compared to a traditional weighbridge, it does not require masonry work that can permanently occupy part of the yard space and is easily transportable.
Great Versatility of Use
The vehicle weighing kit is ideal to:
- Weigh vehicles and trucks up to 4 axles.
- Check the weight of the material transported by the vehicle and carry out simple checks on incoming/outgoing goods.
- Weigh for limited periods of time (harvests, crops, etc.) without the need for excavations or masonry work.
- Check for any vehicle overloads, avoiding penalties.
- Check the correct balancing of the vehicle.
Weighing Kit for Vehicles and Trucks From 2 to 4 Axles - Wireless Version with Touch Screen Specifications
|
Available Functions:
|
Approvals: |
|
Available Versions
| Code | l x w x h (mm) | Max (kg) | d (kg) | M (kg) | d HR (kg)* |
Notes |
|---|---|---|---|---|---|---|
| WWSC2G4-1.5T-1 | 565x400x58 | 1500 | 0,5 | 0,5 | 0,05 | Price for single platform |
| WWSC2G4-3T-1 | 565x400x58 | 3000 | 1 | 1 | 0,1 | Price for single platform |
| WWSC2G4-6T-1 | 565x400x58 | 6000 | 2 | 2 | 0,2 | Price for single platform |
| WWSC2G4-10T-1 | 565x400x58 | 10000 | 5 | 5 | 0,5 | Price for single platform |
| WWSC2G4-15T-1 | 565x400x58 | 15000 (12500**) | 5 | 5 | 0,5 | Price for single platform |
| WWSE2G4-6T-1 | 750x450x58 | 6000 | 2 | 2 | 0,2 | Price for single platform |
| WWSE2G4-10T-1 | 750x450x58 | 10000 | 5 | 5 | 0,5 | Price for single platform |
| WWSE2G4-15T-1 | 750x450x58 | 15000 (12500**) | 5 | 5 | 0,5 | Price for single platform |
| WWSD2G4-10T-1 | 950x500x58 | 10000 | 5 | 5 | 0,5 | Price for single platform |
| WWSD2G4-15T-1 | 950x500x58 | 15000 | 5 | 5 | 0,5 | Price for single platform |
| WWSD2G4-20T-1 | 950x500x58 | 20000 (15000**) | 10 | 10 | 1 | Price for single platform |
(*) These divisions are obtainable only with the relative options
(**) In combination with ECEM approval.
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
WWSC2G4-1.5T-1 | Wheel weighing platform with 1500 kg maximum capacity, 0,5 kg division, loading surface 565x400x58 mm. 2.4G wireless version. |
Consult |
|
|
|
WWSC2G4-3T-1 | Wireless wheel weighing platform with 3000 kg maximum capacity, 1 kg division, loading surface 565x400x58 mm. |
Consult |
|
|
|
WWSC2G4-6T-1 | Wireless wheel weighing platform with 6000 kg maximum capacity, 2 kg division, loading surface 565x400x58 mm. |
Consult |
|
|
|
WWSC2G4-10T-1 | Wireless wheel weighing platform with 10000 kg maximum capacity, 5 kg division, loading surface 565x400x58 mm. |
Consult |
|
|
|
WWSC2G4-15T-1 | Wireless wheel weighing platform with 15000 kg maximum capacity, 5 kg division, loading surface 565x400x58 mm. |
Consult |
|
|
WWSE2G4-6T-1 | Wireless wheel weighing platform with 6000 kg maximum capacity, 2 kg division, loading surface 750x450x58 mm. |
Consult |
|
|
|
WWSE2G4-10T-1 | Wireless wheel weighing platform with 10000 kg maximum capacity, 5 kg division, loading surface 750x450x58 mm. |
Consult |
|
|
|
WWSE2G4-15T-1 | Wireless wheel weighing platform with 15000 kg maximum capacity, 5 kg division, loading surface 750x450x58 mm. |
Consult |
|
|
WWSD2G4-10T-1 | Wireless platform for wheel and axle weighing stations, with 10000 kg maximum capacity, 5 kg division, loading surface 950x500x58 mm. |
Consult |
|
|
|
WWSD2G4-15T-1 | Wireless platform for wheel and axle weighing stations, with 15000 kg maximum capacity, 5 kg division, loading surface 950x500x58 mm. |
Consult |
|
|
|
WWSD2G4-20T-1 | Wireless platform for wheel and axle weighing stations, with 20000 kg maximum capacity, 10 kg division, loading surface 950x500x58 mm. |
Consult |
Transportable indicators, with transport case
Options
High resolution (d HR)(only at time of order)
| Part # | Description | List Price | Cart / Quote |
|---|---|---|---|
| EHR | High resolution model for internal factory use. |
Consult |
