WEIMONITOR: Software for Managing the Weighs for Dini Argeo Scales
- Display of the weight, with the possibility to manage the semiautomatic tare through dedicated key.
- Manual recording by pressing a key of your choice on the PC or directly on the scale.
- Automatic recording in a determined amount of time, with programmable reading frequency.
- Storing of the data in a text (.txt) or Excel (.xls) file.
- Keyboard emulation, to enter the data directly in the opened Windows application, allowing the filling of notes, documents, invoices, etc.
- Approved functioning with recording of the ID weight (it requires the alibi memory inside the indicator).
- Easy to configure
- Versatility: WeiMonitor can be used with all DFW, DGT, 3590E, and CPWE instruments, as well as crane scales, pallet truck scales, weighing forks etc.
- Interactivity: WeiMonitor alerts the user directly on the scale if the data was recorded or not, allowing the use of the scale far away from the PC.
- Customization: it is possible to customize the program by inserting your logo and translate the user interface directly in own language (.ini file).
- Management of the main communication modes: RS232, USB, Ethernet-Wifi (TCP-IP).
Available Upon Request:
- License for using one Dini Argeo scale on more PC.
- License for managing more Dini Argeo scale.

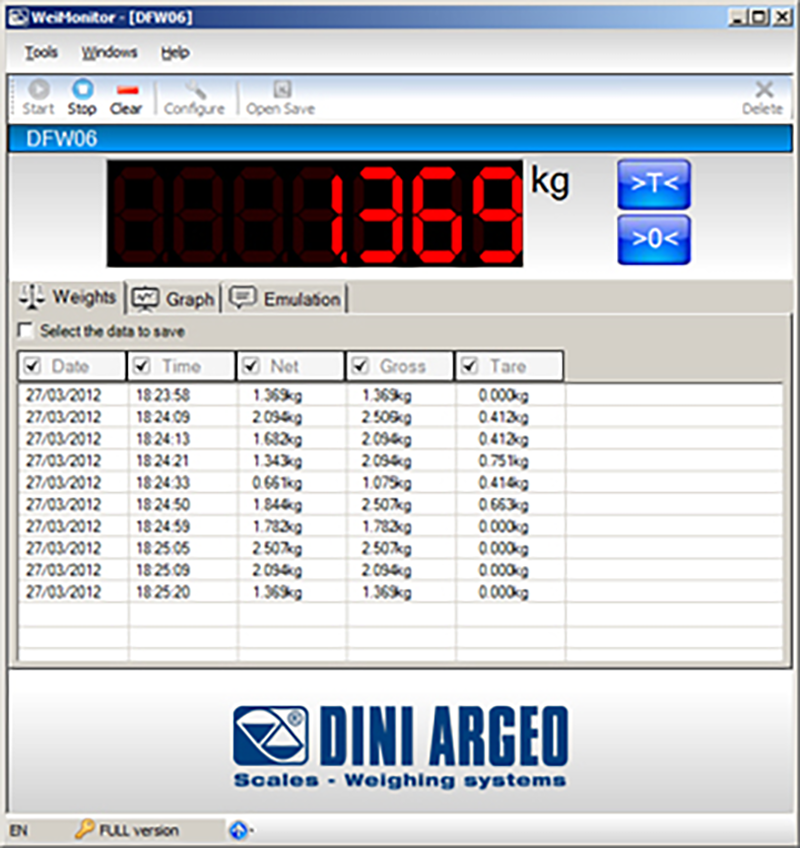

WeiMonitor is the PC program which allows you to monitor and record in real time all the weighings made on the connected scale, storing them in a text or Excel file for further processing.
Specifications
|
Minimum Requirements: |
 |
To quickly complete the registration of WeiMonitor, it is necessary a temporary connection to the Internet. |
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
SWM | "WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale). |
Consult |
Options
License regeneration
| Part # | Description | List Price | Cart / Quote |
|---|---|---|---|
| LICGEN | PC software license regeneration. To regenerate the license it is necessary to fill in the "New Software License" form that can be downloaded in the Download section. NET PRICE (*) |
Consult |
Related Products
Myrias™ Integrated Software Solution
Myrias is an enterprise software designed to help businesses across industry sectors improve operations, manage resources and drive growth.

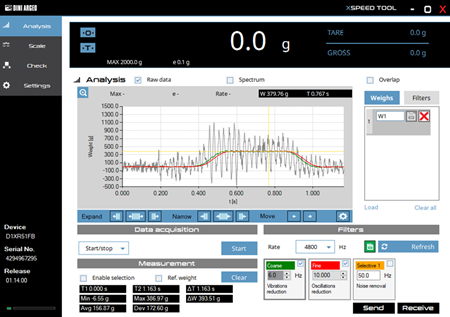

XSPEED TOOL: free diagnostic and weighing filter configuration software
PC software that allows you to record the signal coming from the load cell in real time and process it by applying specific filters to remove vibrations, disturbance and noise.

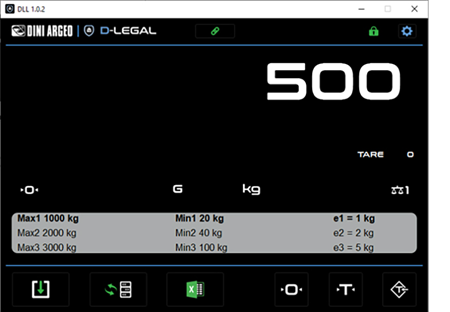

D-LEGAL Software
D-LEGAL software can be used to turn a PC into an approved digital weight indicator in compliance with NAWI.
DINI SIMULATOR TOOL: Application Software Simulator for 3590 Touch Screen
Dini Simulator is a program that runs the application software of the 3590 Touch Screen indicators on your PC.
Dini Display Tools: Software for the Quick Customization of the Display
DINI DISPLAY TOOL allows you to quickly customize the interface of the indicator with touch screen, of the 3590ET and 3590EGT range.
DBMANAGER PC software designed for quickly compiling the databases of your scale
PC software which facilitates and speeds up the compiling of the scale's databases, with the possibility to import/export them in a Excel format.
WeighVault® Web Application with Middleware Services
WeighVault for CW-90, CW-90X and Counterpart® is a comprehensive software package that stores and manages data on your PC.

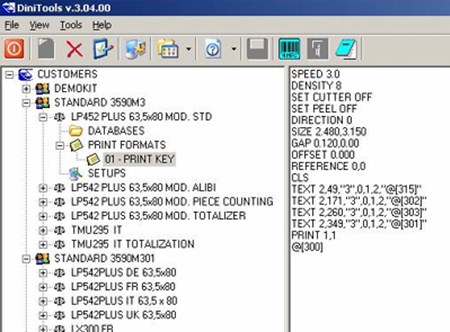

DINITOOLS Instrument Management
Software programme for managing the DFW, TRI, TRS, CPW, 3590, DGT, DGTQ, and DGT60. series' indicators: there is a customer database in which it is possible to store the indicators which are used.

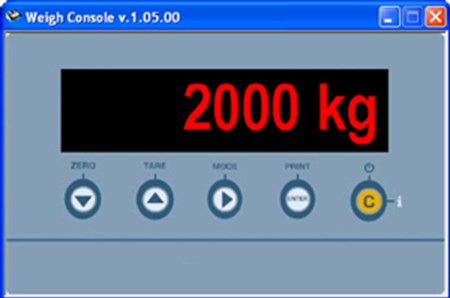

WEIGH CONSOLE: Monitoring the Instruments
FREE software (if downloaded from the Internet) which allows you to monitor from PC the weight displayed by the DFW, 3590, DGT, DGTQ, DGT60, CPW, TRS, TRI series' weight indicators.
CHECKTOOL and E-CHECKTOOL ENTERPRISE: Software to Optimize the Weighing Results
CHECKTOOL and E-CHECKTOOL ENTERPRISE are programmes which allow to quicken the configuration for static or dynamic weighing on belt; advanced calculation functions allow the processing of the weighs made during the testing of the system, in order to improve the precision and repeatability of the scale.

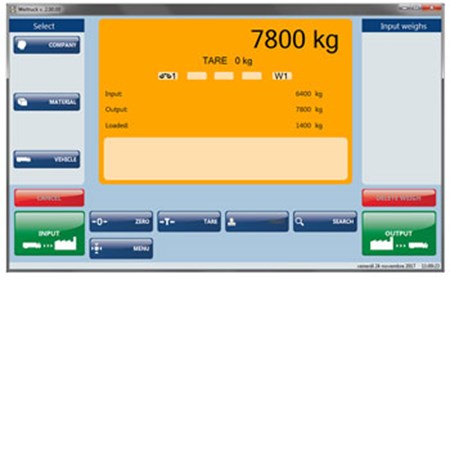

WEITRUCK PC Software for Managing Weighbridges
