Product PDF

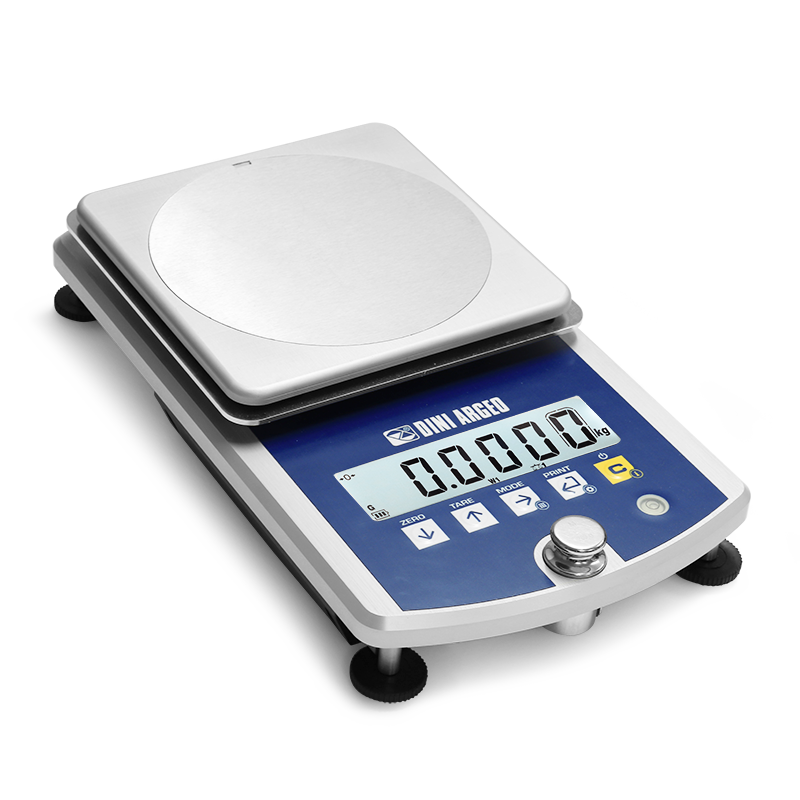

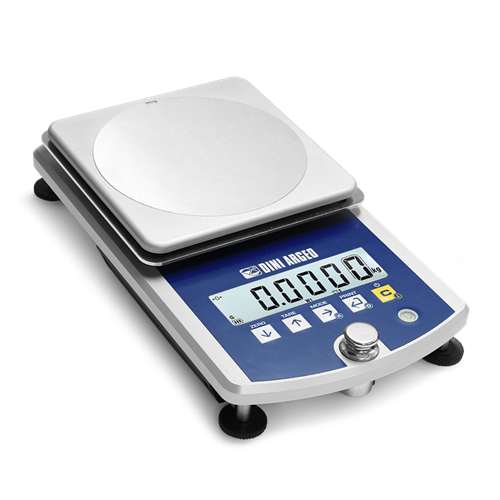

WLB Series Compact Bench Scale

  • Special body in anodised alloy, resistant and easy to clean.
  • Loading surface in anodised alloy, washable and inspectionable.
  • Safety limit switch and protection plate against side strikes.
  • Aluminium load cell, IP67.
  • Extractable calibration weight, useful for calibration control.
  • Integrated weight indicator, with backlit LCD display of 25mm, waterproof keypad and multifunctional programme.
  • Non-slip adjustable feet.
  • Integrated level.
  • IP67 protection degree.
  • Serial port RS232 for connection to Pc or printer.
  • Power supply through built-in rechargeable battery. Fitted with external battery charger with IP68 connector(to not use as power adaptor).
  • Dimensions and weight:
    - Scale: (lxwxh) 360x210x75mm - 5,3kg.
    - Packaging: (lxwxh) 500x300x150mm - 6,6kg.
  • Patented product.
Request More Information
WLB6M 1

Bench scales with compact dimensions, extremely sturdy, constructed with high quality materials. Suitable for industrial laboratories and burdensome working environment. Fitted with standard weight and rapid calibration adjustment function. Multifunctional weighing program. CE-M approvable according to EN45501.

BENCH SCALES: FUNCTIONING MODES:

  • Through the specific key, the desired functioning mode can be chosen:

  • SELECTABLE FUNCTIONS:
    - x 10 high resolution visualisation.
    - Precision weighing with recalibration through standard weight (for the company internal use).
    - Switch Net/Gross
    - lb to kg or free factor conversion.
    - Weight totalisation.
    - Formulation.
    - +/- check.
    - Percentage weigh.
    - Approved weight transmission to PC/PLC or printer.
    - Pieces counting.
    - Hold
  • OTHER STANDARD FUNCTIONS:
    Zeroing, Tare, preset Tare, automatic Tare, Auto switch off.



Code Class Plate
Max (mm)		 Max
(g)		 d
(g)
(g)*		 d HR
(g)*		 Linearity
(g) +/-		 Repeatability
(g)
WLB6M-1 III 190x190 mm 6000 -- 1 0.1 1 1

Resources / Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells Articles
How to Choose a Bench Scale Email Bench Scales Articles

Parts

Available versions

Part # Description List Price Cart / Quote
WLB6M-1 Compact bench scale, Max=6kg, e=1g, d=0,1g.

Consult

Options

International power plugs

Part # Description List Price Cart / Quote
AUS-V4 Version with AU charger.

Consult
UK-V4 Version with UK charger.

Consult
US-V4 Version with US charger.

Consult

Communication Interfaces

Date&Time option

Other options
