Product PDF

WS911 Screw Weigher

  • Creates an in-line measurement without disturbing the product flow
  • Inlet and outlet are mechanically isolated with flexible connection
  • Dust closed design, dust-free



Request More Information
WS911 1

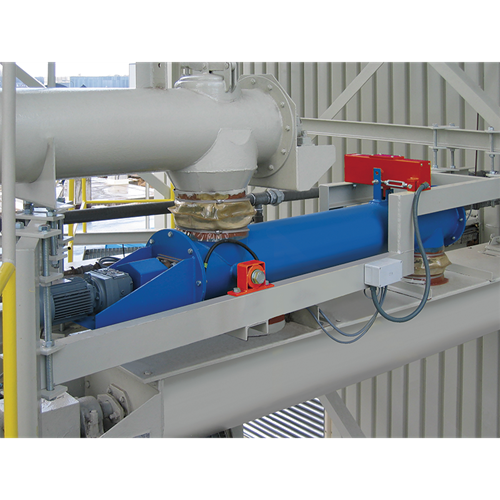

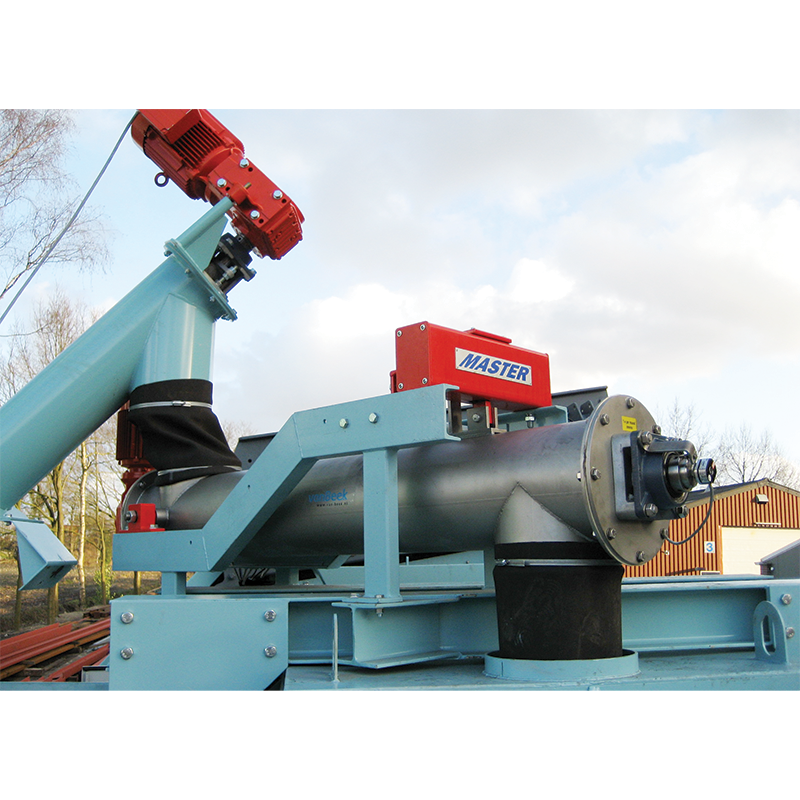

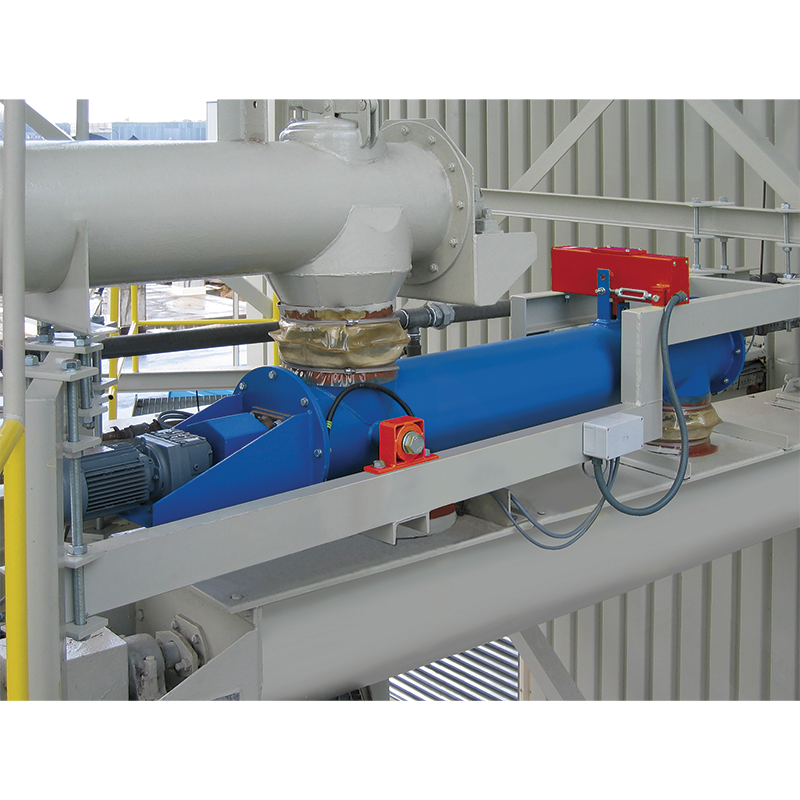

By providing an existing or new-to-build screw conveyor with a screw weigh system, one can easily create an in-line measurement without disturbing the product flow.

Weigh frame:
- Powder coated steel frame, stainless steel available
- Fixed frame with frictionless pivots and load cell carrier
- Screw conveyor mounted in load cell carrier and the pivots

Mounting:
- Six bolts

Load Cell:
- Stainless steel, IP67

Accuracy Guidelines:
- Consult

Junction Box:
- JBW shockproof reinforced polycarbonate, IP66
Four- or six-wire load cell cable

Speed Pick-up:
- Model SPU5020 or 5826
Mounted directly on axle end

Indicator:
- WE302D, WE303D, WE304D, OR WE404D

Warranty:
- One-year limited warranty
