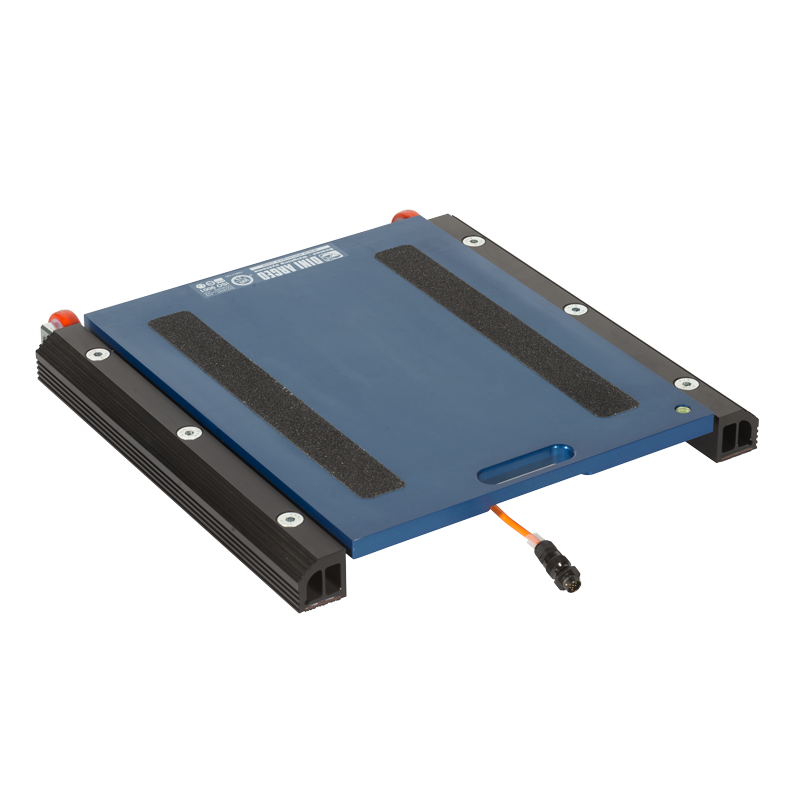

WWSC 500 x 400mm Wheel Weighing Pads
- Pan dimensions: 500x400mm
- Weighing area: 400x315mm
- Overall dimensions: see technical drawing
- Weight: approximately 18kg.
- Handle for easy handling.
- Equipped with wheels for pad transport.
- Sturdy structure, made in special alluminum, which guarantees lightness and makes these suitable also for harsh working conditions.
- 10 m PUR cable, with IP68 connector on platform side and new M12 connector on weight indicator side.
- IP68 stainless steel load cells.
- IP68 hermetic junction box.
- Special vulcanised nonslip rubber applied under the pad, for good grip on all types of surfaces.
- Extremely simple and reliable connection of the scale to the weight indicator.
- Available in legal for trade approved version.
- Available in high resolution version.
- Available upon price estimate in Atex version for 1&21 e 2&22 zones.
Legal for Trade Version
- The pads are for legal for trade use:
- In the single-pad systems, not used to weigh vehicles.
- In the wheel weighing systems in which the number of pads is equal to the number of vehicle wheels.
- In the axle weighing systems composed of one or more multiples of WWS pads, except possible limitations of use for some European States.
- The CE-M legal for trade divisions indicated in the "version" table are available with ECEM option. ECEM option is needed for each legal for trade pad of the system.
- Legal for trade systems with more than one WWS are fitted with the approval of the weight sum and related division:
Example for a 4 pads system
Single CE-M Pad: Max=1500kg and e=0,5kgCE-M SUM: Max=6000kg and e=2kg
Pads designed to create weighing stations for large vehicles (vans, trucks, tankers, tractor-trailers, etc.); particularly accurate and sturdy, with attention to details.
Available Versions
| Code | l x w x h (mm) | Max (kg) | d (kg) | M (kg) | d HR (kg)* |
Notes |
|---|---|---|---|---|---|---|
| WWSC1.5T-2 | 500x400x58 | 1500 | 0,5 | 0,5 | 0,05 | Price for single platform |
| WWSC3T-2 | 500x400x58 | 3000 | 1 | 1 | 0,1 | Price for single platform |
| WWSC6T-2 | 500x400x58 | 6000 | 2 | 2 | 0,2 | Price for single platform |
| WWSC10T-2 | 500x400x58 | 10000 | 5 | 5 | 0,5 | Price for single platform |
| WWSC15T-2 | 500x400x58 | 15000 (12500**) | 5 | 5 | 0,5 | Price for single platform |
(*) These divisions are obtainable only with the relative options
(**) With ECEM legal for trade approval , Max=12500kg
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles | |
| Increase Efficiency and Productivity with Dini Argeo Weighing Solutions | Email |
Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|Pallet Truck Scales | Articles | |
| SOLAS: Solutions for Weighing Containers | Email |
Axle Weighing Scales|Weighing Axle Platforms and Indicators|In-Motion Axle Scales|Dynamic Axle Weighing|Crane Scales|Weighing Forks | Articles | |
| WWS Wheel and Axle Weighing Platforms | Email |
Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
WWSC1.5T-2 | Wheel weighing platform with 1500 kg maximum capacity, 0,5 kg division, loading surface 500x400 mm, height 58 mm. |
Consult |
|
|
|
WWSC3T-2 | Wheel weighing platform with 3000 kg maximum capacity, 1 kg division, loading surface 500x400 mm, height 58 mm. |
Consult |
|
|
|
WWSC6T-2 | Wheel weighing platform with 6000 kg maximum capacity, 2 kg division, loading surface 500x400 mm, height 58 mm. |
Consult |
|
|
|
WWSC10T-2 | Wheel weighing platform with 10000 kg maximum capacity, 5 kg division, loading surface 500x400 mm, height 58 mm. |
Consult |
|
|
|
WWSC15T-2 | Wheel weighing platform with 15000 kg maximum capacity, 5 kg division, loading surface 500x400 mm, height 58 mm. |
Consult |
Options
Legal for trade approval M (only at time of order)
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
ECEM | 3000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options. |
Consult |
|
|
ECEMDOC | Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _. |
Consult |
High resolution (d HR)(Only at time of order)

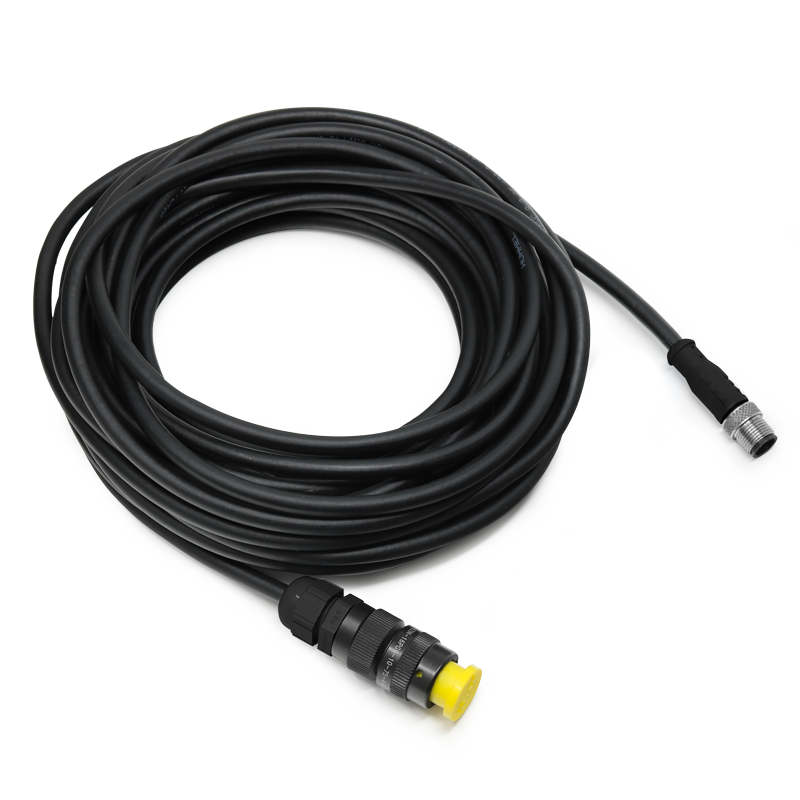

Spare part cable
Frame for flush floor installation
On/off ramp
Main connectable indicators
Calibration service with Dini Argeo indicator (only at time of order)
