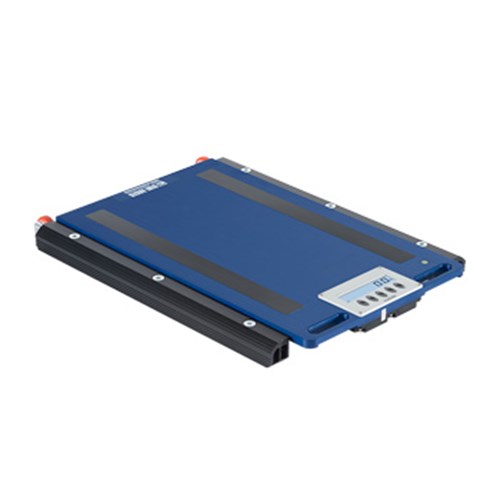

WWSERF: 750 x 450mm Wireless Wheel Weighing Pads
- Pad dimensions:
- Weighing surface: 565 x 400 x 58 mm.
- Total (with wheels): 620 x 511 x 58 mm.
- Weight approximately 18kg.
- Transit area: 403 x 400 mm.
- Very handy.
- Sturdy structure, made in special aluminum, which guarantees lightness and makes these suitable also for harsh working conditions.
- Stainless steel load cells.
- Overall IP68 protection.
- Sturdy built-in weight indicator with waterproof keyboard and backlit display.
- Built-in radio module for weight transmission to a remote indicator or external device. Max. functioning distance: 50m.
- Integrated wheels for easy transport and positioning.
- Power supply: internal rechargeable battery (about 40 h battery life) and charger included (to not use as power adaptor).
- Special vulcanized nonslip rubber applied under the pad, for good grip on all types of surfaces.
- The WWS pads are patented; the number is 1.342.302.
- Available in legal for trade approved version.
- Available in high resolution version.
CE-M APPROVED VERSIONS
- The pads are for legal for trade use:
- In the single-pad systems, not used to weigh vehicles.
- In the wheel weighing systems in which the number of pads is equal to the number of vehicle wheels.
- In the axle weighing systems composed of one or more multiples of WWS pads, except possible limitations of use for some European States.
- The CE-M legal for trade divisions indicated in the "version" table are available with ECEM option. ECEM option is needed for each legal for trade pad of the system.
- Legal for trade systems with more than one WWS, are fitted with the approval of the weight sum and related division:
Example for a 4 platforms system:
Single CE-M Pad: Max=1500kg and e=0,5kgCE-M SUM: Max=6000kg and e=2kg
Wireless pads designed for creating wheel and axle vehicle weighing stations, avoiding the hassle of connecting cables between the pads and the indicator. Ideal for weighing larger vehicles (vans, trucks, tankers, trucks etc..); particularly accurate and sturdy, with attention to details.
WWS-R: Additional on/off ramps
Integrated folding ramps, useful to facilitate the boarding and the alighting of vehicles with small diameter wheels or moved with the engine off.
In the example, an application with 2 WWS-R ramps.
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles | |
| Increase Efficiency and Productivity with Dini Argeo Weighing Solutions | Email |
Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|Pallet Truck Scales | Articles | |
| SOLAS: Solutions for Weighing Containers | Email |
Axle Weighing Scales|Weighing Axle Platforms and Indicators|In-Motion Axle Scales|Dynamic Axle Weighing|Crane Scales|Weighing Forks | Articles | |
| WWS Wheel and Axle Weighing Platforms | Email |
Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
WWSE2G4-6T-1 | Wireless wheel weighing platform with 6000 kg maximum capacity, 2 kg division, loading surface 750x450x58 mm. |
Consult |
|
|
|
WWSE2G4-10T-1 | Wireless wheel weighing platform with 10000 kg maximum capacity, 5 kg division, loading surface 750x450x58 mm. |
Consult |
|
|
|
WWSE2G4-15T-1 | Wireless wheel weighing platform with 15000 kg maximum capacity, 5 kg division, loading surface 750x450x58 mm. |
Consult |
Options
International power plugs
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
AUS-V4 | Version with AU charger. |
Consult |
|
|
UK-V4 | Version with UK charger. |
Consult |
|
|
US-V4 | Version with US charger. |
Consult |
Legal for trade approval (only at time of order)
High resolution (d HR)(only at time of order)
On/off ramp
"Easy Level" kit
Transportable indicators, with transport case
Remote Control
Calibration service with Dini Argeo indicator (only at time of order)
