Rice Lake RLPC3SS Stainless Steel, Single Point Load Cell

Stainless steel, environmentally sealed single-point ideally suited for bench scales. NTEP certified and OIML approved with capacities from 7 kg to 150 kg. 10 ft of cable standard.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo OIML Logo

WARNING: Cancer and Reproductive Harm California Proposition 65
PC3 10Kg M G3 CMYK

Full Scale Output:
2 mV/V

Output Resistance:
350 (±10) ohm

Input Resistance:
385 (±15) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft

Cable Diameter:
0.140 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Yellow Shield

Max Platform Size:
7 to 30 kg: 350 × 350 mm
60 to 150 kg: 450 × 450 mm

Warranty:
One-year limited

Approvals:
NTEP 21-017
OIML R60/2017-A-NL1-21.17

Rated Capacity A B C D E F G
kg/mm
7 to 10 19.0 139.8 19.0 6.6 88.7 M6×1.0 30.0
30 to 60 23.8 139.8 19.0 6.6 88.7 M6×1.0 30.0
100 to 150 30.7 139.7 22.4 6.6 79.3 3/8-16 UNC 30.0





Resources/Downloads

Title Download Email
RLPC3SS Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Wiring Guide Request Download Email Load Cells
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Handbook Request Download Email Load Cells|Weigh Modules

Title View Download Email Category
Rice Lake's Load Cell Service, Selection and Speed View Download Email Load Cells

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Part # Description List Price Cart/Quote
205274 Load Cell, RLPC3SS 7kg 7kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S

List Price: $328.00
205275 Load Cell, RLPC3SS 10kg 10kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S

List Price: $328.00
205276 Load Cell, RLPC3SS 30kg 30kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S

List Price: $328.00
205277 Load Cell, RLPC3SS 60kg 60kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S

List Price: $328.00
205278 Load Cell, RLPC3SS 100kg 100kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S

List Price: $328.00
205279 Load Cell, RLPC3SS 150kg 150kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S

List Price: $328.00

Related Products

rl-RL1380-load-cell

Rice Lake RL1380 Stainless Steel, Single Point Load Cell

The Rice Lake RL1380 single-point load cell is constructed of stainless steel, and is designed for high performance in harsh environments.

rl-HBM-PWS-load-cell

HBK® PWS Stainless Steel, Single Point Load Cell

The HBK PWS is a stainless steel, single-point load cell designed to perform in harsh, high shock load environments.

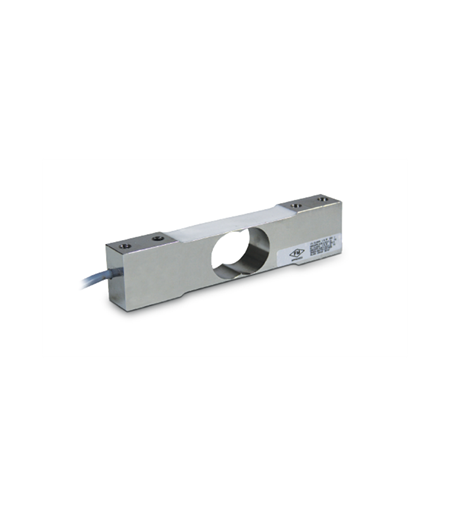

rl-flintec-PC3-load-cell
