SURVIVOR® SR Siderail, Concrete Deck Truck Scale

  • 8-inch reinforced concrete deck
  • G-force mount assemblies return the scale to center without check rods or bumper bolts
  • Cables completely encased in rodent-proof conduit
  • Thorough finishing process includes cleaning of steel before and after welding, followed by either high solids urethane liquid paint or durable powder paint

Options

  • Steel deck
  • 20 lb division
  • 50 lb division/400,000-pound capacity
  • 1/2, 3/8, or 1-inch deck plate upgrade
  • Manhole
  • Slotted manhole
  • Grain dump
  • End cleanout
  • Stainless steel load cells
  • Stainless steel suspension hardware
  • Galvanized weighbridge and suspension hardware
  • Corrosion-resistant coating
  • 3/8-inch runners
  • Side deflector plates
  • Dolly down plate
  • iQUBE2® digital diagnostic junction box bundles

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO NOM LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

Proven the Toughest Truck Scale Made, Any Way You Look at It

The SURVIVOR SR Series side rail truck scale offers superior strength and longevity proven by the SURVIVOR brand. With design elements that outperform competitor brands, a SURVIVOR SR truck scale offers the best total cost of ownership in the industry.

SURVIVOR SR stands up to constant heavy loading, with more wide-flange I-beams integrated throughout the weighbridge than other leading brands, and massive, wide-flange I-beams adding rigidity to each side of the weighbridge and acting as side guides for safe truck loading.

Custom sizes and capacities are available for fitting into nearly any application’s site requirements and space constraints.

Load Cells:
Rice Lake RL75058-LP alloy steel,
Double-ended beam
75,000 lb capacity

Mount Assemblies:
G-force self-checking mounting system

Junction Box:
JB8SPT Tuffseal® polycarbonate NEMA Type 4X enclosure with
overlapping solid cover, stainless steel screws

Platform Size:
10 to 117 ft length
11 ft, 12 ft or 14 ft width

Scale Profile:
15.5 in (no grout) 17 in (grout)
(custom profiles available)

Deck Thickness:
8 in

Full Scale Capacity:
Up to 270,000 lb

Concentrated Load Capacity (CLC):
120,000 lb

Dual Tandem Axle (DTA):
120,000 lb

Warranty:
Weighbridge: 5-year or 12-year limited
Parts: 5-year or 12-year limited, including lightning protection

Approvals:
NTEP 98-011, Class IIIL
Measurement Canada AM-5413

Resources / Downloads

Parts

11 Foot Width

Part # Description List Price Cart / Quote
44566 Truck Scale,10'x11' Siderail,120,000lb CAP,SR1011-SC-60,CLC=120,000lb

Consult

44567 Truck Scale,20'x11' Siderail,120,000lb CAP,SR2011-SC-60,CLC=120,000lb

Consult

44569 Truck Scale,35'x11' Siderail,120,000lb CAP,SR3511-SC-60,CLC=120,000lb

Consult

44570 Truck Scale,40'x11' Siderail,120,000lb CAP,SR4011-SC-60,CLC=120,000lb

Consult

44571 Truck Scale,47'x11' Siderail,120,000lb CAP,SR4711-SC-60,CLC=120,000lb

Consult

44572 Truck Scale,60'x11' Siderail,200,000lb CAP,SR6011-SC-100,CLC=120,000lb

Consult

44573 Truck Scale,70'x11' Siderail,200,000lb CAP,SR7011-SC-100,CLC=120,000lb

Consult

44574 Truck Scale,70'x11' Siderail,200,000lb CAP,SR7011-SC-100,CLC=120,000lb

Consult

44575 Truck Scale,80'x11' Siderail,200,000lb CAP,SR8011-SC-100,CLC=120,000lb

Consult

44577 Truck Scale,100'x11' Siderail,200,000lb CAP,SR10011-SC-100,CLC=120,000lb

Consult

44578 Truck Scale,117'x11' Siderail,200,000lb CAP,SR11711-SC-100,CLC=120,000lb

Consult

44568 Truck Scale,24'x11' Siderail,120,000lb CAP,SR2411-SC-60,CLC=120,000lb

Consult

12 Foot Width

14 Foot Width

Related Products

1280 Kiosk

1280 Truck Scale Kiosk

Rice Lake's 1280 Kiosk automated ticketing system simplifies truck weighing by eliminating the need to hand-write a ticket for every weighment. The state-of-the-art 1280 indicator features a large, vibrant touchscreen and web server connectivity.

Kiosk 1

Automated Ticketing Kiosks

Rice Lake's line of Automated Ticketing Kiosks eliminates the need to hand-write a ticket for each weighment, giving your system the efficiency it needs to keep up with growing business.

WEB SC ATK Ticketing

Printer Kiosks

Automated Ticketing Printer Kiosks improve more than just speed and accuracy. They offer state-of-the-art features like RFID, vehicle recognition and a durable, weatherproof design.

WEB SC Truck Scale Kiosk Saftey Arm

Truck Scale Kiosk Safety Swing-away Arm

Kiosk Safety Swing-Away Arms protect your kiosk investment from accidental collisions. Our Safety Swing-Away Arm will swing away from vehicle cabs and mirrors and return to center after contact.

WEB SC Ontrack Software

OnTrak® Truck Scale Data Management Software

OnTrak software is an effective data management tool for truck scale operations that use Rice Lake Automated Ticketing Kiosk (ATK) systems.

Loop

Loop Detectors

Loop detectors from Rice Lake are easily installed below ground at the entry or exit of your truck scale to detect vehicle movement.

1 US Trafficlight Collarring

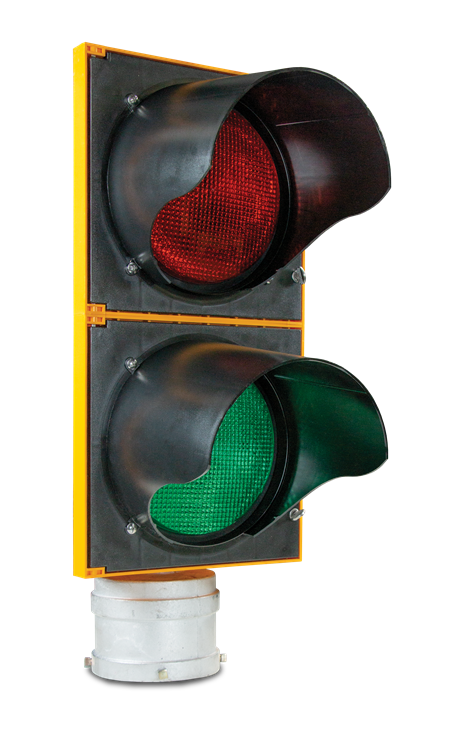

Traffic Light Kits

Traffic Light Kits from Rice Lake offer industrial-strength lighting systems that will professionally communicate the universal red and green stop/go commands at a distance for your truck scale system.

Photoeyes

Photo Eyes

Photo Eyes from Rice Lake are a simple solution for detecting vehicle movement and traffic flow. Photo eyes are very practical in many scale operations.

WEB SC Scale Intercom

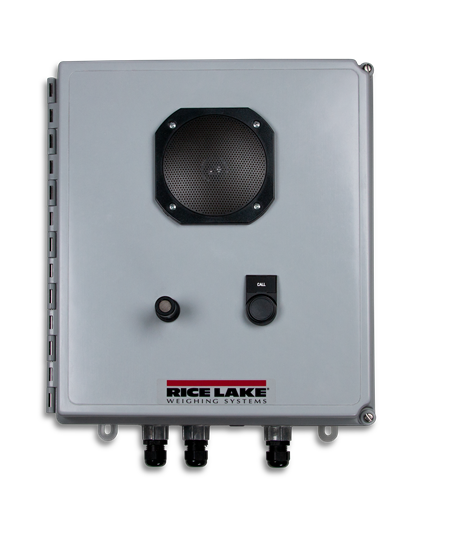

Intercom Kiosk
