VPG® Sensortronics® 60001 Alloy Steel, S-Beam Load Cell
Suitable for single- or multiple-cell tension load applications. Nickel plated, high-alloy steel construction. Complete with 20 ft of load cell cable and full environmental protection with stainless steel side plates. Capacities range from 25 lb to 20,000 lb. Capacities of 5,000 lb or higher have standardized output for multiple-cell installations.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
60001 Load Cell Specifications
|
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: Cable Color Code: Warranty: Approvals: |
60001 Load Cell Dimensions
| Rated Capacity | A | B | C | D | E |
|---|---|---|---|---|---|
| lb/in | |||||
| 25 to 200 | 1/4-28 UNF | 0.65 | 0.50 | 2.00 | 2.50 |
| 250 to 300 | 3/8-24 UNF | 0.75 | 0.50 | 2.00 | 3.00 |
| 500 to 2,000 | 1/2-20 UNF | 1.00 | 0.75 | 2.00 | 3.00 |
| 2,500 to 3,000 | 1/2-20 UNF | 1.25 | 1.00 | 2.00 | 3.00 |
| 5,000 | 3/4-16 UNF | 1.25 | 1.00 | 3.00 | 4.25 |
| 10,000 | 3/4-16 UNF | 1.25 | 1.00 | 3.50 | 4.75 |
| 15,000 | 1-14 UNS | 1.50 | 1.25 | 4.00 | 5.50 |
| 20,000 | 1 1/4-12 UNF | 2.25 | 2.00 | 5.00 | 7.00 |
Resources / Downloads
Parts
| Part # | Description | List Price | Cart / Quote |
|---|---|---|---|
| 61116 | Load Cell,SBM 60001A25- 1177 25lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67 |
List Price: $312.00 |
|
| 61117 | Load Cell,SBM 60001A50- 1177 50lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67 |
List Price: $312.00 |
|
| 61118 | Load Cell,SBM 60001A100- 1177 100lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67 |
List Price: $312.00 |
|
| 61119 | Load Cell,SBM 60001A200- 1177 200lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM |
List Price: $312.00 |
|
| 61120 | Load Cell,SBM 60001A250- 1177 250lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67 |
List Price: $312.00 |
|
| 61121 | Load Cell,SBM 60001A300- 1177 300lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67 |
List Price: $312.00 |
|
| 61122 | Load Cell,SBM 60001A500- 1177 500lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67 |
List Price: $312.00 |
|
| 61123 | Load Cell,SBM 60001A750- 1177 750lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67 |
List Price: $312.00 |
|
| 61124 | Load Cell,SBM 60001A1K- 1177 1000lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67 |
List Price: $312.00 |
|
| 61125 | Load Cell,SBM 60001A1.5K- 1177 1500lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67 |
List Price: $312.00 |
|
| 61126 | Load Cell,SBM 60001A2K- 1177 2000lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67 |
List Price: $312.00 |
|
| 61127 | Load Cell,SBM 60001A2.5K- 1177 2500lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67 |
List Price: $355.00 |
|
| 61128 | Load Cell,SBM 60001A3K- 1177 3000lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67 |
List Price: $355.00 |
|
| 61129 | Load Cell,SBM 60001A5K 1177 5000lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67 |
List Price: $503.00 |
|
| 61130 | Load Cell,SBM 60001A10K- 1177 10,000lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67 |
List Price: $503.00 |
|
| 61131 | Load Cell,SBM 60001A15K- 1177 15,000lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67 |
List Price: $609.00 |
|
| 61132 | Load Cell,SBM 60001A20K- 1177 20,000lb 20ft Sensortronics 3mV/V 350 OHM WW NTEP III 5S/ IIIL 10S FM IP67 |
List Price: $949.00 |
Related Products
Rice Lake RL20000I Alloy Steel, S-Beam Load Cell
The alloy steel, Rice Lake RL20000I S-beam load cell is ideally suited for scale conversions and general purpose weighing.

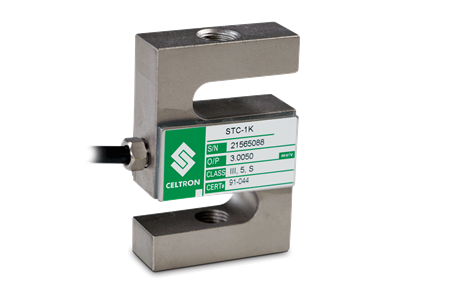

VPG® Celtron® STC Alloy Steel, S-Beam Load Cell
