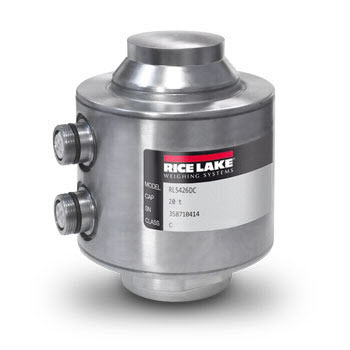

RL5426D Compression Canister Load Cell

Digital canister load cells for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, IP68 protection degree, 4000 divisions

Specifically developed for working without junction box.

CAPACITY: 40 Tonne

OIML R60. C4 precision class.

Stainless steel body. IP68 Protection Degree.

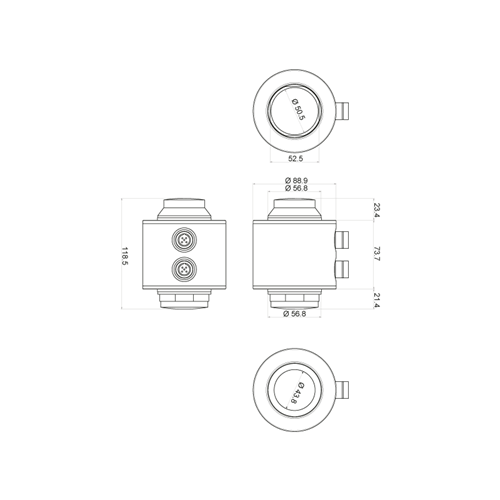

h= 150 mm.





Request More Information

TECHNICAL FEATURES

Metrological Features

  • Rated capacity: (full scale) 40 Tonne
  • Combined error: 0,022 % full scale
  • Creep error (after 30 min.): 0,14 % full scale
  • Temperature effect on zero: 0,02 % full scale/10°C
  • Temperature effect on sensitivity: 0,01 % full scale/10°C
  • Non-linearity error: 0,015% full scale
  • Non-repeatability error: 0,006% full scale

OIML R60

  • Vmin= Emax/18000
  • Accuracy class: C4
  • Max. number of intervals: 4000e (EC Test Certificate, according to OIML R60 (2000))

Electronic/Mechanical Features

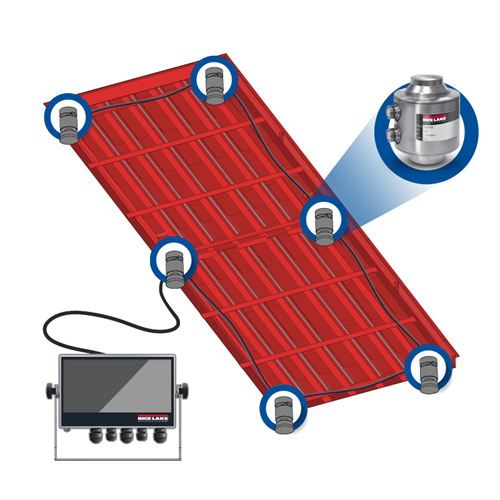

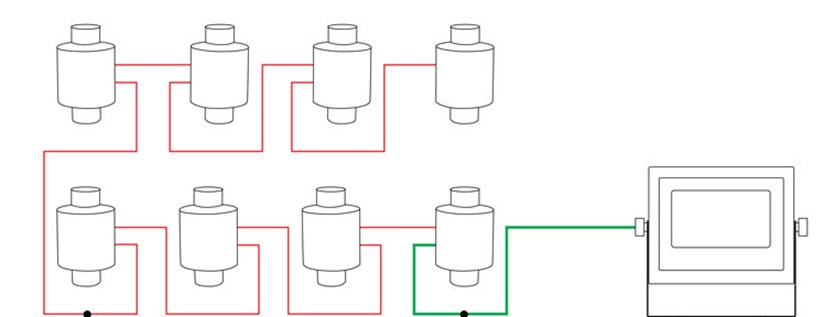

  • Interconnection without any junction box through double-connectors from load cells to weight indicator directly
  • Direct connections prevent manipulation of "weight data"
  • Stainless steel connections for anti-rodent protection
  • Lightening protection withstands up to 100000 amperes, ensuring operational continuity and system integrity even in extreme conditions
  • Gas dischargers to protect against atmospheric discharges
  • Half duplex RS485 communication technology
  • 4-core RS485 cable as optional with stainless steel shield, diameter 7mm
  • System is equipped with anti-rotation, designed for self-alignment during weighments

Power Supply:
8...15 V (AC or DC)

Rated Digital Output:
40000 d

Current Consumption:
35 mA

Internal Resolution:
24 bit

Converter Rate:
max. 40 conv./sec.

RS-485 Communication Speed:
Max 100kHz.

Operating Temperature:
-35 ~ +70 °C

Compensated Temperature:
-10 ~ +40 °C

Storage Temperature limits:
-40 ~ 80 °C

Safe Load Limit:
150% F.S.

Ultimate Overload:
300% F.S.

Rating/Material:
IP68 protection degree
Stainless steel body
