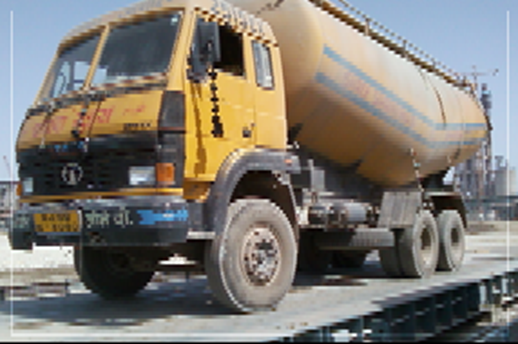

Rice Lake India Vehicle Scales
The main structure of the weighbridge is steel and the deck is concrete for extra traction and easy repair. The front, back and speed of the vehicle are identified by infrared light curtains. All load cell cables are run through metal conduit, with flex conduit fittings at the load cell, to provide ultimate protection. A double-ended shear beam load cell is used with the G-Force™ mounting system to ensure a fast return to center before weighing each axle. After the individual axles are weighed, the total weight of the vehicle is displayed on a digital weight indicator.
Pitless Type Weighbridges
- Above ground level
- Ramps provided on either side to Mount the weighbridge platform
- Easy access to loadcells
- Very less maintenance
- Absolute visibility
Pit Type Weighbridges
- Top of deck matches ground level
- Structure, loadcells, pedestals below ground level
- Area required – weighbridge size
- Natural drainage required
- No access to weighbridge components for outsiders

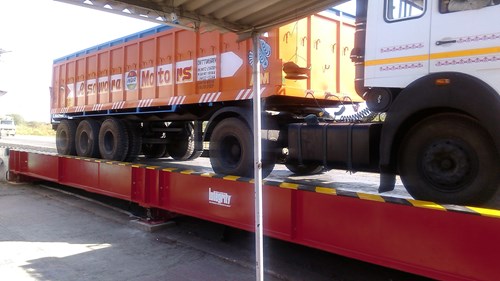

Integrity Series Weighbridges |
Introducing Rice Lake’s Integrity Series, heavy-duty, modular road-weighbridges built to last for many years to come. Integrity weighbridges use more ISMB I-beams and steel than competing models. Modular sections can be easily installed as a surface or pit mount.
The Integrity Series comes standard with Rice Lake’s patented G-Force self-check-ing mounting system or a traditional compression type load-cell mount. Either way, at just 419 mm, Integrity weighbridges are a low-profile answer to almost any weighing need. Anti-skid surface strips, load-cell access holes, and standard-sized manhole covers put Integrity at the top of the market for ease of maintenance. Crafted with care and designed with you in mind. It’s the reason Rice Lake scales have the reputation they do, and the reason so many customers trust our products throughout the world. More steel. More ruggedness. More pride. The strongest weighbridges on earth.
Integrity Series Steel Deck Top Access Weighbridge
Performance
- Strongest weighbridge for long-lasting durability
- Faster, more accurate weighments—less wear with G-FORCE™ mounting system
- Concentrated Load Capacity (CLC): 41,000 kg
- Dual Tandem Axle rating (DTA): 41,000 kg
Features
- Available for above ground or pit installations
- Top access to load cells and junction boxes for easy installation and maintenance
- All load cell cable is run through factory-installed metal conduit with flex-conduit hub fittings from load cell to provide ultimate protection
- Dimensioned to easily fit existing foundations
Capacity of Weighbridges:
- 30, 40, 50, 60, 80, 100, 120, and 150 metric tonne plus custom capacity
Length of Weighbridges:
- 6, 7, 9, 12, 14, 16, 18 and 20 meters plus custom length
Width of Weighbridges:
- 3, 3.5, and 4.0 meters plus custom width
Value.
- Lasts for generations
- Manufactured in accordance with ISO-9001 and Service.
- Our philosophy, “Take care of the customer, and the rest of the business will take care of itself.”
- Factory-trained service engineers are strategically located throughout India to respond quickly and provide the absolute best support.

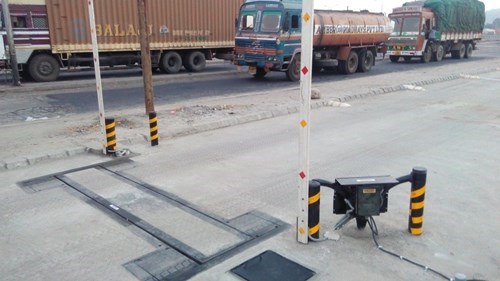

Integrity Series WIM (Weigh-in-Motion)
Integrity Series WIM
Rice Lake India’s vehicle scale systems set the industry standard with innovative designs that provide reliable performance under the most demanding conditions. The Integrity Series is the strongest in-motion weighbridge, using the latest Finite Element Analysis (FEA) technology to give users the longest lasting durability for generations. The WIM is manufactured in accordance to ISO 9001 standards and provides faster, more accurate weighments.
What is the WIM?
The WIM is a load cell based system that measures the axle weight of vehicles traveling between 5 and 10 kmph to estimate the vehicle weight. This system can be used to check the weight of vehicles traveling on the highway. It will determine if a vehicle is overloaded or falls outside load limits and needs to be screened for static weight.
Standard Features
Length: 7 m*
Width: 3, 3.5 and 4 m*
Capacity: 30,000 kg*
Concentrated Load Capacity: 30,000 kg
Dual Tandem Axle (DTA) Rating: 30,000 kg
Display Resolution: 10 kg
Safe Overload: 150% of rated capacity
Accuracy: +/- 2% of rated load
*Custom capacity, length and width available by request
Optional Features
The WIM can be customized with optional features, including traffic signals, data management software, printers and boom barriers. Contact a certified Rice Lake Weighing Systems India dealer to discuss the best features for your application.
Concrete Deck Weighbridges |
WHY pay more when the steel price is sky rocketing globally?
Concrete deck is better:
- Rugged
- Anti Corrosive
- Maintenance. free
- Value for Money
- Strongest Weigh Bridge on Eart
Comes with Superior Quality Double Ended Shear Beam with 3mV / V sensitivity, Faster Zero return, No check rods, No Bumper bolts.
Say YES: - To SWITCH to Concrete Deck to save money
“ Better than steel deck in following locations”
- Chemical plants
- Petrochemical plants
- Fertilizer Plants
- Coastal area
- Marine Environment
- Ports
- Saline atmosphere

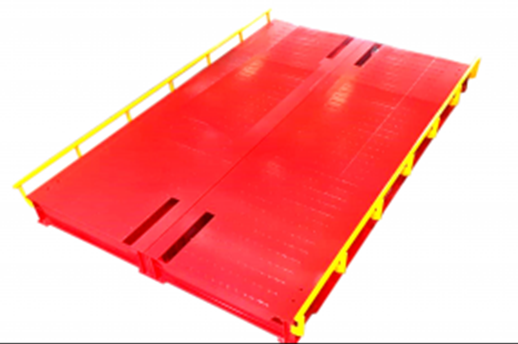

Dumper Weighbridges |
- Capacity ranges from 80T to 150T
- Platform size varies
- Maximum number of dumper weighbridge installations in India by a Single Company
- Heavy duty rugged design – decades long longevity
- Superior quality Double Ended Shear Beam with each loadcells up to 56.5T capacity
- Caters to Dumper Models, BEML, HML, VOLVO, KOMATSU, TEREK
Portable Weighbridges |
Unmanned Weigh Cabins |
|
|
Rail Weighbridges |
In-Motion
- Size vary from 10.7M to 12.3M length with 2.1M width weighbridge
- Weighbridge rail and approach rail matches and structural and the loadcell below the ground level
- Stability provided with lateral and Longitudinal
- Check rods
- Accuracy as good as static truck scales
- Positioning can be automated using track switches / photo sensors

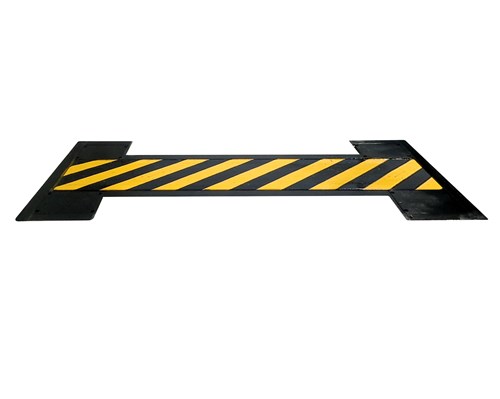

Axle Weighers |
Single Axle
|
Multi Axle
|
Wheel Weighing |
- Reduced height only 50mm
- Wheelpad made in a special alloy.
- IP68 Stainless steel load cells
- Built-in weight Indicator into the platform with IP68 Protection
- Internal rechargeable battery with long life
- Nonslip rubber applied under the platform for good grip on all types of surfaces
