Onboard Weighing Components

Onboard weighing components such as load cells and indicators can be used to create a Precision Loads system. Factory consultation allows you work with an expert to create your ideal onboard weighing solution.

Filter Results

  • Precision Loads Components

Category

Onboard Weighing Component

OB 350

Onboard Indicator Kits

The onboard weight indicator kits are simple to operate and suit all kinds of commercial vehicle operations.

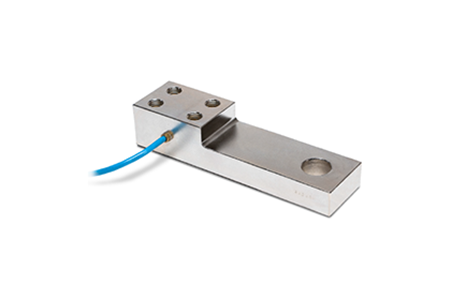

PL9000 11

PL9000-11 Alloy Steel, Environmentally Sealed Load Cell

The PL9000-11 alloy steel load cell is environmentally sealed with an IP66 rating.

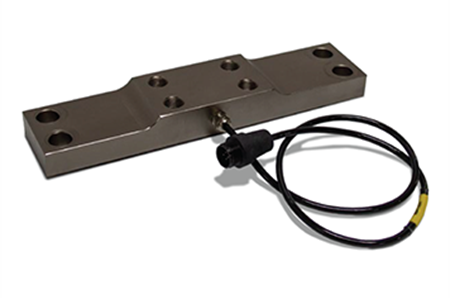

PL9000 14

PL9000-14 Alloy Steel, Hermetically Sealed Load Cell

The PL9000-14 is a low-profile load cell designed for onboard weighing applications with limited height.
With a single-piece bearing plate and an overall profile of only 2.4 inches, the PL9000-14 is ideal for applications with four- or six-point under-body mounts and body rest mounts.

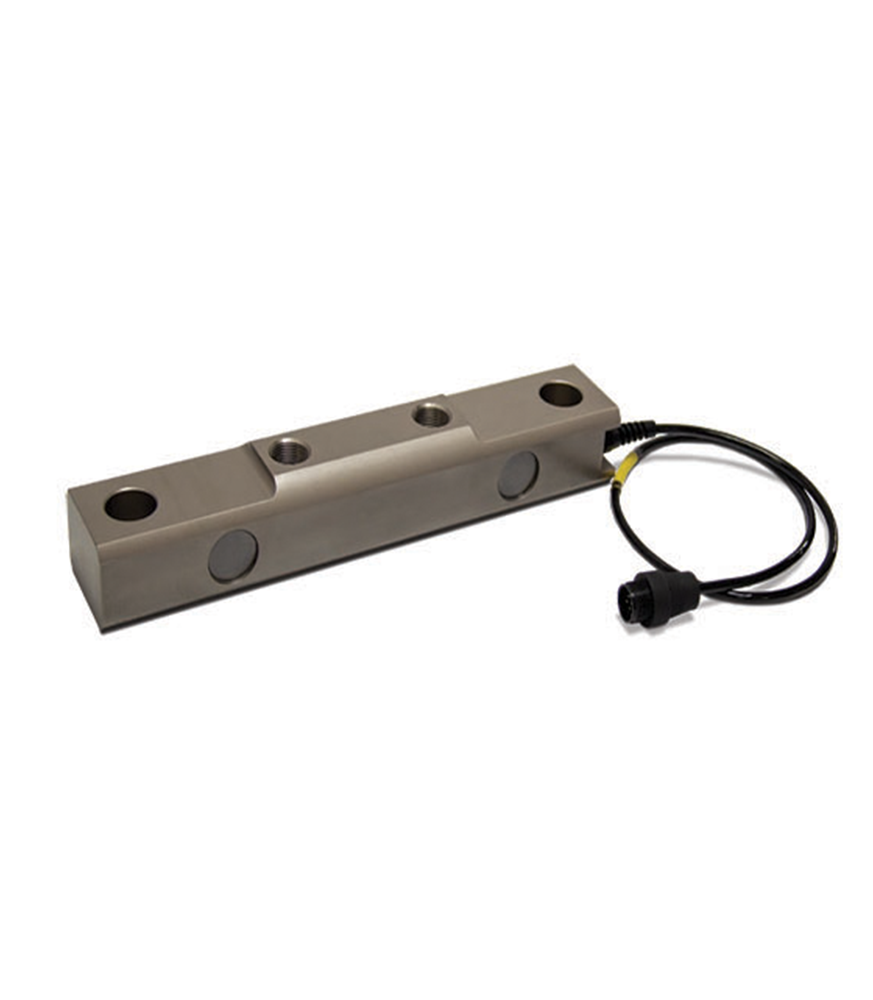

WEB SC PL9000

PL9000-14.4 Alloy Steel, Environmentally Sealed Load Cell

The PL9000-14.4 is ideal for under-body and body rest mounts in four- or six-point system configurations. This load cell offers higher load ratings with a single-piece bearing plate and overall length of 14 inches.

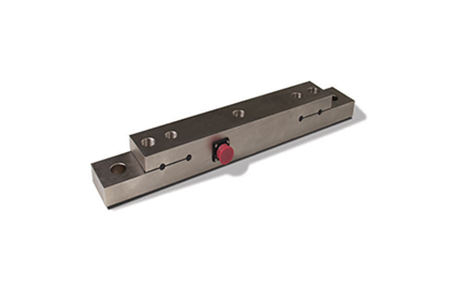

PL9000 22

PL9000-22 Alloy Steel, Environmentally Sealed Load Cell

The PL9000-22 is designed for under-body mounts and low-profile axle scales such as Rice Lake's AX3040.
The PL9000-22 has a 2.4-inch profile and 22.6-inch length.

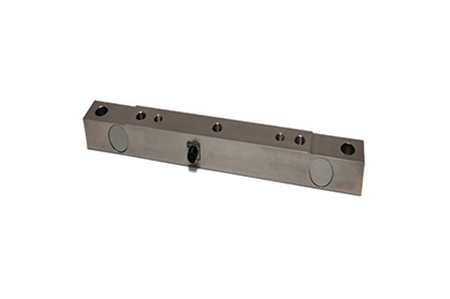

PL9000 26

PL9000-26 Alloy Steel, Hermetically Sealed Load Cell

The PL-9000-26 alloy steel load cell is hermetically sealed with an IP68 rating and has a .0725mV/V output at 12,500 lbs.

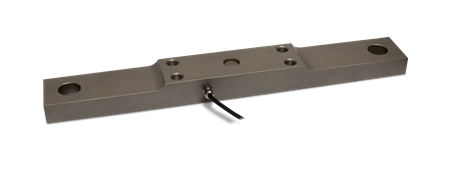

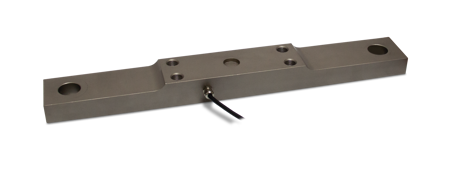

PL9000 50

PL9000-50 Alloy Steel, Hermetically Sealed Load Cell

The PL9000-50 alloy steel load cell is sealed to IP68 and has a 0.25mV/V output at 12,500 lbs.

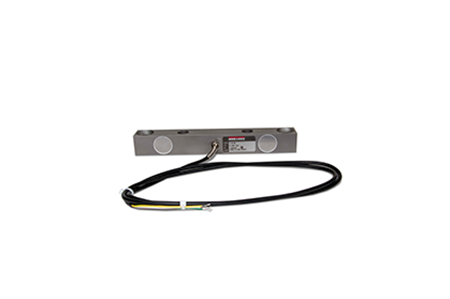

PL9100 5K

PL9100-5K Stainless Steel, Environmentally Sealed Load Cell

The PL-9100 5K stainless steel load cell is environmentally sealed with an IP67 rating and has a 2.0mV/V output.

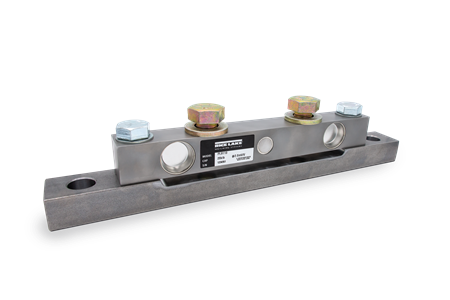

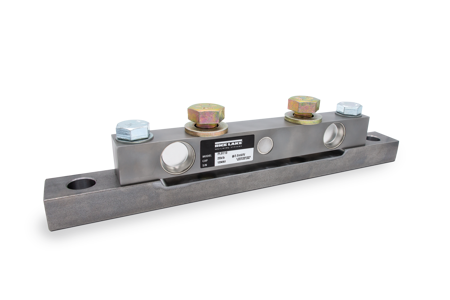

1 PL9110 Load Cell Only Rightfacing

PL9110 Stainless Steel, Hermetically Sealed Load Cell

The PL9110 double-ended shear beam load cell is ideal for weighing equipment typically fixed to a truck body.

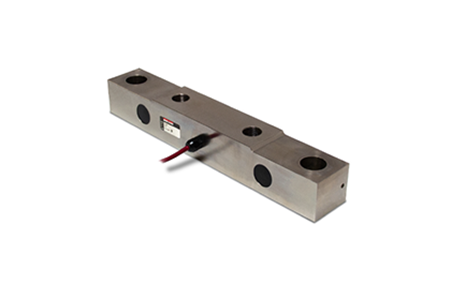

PLSB 125K

PLSB-125K Alloy Steel, Environmentally Sealed Load Cell

The PLSB-125K alloy steel load cell is environmentally sealed with an IP66 rating and has a 1.75 mV/V output.

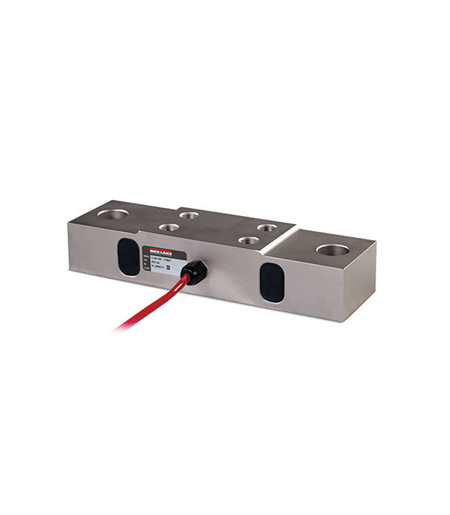

WEB SC PLSB 25K

PLSB-25K Alloy Steel, Environmentally Sealed Load Cell

The PLSB-25K is used in Rice Lake's twist-lock and stacking cone mount assemblies. This rigid mount, double-ended shear beam load cell is used when a series of mounts are not fixed to a frame at all times.

PLSB 40K

PLSB-40K Alloy Steel, Hermetically Sealed Load Cell

The PLSB-40K alloy steel load cell is hermetically sealed with an IP68 rating and has a 0.75 mV/V output at 12,500 lb.
