260-10-1 Bariatric Handrail Scale

  • Large LCD display
  • Antimicrobial keypad
  • Handrail for support and safety
  • Two wheels for ease of portability
  • Nonskid platform
  • Unit of measure toggle or locking
  • Motiontrap™ movement compensation technology
  • EMR capable
  • Tare function
  • Hold function
  • BMI (body mass index) function
  • Factory calibrated

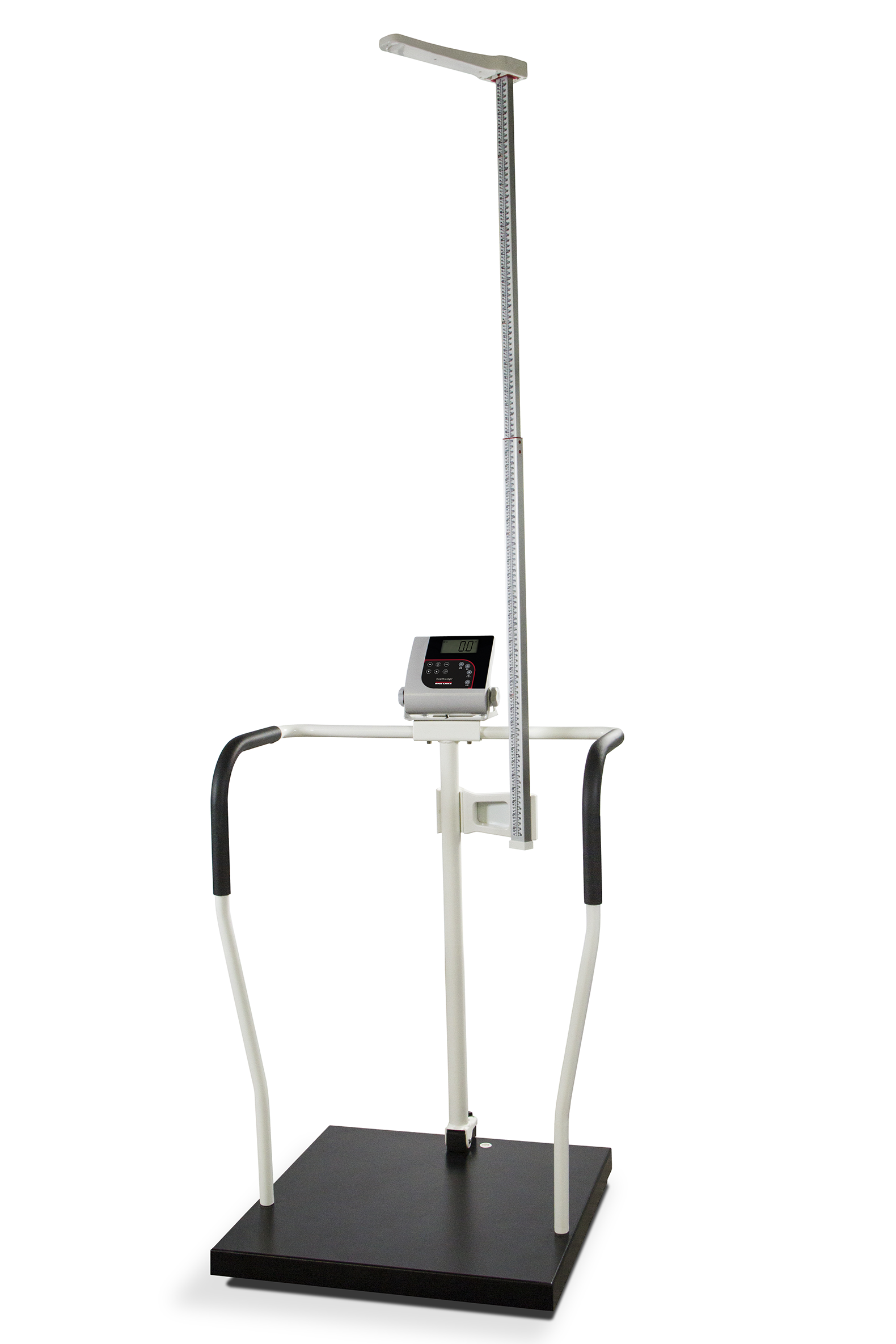

  • Optional height rod can be installed on-site

Same-day Shipping Available

Request Quote

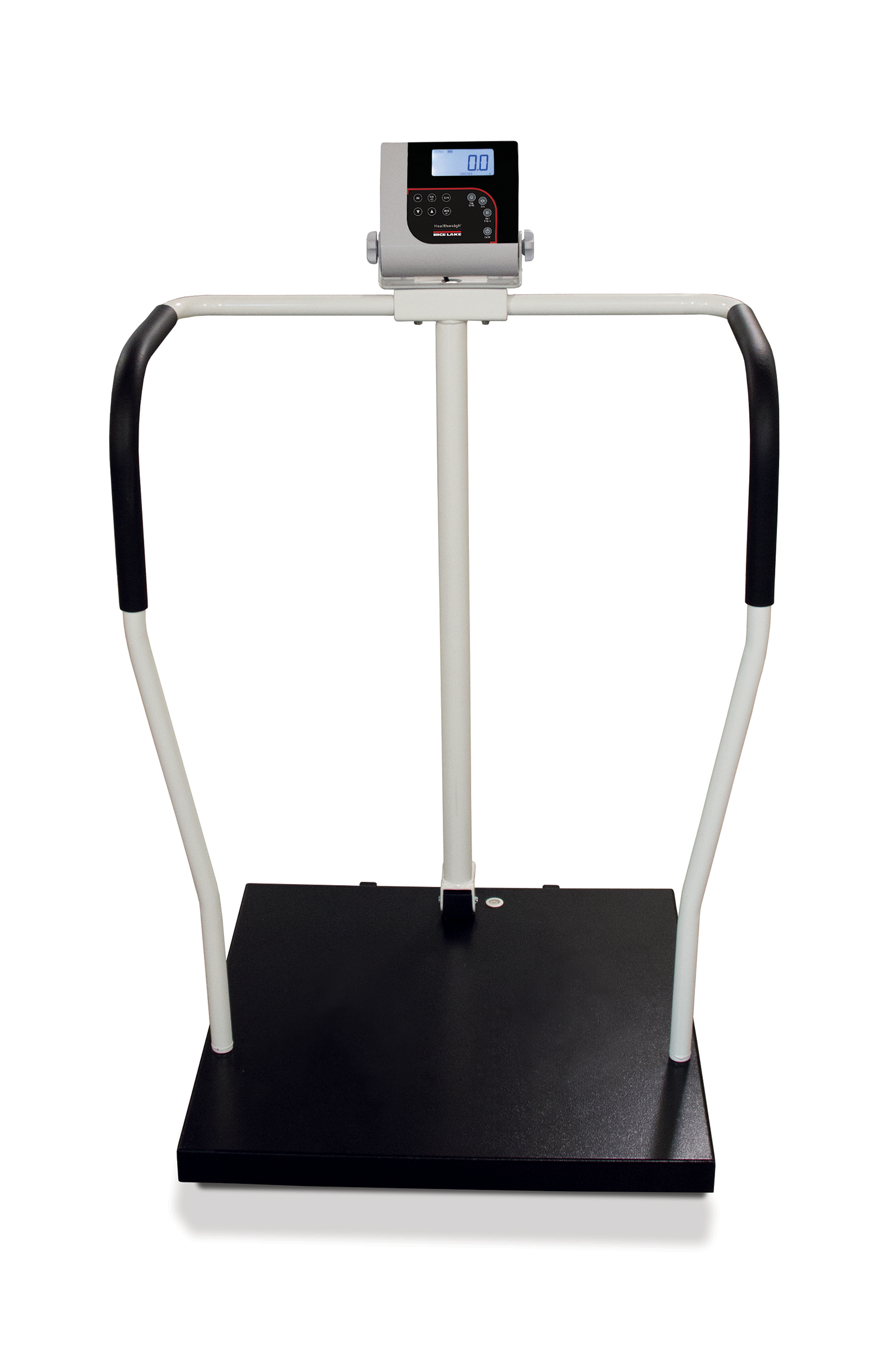

260-10-1 Bariatric Handrail Scale

Bariatric Handrail Scale for Extra Support

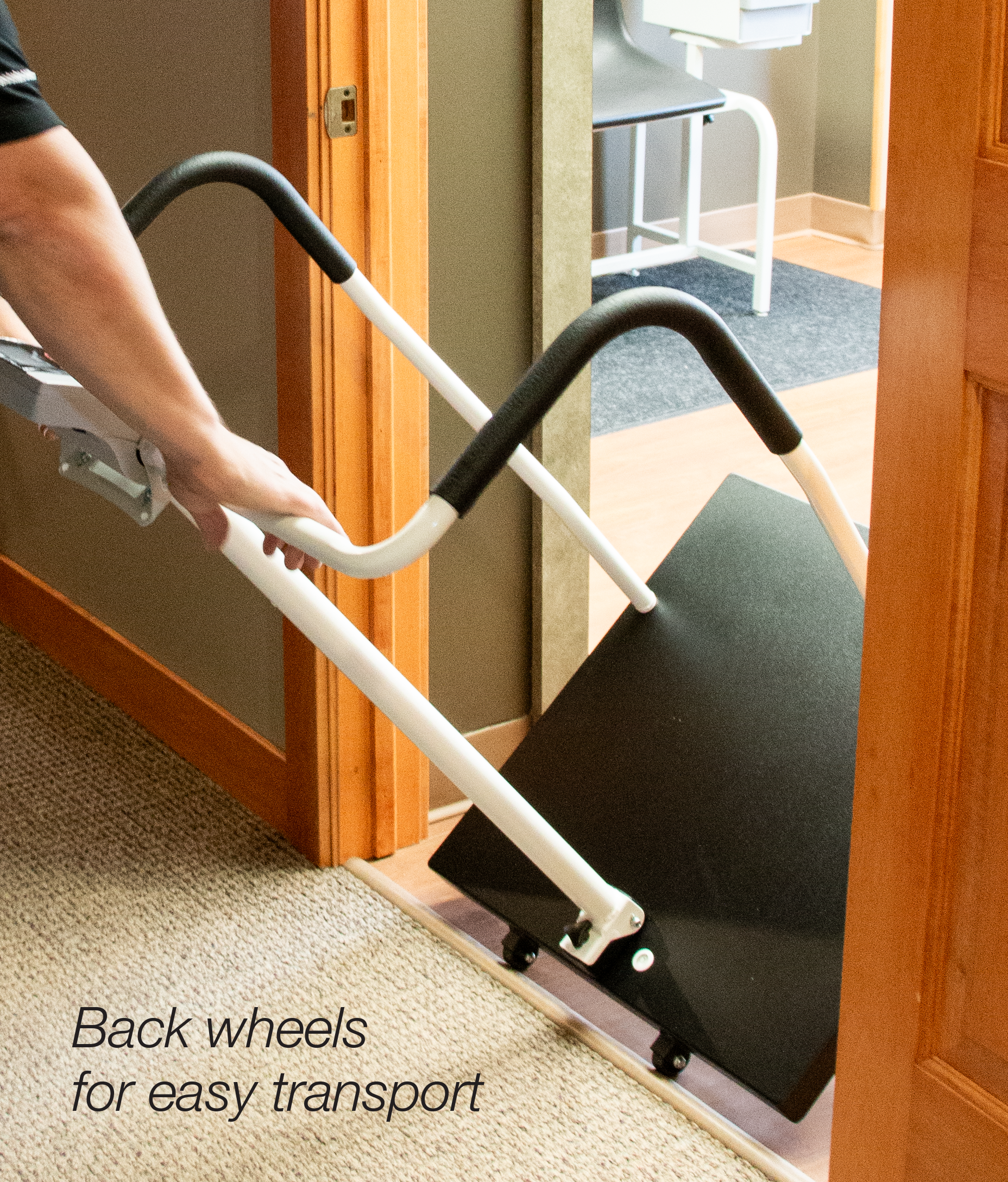

Rice Lake's Healthweigh® 260-10-1 bariatric scale with handrail is designed for weighing patients who need extra support and safety.  Height and weight can be seamlessly captured with the optional integrated height rod. Advanced movement compensation technology eliminates errors caused by involuntary movement of unsteady patients. Two heavy-duty rear wheels make it simple and effortless to move and store.

Capacity:
800 × 0.2 lb (360 × 0.1 kg)

Platform Dimensions:
(L × W × H)
24 x 24 x 2.75 in

Optional Height Rod Dimensions:
30 to 83.12 in (77 to 211 cm)

Power:
9 VDC, provided by six AA alkaline batteries (included) or AC adapter (optional)

Battery Type:
Six AA alkaline (included)

Battery Use:
25 hours continuous use with batteries
Automatic power-off can be configured

Display:
5-digit LCD display, 0.75 in (1.9 cm) digit height

Temperature:
Operating:
50 °F to 104 °F (10 °C to 40 °C)

Warranty:
Two-year limited

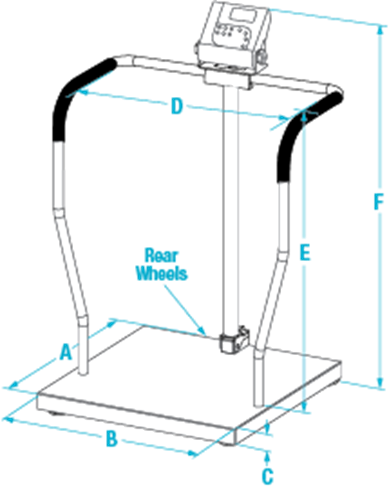

Dimensions
  Inches Centimeters
A 24.0 61.0
B 24.0 61.0
C 2.75 7.0
D 25.5 65.0
E 33.5 85.0
F 43.0 109.0







Shipping Weight
Part # Model # L (in) W (in) H (in) Package Wgt. (lb) Dim Wgt. (lb) Shipping Wgt. (lb)
170139 260-10-1 40 40 10 58 116 116
172958 Height Rod 33 9 3 3 7 7





Resources / Downloads

Title View Email Category Type
How to Clean Health Scales Email Health Scales Articles
The Importance of Medical Scale Calibration View Email Calibration Weights|Health Scales Articles
How Often Should You Calibrate A Medical Scale? View Email Health Scales Articles
Maintaining Medical Scales: 5 Ways to Care for Your Scale View Email Health Scales Articles
5 Reasons Why You May Need A Handrail Scale Email Handrail Scales|Health Scales Articles

Title Download Email
260-10-1 Replacement Parts Catalog Page Download Email
260-10-1 Bariatric Handrail Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
Bariatric Handrail Scale 260-10-1 Operation Manual A Download Email Health Scales No
Bariatric Handrail Scale 260-10-1 Technical Manual A Download Email Health Scales No
Height Rod Accessory - RL-260-10-1 Digital Handrail Scale Download Email Health Scales No
Bluetooth Low Energy (BLE) Demo for Rice Lake Medical Scales C Download Email Health Scales No
Bluetooth Setup Instructions for Rice Lake Medical Scales A Download Email Health Scales Yes

Title Collateral Wizard Request Download Email Category
Bariatric Handrail Scale 260-10-1 Request Download Email Health Scales|Handrail Scales
Medical Product Guide Request Download Email Health Scales
Calibrating Patient Weighing Scales Collateral Wizard Request Download Email Health Scales

Title View Email Category
How Often Should You Calibrate A Medical Scale? Download Email Health Scales|Home Health Scales|Mechanical Health Scales|Load Cells|Weigh Modules
Medical Scale Maintenance Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Maintaining Medical Scales: 5 Ways to Care for Your Scale Download Email Health Scales|Home Health Scales|Mechanical Health Scales
Healthweigh Indicator Keypad and CPU Board Testing Download Email Health Scales
Healthweigh Indicators Load Cell Cable Connection Download Email Health Scales|Home Health Scales|Mechanical Health Scales

Title View Download Email Category
Unpacking and Assembling Rice Lake's 260-10-1 Bariatric Handrail Scale View Download Email Health Scales|Handrail Scales
Accurate Patient Weighing With Rice Lake View Download Email Health Scales
Health Scale Product Line Overview View Download Email Health Scales|Wheelchair Scales|Chair Scales|Pediatric Scales|Mechanical Health Scales|Home Health Scales
Adjusting ATOL (Average Time of Lock) on Rice Lake Medical Indicators View Download Email Indicators / Controllers
ScaleTalk: How to Test the Keypad & CPU on Healthweigh Indicators View Download Email Health Scales
ScaleTalk: How to Connect the Load Cell Cable on Healthweigh Indicators View Download Email Health Scales|Load Cell Cable

Title Download Email Category
260-10-1 Bariatric Handrail Scale Warranty Download Email Health Scales

Title Download Email Category
Prescription Dosing Depends on Weight Download Email Health Scales
Limpieza en Forma Correcta de Basculas de Asistencia a La Salud de Rice Lake Download Email Health Scales
How To Properly Clean Rice Lake Health Scales Download Email Health Scales

Parts

Part # Description List Price Cart / Quote
170139 Scale,Handrail Model 260-10-1 800lb(360kg) x 0.2lb(100g)

List Price: $1,175.00

Options

Part # Description List Price Cart / Quote
133077 Power Supply,+9.0V Wall rated input voltage 100-240VAC, Operating range 50/60Hz, rated input frequency 0.2A max, UL approved range 50/60Hz, rated input frequency 0.2A max, UL approved

List Price: $25.00
102508 Power Cord, 220VAC AC, 9VDC 500MA, Healthweigh (includes EU plug)

List Price: $30.00
172958 Height Rod, 260-10-1

List Price: $75.00
81076 Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson

List Price: $445.00
186830 Cable, RS-232 scale to printer, 6ft, 25-pin D-Sub(male) to RJ-45

List Price: $69.00
79074 Cable, USB 6ft USB-A (male) to USB-B (male)

List Price: $35.00
217091 Cable Assy, Communication, DB9 Female to RJ45 Female, 4 Conductor 26 AWG, PVC Jacket

List Price: $25.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC 250 10 2

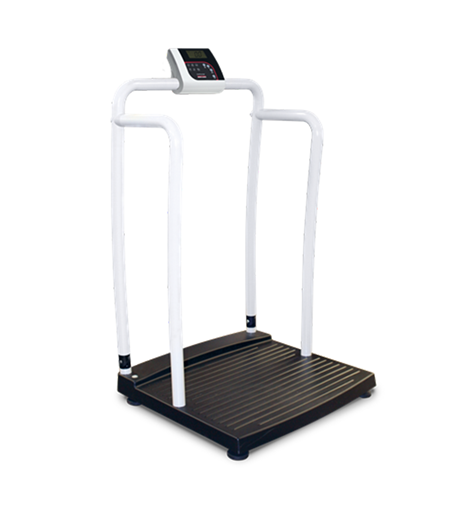

250-10-2 Bariatric Handrail Scale

Rice Lake's Healthweigh® 250-10-2 bariatric scale with handrail is designed for weighing patients who need extra support and safety.

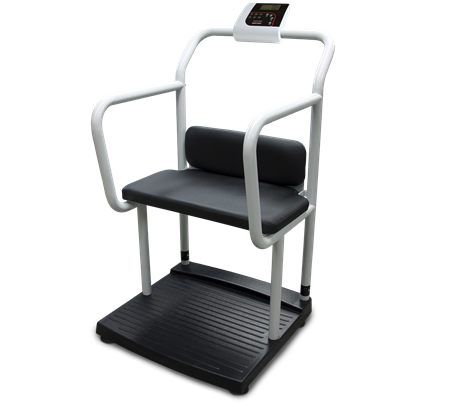

250-10-4 Bariatric Scale with Handrail and Chair Seat
