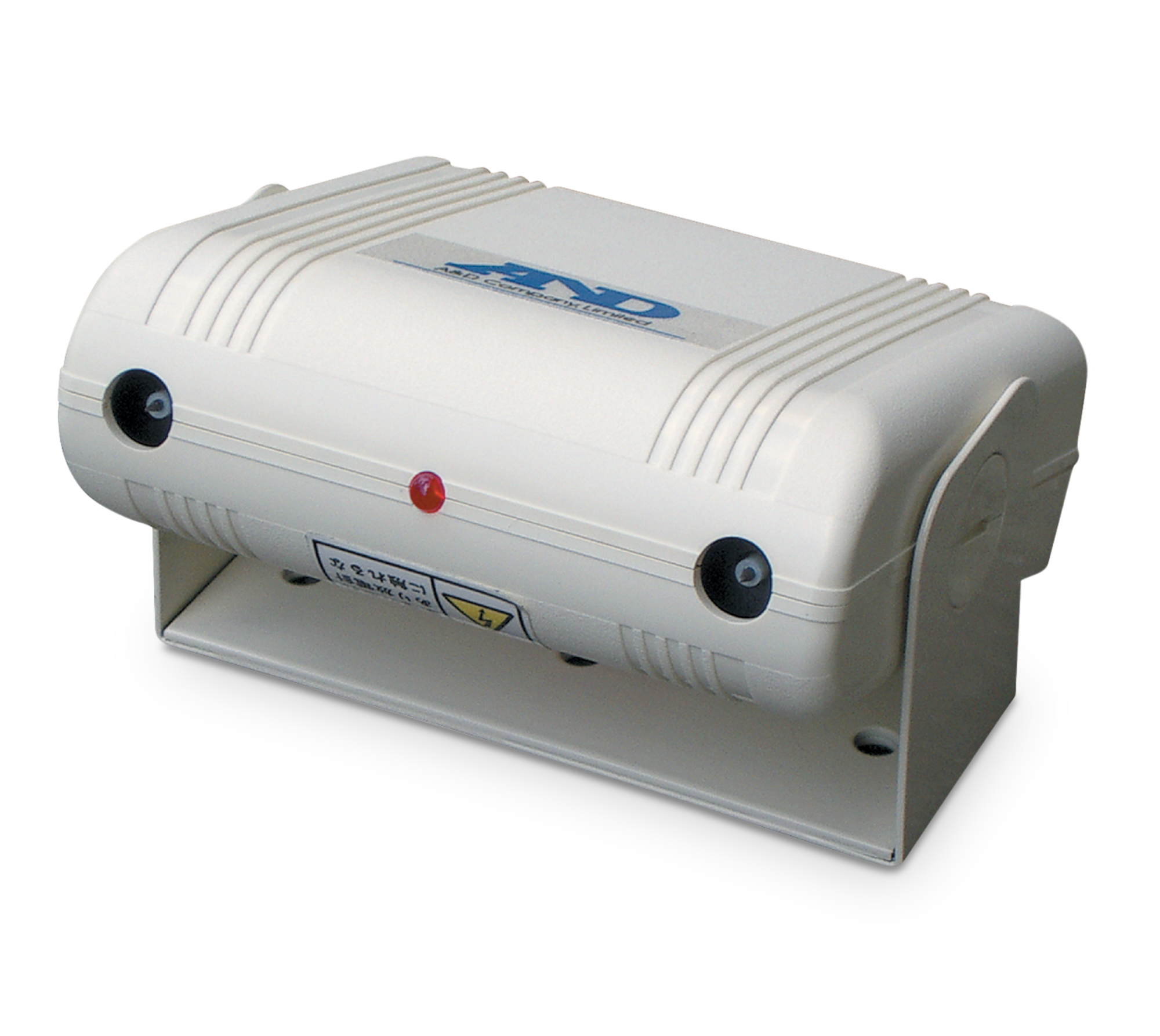

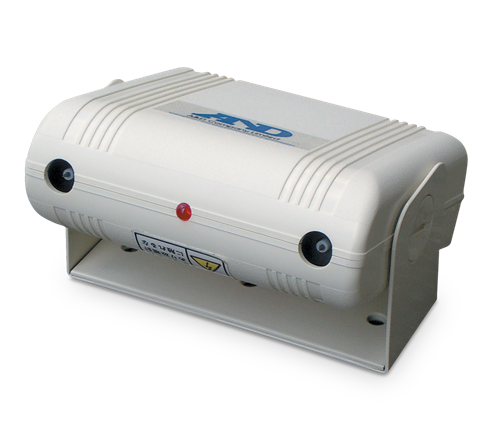

A&D Weighing AD-1683 Static Eliminator
- Can be easily and safely installed; requires no high-voltage wiring
- Eliminates static charges from quickly running or highly electrified work pieces
- Little or no reverse charge is induced by irradiated ions because of its excellent ion polarity or the potential of the charged object
- Achieves static elimination with a huge degree of efficiency regardless of the polarity or the potential of the charged object

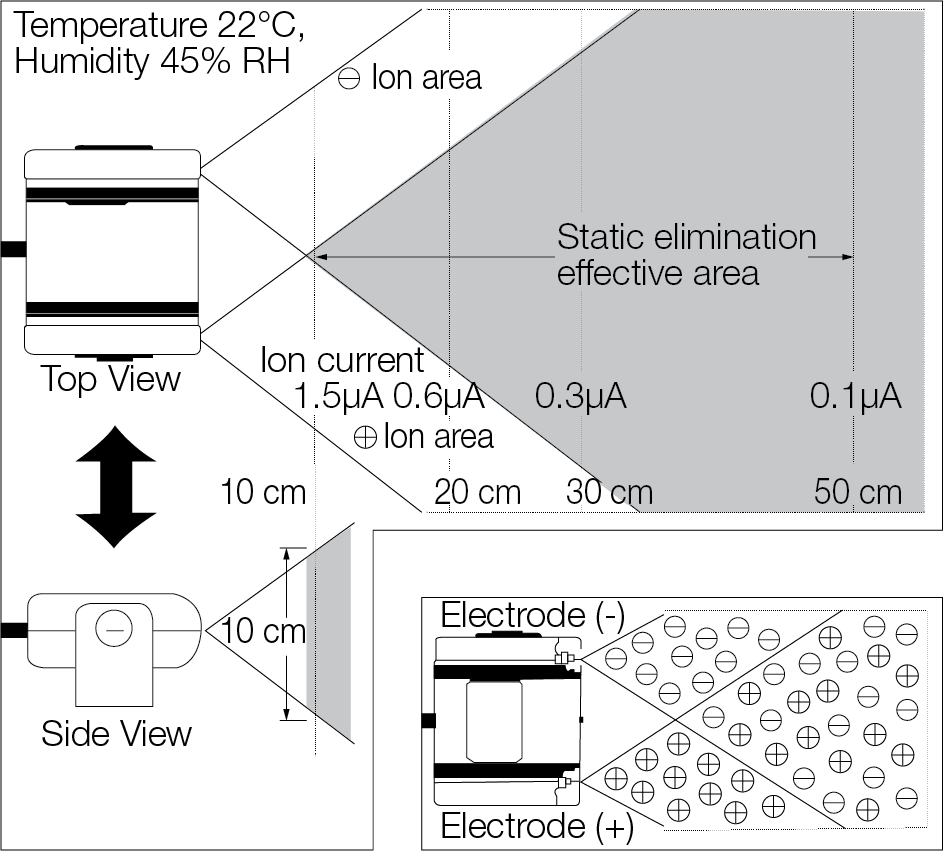

- Suited for static elimination in narrow and remote places because of its lengthy ion irradiation distance
- Produces only a little amount of ozone thanks to its high ion generation efficiency
- A current limiting circuit is incorporated in the ion generating electrode to reduce the possibility of electric shock
- No swing in surface potential of the charged object
AD-1683, A&D Weighing Static Eliminator Specifications
Power: Elimination Range: Static Elimination Method: |
Static Eliminating Electrode: Est. Weight: |
Power: Warranty: |
AD-1683, A&D Weighing Static Eliminator Models
Model | Elimination Range | Static Elimination Method |
Static Eliminating Electrode |
Environmental Conditions |
Weight | Part # |
---|---|---|---|---|---|---|
AD-1683 |
Distance: 10 to 30 cm |
DC corona discharge |
Tungsten emitter |
-5 °C to 40 °C, |
300 g |
97610 |
Resources / Downloads
Parts
Part # | Description | List Price | Cart |
---|---|---|---|
97610 | Balance OPT,Static Eliminator A&D AD-1683 |
List Price: $1,440.00 |
