A&D Weighing GX-K Series

  • Internal calibration
  • Auto environmental compensation

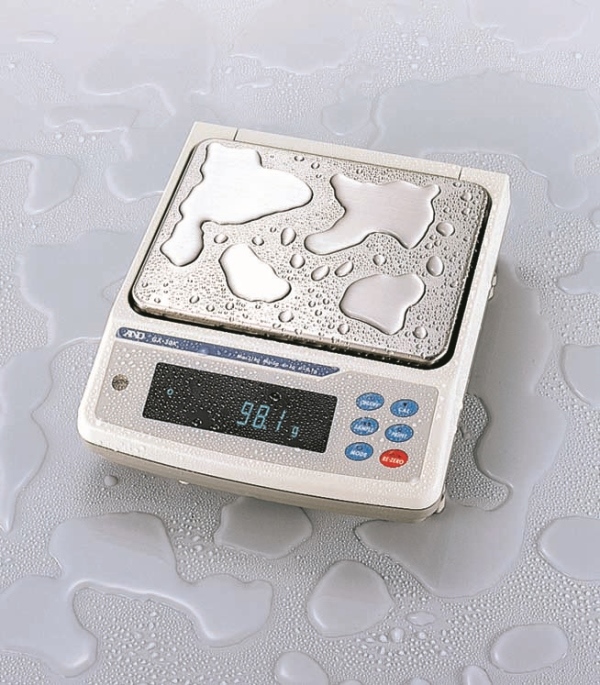

  • IP65/NEMA Type 4
  • RS-232 interface for connecting to printer or PC
  • Data memory function
  • Quick reference operation card
  • Time and date
  • Vacuum Fluorescent Display (VFD)
  • Underhook weighing
Request More Information

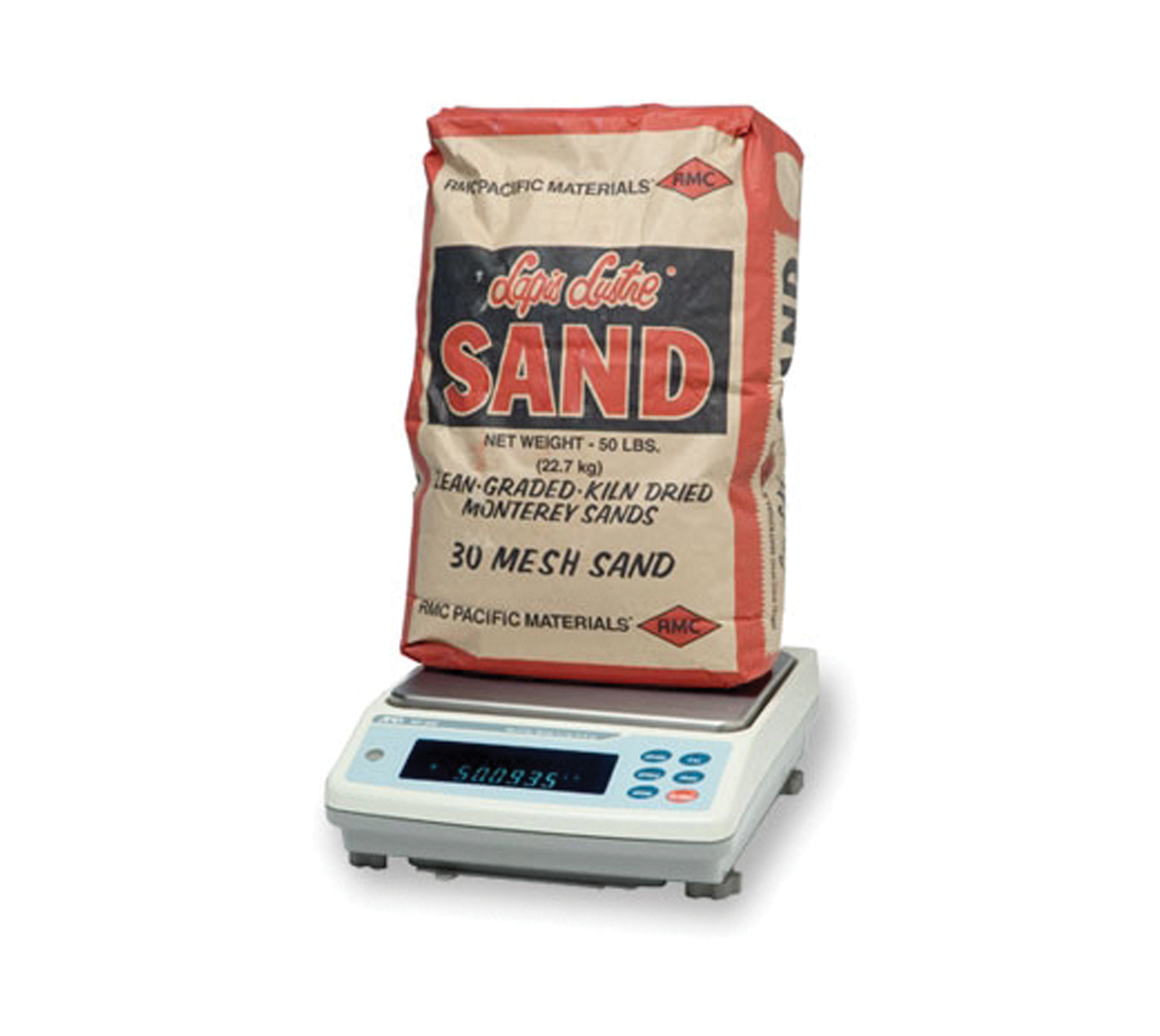

GX K

An Industrial Balance with Unmatched Precision

The GX-K Series industrial balances from A&D Weighing handles industrial applications with precision normally associated with smaller balances. The internal calibration and auto environmental compensation feature supports its accurate weighing capability (readability: 0.01 to 1 gram). Multiple units of measure are available in standard capacities ranging from 8100 to 31,000 grams.

  GX-8K GX-8K2 GX-10K GX-12K
Part # 97776 97775 97777 97778
Capacity 8.1 kg 8.1 kg/2.1 kg 10.1 kg 12 kg
Resolution 0.01 g 0.1 g/0.01 g 0.01 g 0.1 g
Operating Modes Counting, Percentage
Repeatability 0.01 g 0.05 g/0.01 g 0.01 g 0.1 g
Linearity ±0.02 g ±0.1 g/±0.02 g ±0.03 g ±0.2 g
Stabilization Time Approx 1.5 seconds
Sensitivity Drift (10° C-30° C) ±2 ppm/° C ±3 ppm/° C ±2 ppm/° C ±3 ppm/° C
Operating Temperature 41° F to 104° F (-5° C to 40° C)
Pan Size 10.62 x 8.26 in (270 x 210 mm)
Dimensions 11.81 x 13.98 x 4.37 in (300 x 355 x 111 mm)
Weight 18.3 lb (8.3 kg)
External cal mass 2, 3, 4, 5, 6, 7, 8 kg 10 kg 5, 10 kg
Power 120 /240 V AC adapter
Warranty Five-year Limited Warranty
Return Policy A&D Weighing Standard Policy - restock fee may apply
UNIT OF MEASURE
Decimal Ounce 285.7190 x 0.0005 oz 285.720 x 0.005/74.0755 x 0.0005 oz 370.4 x 0.0005 oz 423.290 x 0.005 oz
Troy Ounce 260.4210 x 0.0005 ozt 260.420 x 0.005/67.5165 x 0.0005 ozt 337.6 x 0.0005 ozt 385.810 x 0.005 ozt
Pennyweight 5208.42 x 0.01 dwt 5208.4 x 0.1/1350.33 x 0.01 dwt 6751 x 0.01 dwt 7716.2 x 0.1 dwt
Carat 40500.00 x 0.05 ct 40500.0 x 0.5/10500.00 x 0.05 ct 50500 x 0.05 ct 60000 x 0.5 ct
Momme 2160.000 x 0.005 mom 2160.00 x 0.05/560.000 x 0.005 mom 2800.000 x 0.005 mom 3200.00 x 0.05 mom
Grain 125002.2 x 0.2 GN 125002 x 2/32408.0 x 0.2 GN 162040 x 0.2 GN 185188 x 2 GN
Pound 17.85745 x 0.00005 lb 17.8575 x 0.0005/4.62970 x 0.00005 lb 23.15 x 0.00005 lb 26.4555 x 0.0005 lb
Pound/Ounce 17 lb x 0.001 oz 17 lb x 0.001 oz 23 lb x 0.001 oz 26 lb x 0.01 oz



  GX-20K GX-30K GX-32K
Part # 97779 97780 97781
Capacity 20 kg 30 kg 30 kg/6.1 kg
Resolution 0.1 g 0.1 g 1 g/0.1 g
Operating Modes Counting, Percentage
Repeatability 0.1 g 0.1 g 0.5 g/0.1 g
Linearity ±0.2 g ±0.2 g ±1 g / ±0.2 g
Sensitivity Drift (10° C-30° C) ±3 ppm/° C ±5ppm/° C
Stabilization Time Approx 1.5 seconds
Operating Temperature 41° F - 104° F (-5° C - 40° C)
Pan Size 10.62 x 8.26 in (270 x 210 mm)
Dimensions 11.81 x 13.98 x 4.37 in (300 x 355 x 111 mm)
Weight 18.3 lb (8.3 kg)
External Cal Mass 10, 20 kg 20, 30 kg 20, 30 kg
Power 120/240 VAC adapter
Warranty Five-year Limited Warranty
Return Policy A&D Weighing Standard Policy - restock fee may apply
UNIT OF MEASURE
Decimal Ounce 740.755 x 0.005 oz 1093.495 x 0.005 oz 1093.50 x 0.05/ 215.170 x 0.005 oz
Troy Ounce 675.165 x 0.005 ozt 996.675 x 0.005 ozt 996.65 x 0.05/ 196.120 x 0.005 ozt
Pennyweight 13503.3 x 0.1 dwt 19933.5 x 0.1 dwt 19933 x 1/ 3922.4 x 0.1 dwt
Carat 105000.0 x 0.5 ct 155000.0 x 0.5 ct 155000 x 5/ 30500.0 x 0.5 ct
Momme 5600.00 x 0.05 mom 8266.65 x 0.05 mom 8266.5 x 0.5/ 1626.65 x 0.05 mom
Grain 324080 x 2 GN 478404 x 2 GN -
Pound 46.2970 x 0.0005 lb 68.3435 x 0.0005 lb 68.345 x 0.005/ 13.4480 x 0.0005 lb
Pound/Ounce 46 lb x 0.01 oz 68 lb x 0.01 oz 68 lb x 0.1 oz/ 13 lb x 0.01 oz

Resources / Downloads

Title Download Email
GX-K Series Catalog Page Download Email

Title Version Revision Download Email Category Archived
A&D Weighing GX-K/GF-K Series Instruction Manual Download Email Precision Balances No

Title Collateral Wizard Request Download Email Category
A&D Weighing GF-K/GX-K Series Download Email Balances|Precision Balances

Parts

Part # Description List Price Cart / Quote

Options

Part # Description List Price Cart / Quote
97782 Balance,Accessory, A&D GX-04K, Comparator Output & RS-232C/20ma Interface

List Price: $440.00
97783 Balance,Accessory, A&D GX-06K, Analog Output/20mA Interface

List Price: $1,000.00
97784 Balance,Accessory, A&D GX-07K, Waterproof Cable For Standard RS-232C

List Price: $370.00
102899 Option,Balance, A&D GXK-12 Animal Weighing Pan for all GX-K and GF-K models

List Price: $995.00
102898 Option,Balance, A&D GXK-31 Draft Shield For all GX-K and GF-K models

List Price: $140.00
97605 Balance OPT,Anti Theft Device A&D AD-100-2

List Price: $90.00
97785 Balance,Accessory, A&D AX:073007197A, Protective In-Use Cover

List Price: $26.50
151247 Data Logger,AD-1688 3 Cables (1 m) 9-pin, 25-pin, 7-pin connectors, to USB, Time & Date, 5000 memory storage

List Price: $370.00
196128 Printer,A&D AD-8127 Dot Matrix, Statistical, Includes Power Supply and Serial Cable. GLP/GMP/GCP/ISO Compliant.

List Price: $1,030.00
97649 Balance OPT,AC Adapter TB:248, TB:237 or TB:648, 12 VDC 120 VAC 420mA Negative A&D BM, FX-i, FZ-i, GF, GX, GF-K, GX-K, GH, GR, HR, HR-A, HR-AZ, HR-i, MC, AD-4212 Models

List Price: $53.00

Related Products

GP

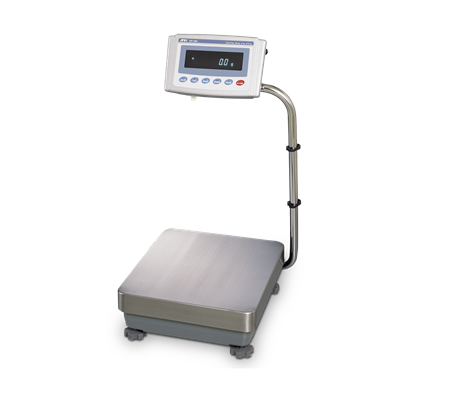

GP Series, A&D Weighing High Capacity Balance
