Product PDF

Apollo GF Series, A&D Weighing Analytical Balance

  • Electronically controlled load (ECL) self-diagnostic before internal repeatability test without an external weight in less than 1.5 minutes
  • External calibration
  • Impact shock detection
  • Flow rate display
  • RS-232 interface for connecting to printer or PC
  • Password protection and anti-theft security slot
  • GLP/GMP/ISO compliant to either AD-8127 printer or computer
  • Transmits date, time, ID number, serial number, model, manufacturer and calibration data
  • Rechargeable battery option for portability
  • Super Hybrid Sensor Technology (SHS)
  • Reverse backlit LCD display
  • Underweigh hook
  • Optional glass breeze break
Request More Information

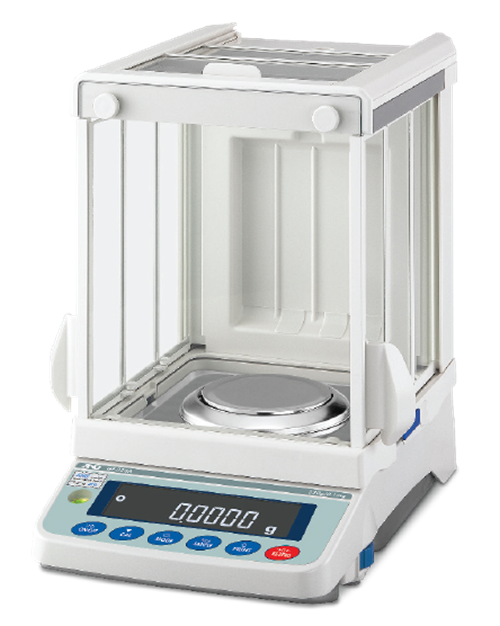

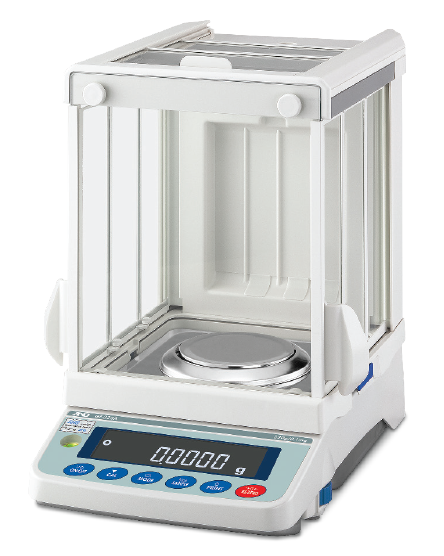

Apollo GF Series Image

The A&D Weighing Apollo GX Series toploader balance has electronically controlled load (ECL) self-diagnostic before internal repeatability test, multiple weighing modes, and under hook weighing.

Weighing Units:
Gram, ounce, pound, pound/ounce, troy ounce, grain (see technical manual for complete listing)

Operating Modes:
Weigh, count and percent

Power:
110/220 V VAC adapter

Stabilization Time:
Approx. 1 second (typical in FAST mode)

Calibration Weight:
GF-124A: 100 g
GF-224A: 200 g
GF-324A: 300 g

Temperature:
Operating:
41 °F to 104 °F (5 °C to 40 °C)

Est. Weight:
11 lb (5.2 kg)

Warranty:
Five-year limited

Return Policy:
A&D Weighing standard policy -
restock fee may apply

Model  Capacity Readability Repeatability Linearity Weighing Chamber Pan Size Dimensions Part Number

GF-124A

120 g

0.0001 g

0.0001 g

±0.0002 g

8.78 in
(223 mm)

Ø 3.6 in
(90 mm)

10.2 × 14.1 × 13.1 in
(259 × 358 × 332 mm)
Includes Large Glass Breeze Break

200327

GF-224A

220 g

0.0001 g

0.0001 g

±0.0002 g

8.78 in
(223 mm)

Ø 3.6 in
(90 mm)

10.2 × 14.1 × 13.1 in
(259 × 358 × 332 mm)
Includes Large Glass Breeze Break

200328

GF-324A

320 g

0.0001 g

0.0002 g (300 g)
0.0001 g (200 g)

±0.0003 g

8.78 in
(223 mm)

Ø 3.6 in
(90 mm)

10.2 × 14.1 × 13.1 in
(259 × 358 × 332 mm)
Includes Large Glass Breeze Break

200329

Resources / Downloads

Title Download Email
Analytical Apollo GF Series Catalog Page Download Email

Parts

Part # Description List Price Cart / Quote
200327 Balance,A&D GF-124A Apollo Series. 120g x 0.0001g, Analytical. External Cal. 120VAC

List Price: $2,775.00
200328 Balance,A&D GF-224A Apollo Series. 220g x 0.0001g, Analytical. External Cal. 120VAC

List Price: $3,025.00
200329 Balance,A&D GF-324A Apollo Series. 320g x 0.0001g, Analytical. External Cal. 120VAC

List Price: $3,575.00
192671 ANALOG OUTPUT, OPT. FOR A&D APOLLO SERIES (AX-K05693 Cable Included)

List Price: $260.00

Options

Part # Description List Price Cart / Quote
192662 RS-232C INTERFACE, OPT. FOR A&D APOLLO SERIES (D-SUB 9P MALE)

List Price: $275.00
192663 COMPARATOR OUTPUT, OPT. FOR A&D APOLLO SERIES (REQUIRES CABLE PART NUMBER 192667)

List Price: $260.00
192667 MINI-DIN CABLE 8-PIN MALE FOR GXA-04

Consult
192671 ANALOG OUTPUT, OPT. FOR A&D APOLLO SERIES (AX-K05693 Cable Included)

List Price: $260.00
192674 Battery OPT,Rechargeable Ni-MH Nickel Metal Hydride A&D Apollo Series MUST BE FACTORY INSTALLED

List Price: $545.00
192675 Breeze Break,Large Glass Option for A&D Apollo Series GXA-10

List Price: $385.00
192676 ANIMAL WEIGHING PAN, OPT FOR A&D APOLLO SERIES 320 G CAPACITY, AND HIGHER

List Price: $175.00
192677 DENSITY DETERMINATION KIT FOR A&D APOLLO SERIES WITH 1 mg RESOLUTION ONLY.

List Price: $595.00
192678 LARGE GLASS BREEZE BREAK OPTION FOR A&D APOLLO SERIES WITH BUILT-IN FANLESS IONIZER

List Price: $1,670.00
192679 EXTERNAL INPUT INTERFACE FOR A&D APOLLO SERIES. FOR SW:137-PRINT FOOT SWITCH

List Price: $250.00
192680 EXTERNAL INPUT INTERFACE FOR A&D APOLLO SERIES. FOR SW:137-REZERO FOOT SWITCH

List Price: $245.00
192681 EXTERNAL INPUT INTERFACE FOR A&D APOLLO SERIES. FOR AX-T-314A-S PLUG

List Price: $245.00
192682 USB HOST INTERFACE, OPT. FOR A&D APOLLO SERIES. USB TYPE A

List Price: $130.00
192683 EXTERNAL FANLESS IONIZER FOR A&D APOLLO SERIES.

List Price: $960.00
192684 EXTERNAL IR SWITCH, OPT. FOR A&D APOLLO SERIES (MINI-DIN 4-PIN MALE)

List Price: $205.00
192673 MINI-DIN CABLE, OPT. FOR GXA-06 - this cable in included in the 192671 option and is only available from A&D with the GXA-06 kit (192671)

List Price: $45.00
