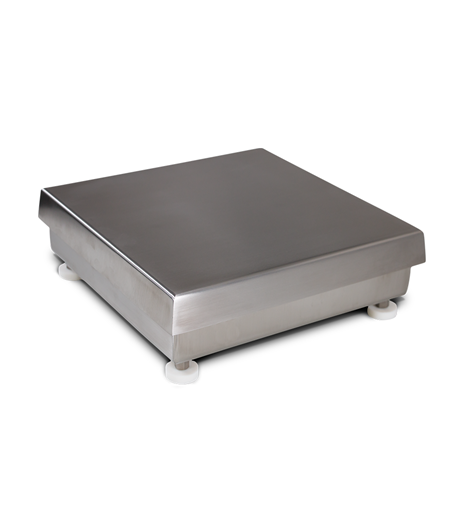

BenchMark® SL/HE Spring Loaded/Hostile Environment Bench Scale
- NTEP Certified, IP69K stainless steel, hermetically sealed load cell
- 304 stainless steel construction
- LifeGuard™ base design isolates load cell from overloads and shock loads for added durability
- Specially designed adjustable support feet provide exceptional traction and won’t scratch surfaces
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
Light-capacity Bench Scale
This light-capacity bench scale design fits well into any demanding industrial application, wet or dry. Equipped with IP69K stainless steel hermetically sealed load cells, the SLHE is an NTEP Certified scale that's up to the task of regular washdowns, temperature change and punishing shock loads.
BenchMark SL/HE Specifications
|
Load Cell, NTEP Certified: Output Impedance: Maximum Overload: Overload Protection: |
Scale Frame: Scale Cover: Cable Length: |
Temperature: Warranty: Approvals: |
BenchMark SL Dimensions
| 10 in x 10 in | |||
|---|---|---|---|
| H | 3.15 in | W | 10.00 in |
| L | 10.00 in | W1 | 10.25 in |
| L1 | 10.25 in | ||
| 12 in x 12 in | |||
| H | 3.25 in | W | 12.00 in |
| L | 12.00 in | W1 | 12.25 in |
| L1 | 12.25 in | ||
| Note: 1 in = 25.4 mm | |||
Resources/Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| Prince Edward Island | View |  Email |
Checkweighers|Indicators / Controllers|Weight Indicators | Application Story |
| Surviving the Tignish Wind | View | Email |
Indicators / Controllers|Weight Indicators|Checkweighers | Application Story |
Parts
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 86942 | Scale,BENCHMARK SL/HE BM1010S-5 10x10x3.15 5lb 10ft SST |
List Price: $1,288.00 |
|
| 86943 | Scale,BENCHMARK SL/HE BM1010S-10 10x10x3.15 10lb 10ft SST |
List Price: $1,288.00 |
|
|
86944
|
Scale,BENCHMARK SL/HE BM1010S-20 10x10x3.15 20lb 10ft SST
|
List Price: $1,288.00 |
|
| 86945 | Scale,BENCHMARK SL/HE BM1010S-30 10x10x3.15 30lb 10ft SST |
List Price: $1,288.00 |
|
| 86946 | Scale,BENCHMARK SL/HE BM1212S-30 12x12x3-1/4 30lb 10ft SST |
List Price: $1,378.00 |
|
| 86947 | Scale,BENCHMARK SL/HE BM1212S-50 12x12x3-1/4 50lb 10ft SST |
List Price: $1,378.00 |
|
| 86948 | Scale,BENCHMARK SL/HE BM1212S-100 12x12x3-1/4 100lb 10ft SST |
List Price: $1,378.00 |
Options
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|

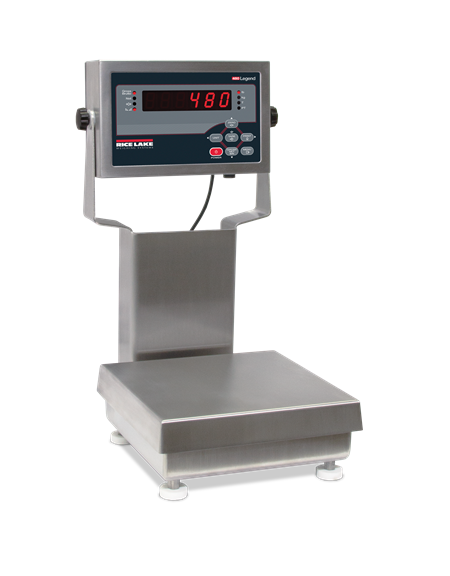

| 112044 | Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE/HE-X), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI, 480/482, 680/682, 380/380X |
List Price: $145.00 |
|
| 112045 | Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE/HE-X), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI,480/482, 680/682, 380/380X |
List Price: $195.00 |
|
| 64576 | Bracket,Attachment Kit OPT, Benchmark for IQ+210, 480/482, 680/682, 380/380X |
List Price: $100.00 |
|
| 22125 | LIT,Manual Benchmark Scale |
Consult |
|
| 106475 | Spacer,Column Support 1/2 Dia x 1 Long SST |
List Price: $4.00 |
Replacement Parts
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
Related Products

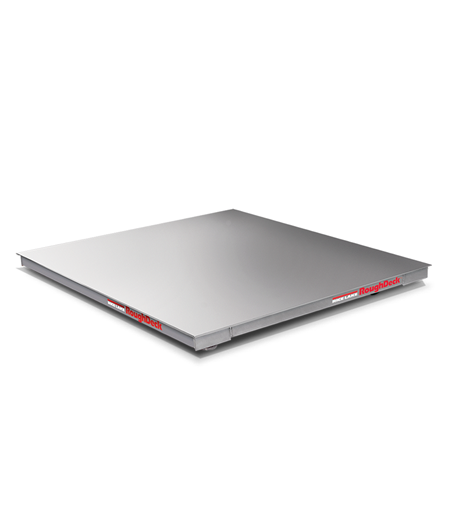

RoughDeck® HE Hostile Environment Floor Scale
The RoughDeck HE is a hostile environment, stainless steel floor scale designed specifically for corrosion resistance and long life in demanding washdown applications.

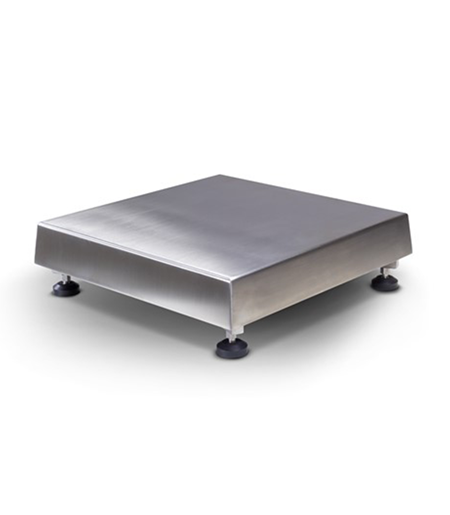

BenchMark® HE-X Hostile Environment Extreme Bench Scale
