Counterpart® Configurable Counting Indicator

As of: Thursday, November 21, 2024
Save or Print to PDF

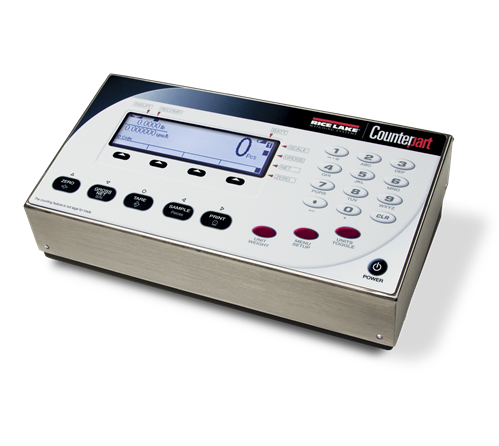

Hdimage(1)

Standard Features

  • AC operated (battery operation is optional)
  • LCD graphic transmissive display for indoor viewing
  • Single- or dual-channel models with serial scale input
  • Mix and match platforms with console
  • Four setpoint outputs for counting
  • Two RS-232 ports for connecting peripherals
  • Ethernet TCP/IP
  • Scanner input (RS-232)
  • PC software utility (Revolution®) for setup
  • 150 item memory

Options

  • Wireless LAN
  • Rechargeable battery
  • USB connection for keyboard
  • WeighVault™ software for ID entry, data registers and reports

More than a weight indicator and more than a counting scale, Counterpart from Rice Lake stands alone as a configurable counting indicator, able to convert almost any scale base into an intelligent piece-counting device—for parts of every shape and size.

Unlike traditional counting scales, Counterpart uses Rice Lake’s simple configuration method to adjust to the parameters and resolution of any attached scale base, whether a floor scale, bench scale, or laboratory balance. Counterpart also connects with most bar code scanners, label printers, and inventory management software, making it quite possibly the most versatile piece of equipment in any inventory setting.

Rice Lake’s new configurable counting indicator does away with equipment learning curve. Users simply follow the keys left to right— zero, tare, and sample. View weight, piece weight, description and quantity all at the same time. And a ten-piece default sample is all that Counterpart ever requires.

While Counterpart was designed for operator simplicity, it also provides the high-end features necessary for better inventory control and record keeping. Onboard Ethernet allows for connection to a PC where WeighVault® software for Counterpart can take your data storage and reporting capabilities to new heights.

Counterpart can be purchased separately for operating one or more scale bases, or as part of a complete scale base and indicator package.

Counterpart Configurable Counting Indicator Specifications

Power Source:
Input: 100 to 240 VAC, 47/63 Hz, 5 watts
U.S. power cord
Output: 9 to 12 V, 1.5 A max

Excitation Voltage:
5 VDC

Analog Signal Input Range:
0 to 4.5 mV/V

Analog Specifications:
Grad minimum: .3 μV/grad
Input sensitivity: 1.5 μV/grad recommended
Zero adjustment range: 0 to 100% or per region settings
A/D conversion rate: 7.5, 15, 30 samples per second
Load cells per scale: 8 × 350 ohm; 16 × 700 ohm
Scale channels: 1 or 2
Linearity: ±0.017 full scale

Circuit Protection:
RFI, EMI, ESD protection

Digital I/O:
Four

Display:
Viewing area: 240 × 64 pixels, transmissive VGA liquid crystal display (LCD) with adjustable contrast

Keys/Buttons:
24 buttons, full keypad (alpha numeric)

Resolution:
Internal: 1,000,000 counts
Display: up to 100,000

Communications Ports:
Two RS-232 ports support up to 115,200 bps
20 mA
Ethernet port
Setpoint output

Annunciators:
PCS, motion, low battery, insuff, recomp, scale number, gross, net, zero

Units of Measure:
lb, kg, g, oz

Prints:
Standard EPL label format; format is changeable to work with virtually any printer

Battery (optional):
Type: Lithium-ion
Charge time: 6 to 8 hours
Charge cycles: 400 to 1,200
Estimated runtime: 24 to 32 hours with one 350 ohm load cell base

Temperature:
Operating: 32 °F to 104 °F (0 °C to 40 °C)

Humidity:
85%

Dimensions:
(L × W × H)
Indicator only
12.25 × 6.25 × 4.00 in
(311 × 159 × 102 mm)

Warranty:
Two-year limited

Approvals:
NTEP Certified CC 12-110
CE Marked
UL Listed
Measurement Canada AM-5918C

Counterpart Configurable Counting Indicator Dimensions

Dimensions
A 12.30 in (312 mm) C 3.94 in (100 mm)
B 6.17 in (157 mm)

Parts

Part # Description
Counterpart Indicator Only
118788 Indicator,Counterpart Single A/D, RS-232, Ethernet, Multi-ranging Power Supply with US Power Cord and Packaging
120770 Indicator,Counterpart Dual A/D, RS-232, Ethernet, Multi-ranging Power Supply with US Power Cord and Packaging
132429 Indicator,Counterpart Single A/D, RS-232, Ethernet, Multi-ranging Power Supply with EU Power Cord and Packaging
132431 Indicator,Counterpart Dual A/D, RS-232, Ethernet, Multi-ranging Power Supply with EU Power Cord and Packaging
Single Channel with DIGI S-YC base system and bracket
155089 Scale,CP-1 Counterpart 1 x 0.0001 lb, 7 x 5 in Platter, Multi-Range Adapter, US plug
155090 Scale,CP-2 Counterpart 2 x 0.0002 lb, 9 x 6 in Platter, Multi-Range Adapter, US cord
155092 Scale,CP-5 Counterpart 5 x 0.0005 lb, 13 x 11 in Platter, Multi-Range Adapter, US plug
155094 Scale,CP-10 Counterpart 10 x 0.001 lb, 13 x 11 in Platter, Multi-Range Adapter, US plug
155097 Scale,CP-25 Counterpart 25 x 0.002 lb, 13 x 11in Platter, Multi-Range Adapter, US plug
155101 Scale,CP-50 Counterpart 50 x 0.005 lb, 13 x 11 in Platter, Multi-Range Adapter, US plug
Dual Channel with DIGI S-YC base system and bracket
155115 Scale,CP-1 Counterpart Dual Channel, 1 x 0.0001 lb, 7 x 5 Platter, Multi-Range Adapter US Cord
155116 Scale,CP-2 Counterpart Dual Channel, 2 x 0.0002 lb, 9 x 6 Platter, Multi-Range Adapter US Cord
155117 Scale,CP-5 Counterpart Dual Channel, 5 x 0.0005 lb, 13 x 11 Platter, Multi-Range Adapter US Cord
155118 Scale,CP-10 Counterpart Dual Channel, 10 x 0.001 lb, 13 x 11 Platter, Multi-Range Adapter US Cord
155119 Scale,CP-25 Counterpart Dual Channel, 25 x 0.002 lb, 13 x 11 Platter, Multi-Range Adapter US Cord
155120 Scale,CP-50 Counterpart Dual Channel, 50 x 0.005 lb, 13 x 11 Platter, Multi-Range Adapter US Cord
Dual Channel with BenchMark base system and bracket
125113 Scale,CP-50BM Counterpart Dual Channel, 50 lb x 0.01 lb, 12 in x 18 in, Multi-Range Adaptor US Power Cord
125116 Scale,CP-100BM Counterpart, Dual Channel, 100 lb x 0.02 lb, 12 in x 18 in, Multi-Range Adaptor, US Power Cord

Options

Part # Description
124692 Battery OPT,CP Li-Ion
53828 Cable,Multi Scale "Y" IQ9500 Counting Scale
32375 CONN,Plug 14-Pin Male DIGI connector
125062 Coverplate,Ethernet OPT Counterpart External Plate, Kit, Ethernet plug for welded cable
130537 OPT,USB Host Card Counterpart USB Keyboard, RoHS Compliant
179211 Keyboard,Microsoft USB Microsoft 600 USB Wired
125079 Coverplate,DB9 Option 520, Counterpart Indicators.
120767 Coverplate, 14 Pin Connector. Counterpart Counting Scale Indicator.
125495 OPT,Wi-Fi Kit Counterpart Includes Antennae, Ethernet Board and access plate
125546 Software, WeighVault for Counterpart (English)
118677 LIT,User Manual Counterpart Counting Scale Indicator (English)
121459 Bracket OPT,Counterpart CP Front-mount Bracket and Mounting Screws Kit For BenchMark Scales. S-XL Bases.
154700 Bracket Kit,OPT S-YC Counterpart Bracket And Mounting Screws
121474 Cable Assy,RS-232 5-Wire DB-9F to 6-position connector
121501 Stand, Counterpart Indicator. Angled, Free Standing for Table Top.
128063 Power Supply Assy,12V 15W 1.25A, Universal Input (90-264 VAC) Desktop Switching with IEC-320_C14 connector and EMI/RFI Ferrite Clamp
15438 Power Cord,Detachable 18 AWG, 7.5' Long, C13, 5-15P Plugs, SVT Cord Black
Printers/Cables
167515 Printer,DT2x 2in Direct Thermal, 203 dpi, Real Time Clock, Multi-range AC adapter
65617 Label,Roll DTL 2.25x4.50 5" Dia 1 in Core 600 Per Roll Perfed Wound Out High Grade Top Coated - 10 Degree + Application Temperature
41276 Cable Assy,DB9M To Blunt Male DB9 to blunt end cable 5 Feet PINOUT: Black Pin-5, Red Pin-3, Green Pin-2
78860 Cable,Ethernet Cross RJ45 to RJ45, 7FT
Scanner
225024 Scanner Kit,QD2590, cp Counterpart Scanner & 9Pin RS232 Cable w/quick Connect
