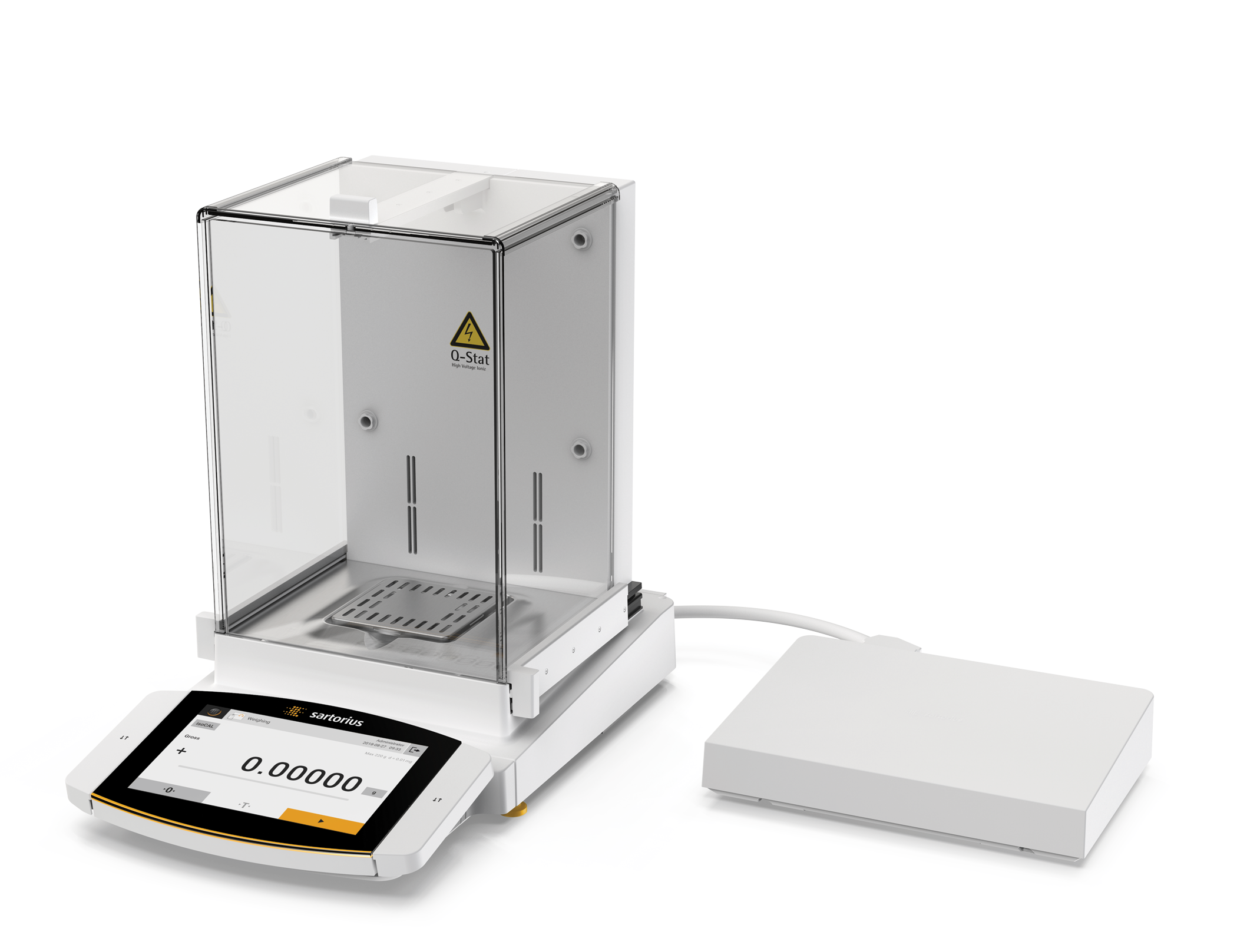

Cubis II Series MCA, Sartorius Semi-Micro Balance

  • Large, high-end, 7 in color touchscreen TFT display in 16:9 format
  • Modular design
  • User configurable and custom designed to meet changing applications
  • Meets advanced Pharma compliance including user/password management for security, audit trail  function logs and integrated alibi memory
  • RS-232 and USB communication
  • Easy cleaning by removing glass doors
  • Manual glass draft shield
  • Underweigh hook
Request More Information
Cubis II Semi-Micro/Analytical

Weighing Units:
Milligram, gram, kilogram, ounce, pound, carat, pennyweight, troy ounce, grain, newton pound/ounce, micrograms (see technical manual for complete listing)

Operating Modes:
Mass unit conversion, SQ nin function, ISO-cal function, density determination (buoyancy
method only with MSE), calculation, averaging, formulation, percent weighing, totalizing, counting, customized identification, statistics,
time control function, second tare memory, over/under checkweighing

Power:
120 V AC adapter auto ranging

Stabilization Time:
2 seconds

Calibration Weight:
225S, 225P: 200 g
125P: 100 g

Temperature:
Operating:
5 °C to 40 °C (41 °F to 104 °F)

Est. Weight:
30 lb

Warranty:
Ten-year limited

Return Policy:
Sartorius standard policy - restock fee may apply

Model  Capacity Readability Repeatability Linearity Pan Size Weigh Chamber Dimensions Part #

MCA225S

220 g

0.01 mg

0.025 mg

0.1 mg

3.3 × 3.3 in
(85 × 85 mm)

8 × 8 × 10.2 in
(205 × 205 × 261 mm)

16 × 9.8 × 14.6 in
(410 × 249 × 370 mm)

195698

MCA225P

60 g
120 g
220 g

0.01 mg
0.02 mg
0.05 mg

0.015 mg
0.04 mg

0.15 mg

3.3 × 3.3 in
(85 × 85 mm)

8 × 8 × 10.2 in
(205 × 205 × 261 mm)

16 × 9.8 × 14.6 in
(410 × 249 × 370 mm)

195802

MCA125P

60 g
120 g

0.01 mg
0.1 mg

0.015 mg
0.06 mg

0.15 mg

3.3 × 3.3 in
(85 × 85 mm)

8 × 8 × 10.2 in
(205 × 205 × 261 mm)

16 × 9.8 × 14.6 in
(410 × 249 × 370 mm)

195803



Resources / Downloads

Title Download Email
Semi-Micro Cubis II MCA Series Catalog Page Download Email

Parts

Part # Description List Price Cart / Quote
195698 Balance,MCA225S-2S00-U Sartorius, Cubis II, 220g x 0.01mg, TFT Color Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $16,300.00
195802 Balance MCA225P-2S00-U Sartorius, Cubis II, 60g/120g/220g x 0.01/0.02/0.05mg, Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $14,190.00
195803 Balance MCA125P-2S00-U Sartorius, Cubis II, 60g/120g x 0.01/0.1mg, Color TFT Touch Display, Automatic Leveling, 100-240V Pwr Supply

List Price: $10,240.00

Options

Part # Description List Price Cart / Quote
156906 Power Supply,100-240V Sartorius 6971987

List Price: $260.00
156908 Cord,Power 220V EU Sartorius 6900900

List Price: $50.00
Consult IP: Additional RS-232, 9-Pin connection with PS2 port (factory installed)

Consult
Consult IR: Additional RS-232, 25-pin connection (factory installed)

Consult
Consult TR: Certificate of compliance and full factory test report (factory installed)

Consult
Consult DI: Automatic motorized draft shield for analytical balances, with integrated ionizer (factory installed)

Consult
Consult DA: Automatic motorized draft shield for analytical balances (factory installed)

Consult
