Product PDF

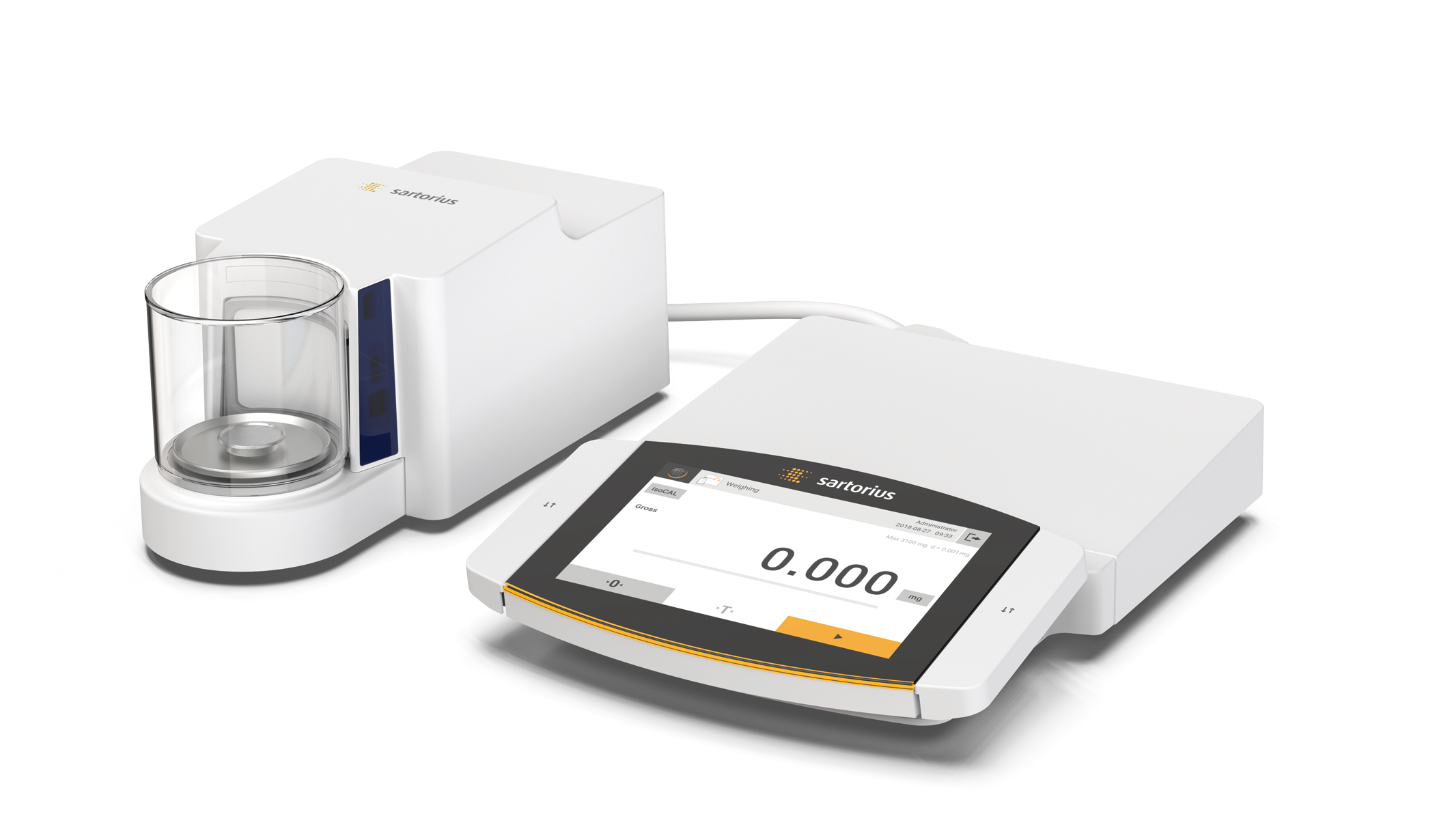

Cubis II Series MCA, Sartorius Ultra-Micro/Micro Balance

  • Large, high-end, 7 in color touchscreen TFT display in 16:9 format
  • Modular design
  • User configurable and custom designed to meet changing applications
  • Meets advanced Pharma compliance including user/password management for security, audit trail function logs and integrated alibi memory
  • RS-232 interface for connecting to printer or PC
  • M/DH models: Automatic glass draft shield
  • F models: Manual stainless steel draft shield
Request More Information
1 US Cubisii Semimicro

Weighing Units:
Milligram, gram, kilogram, ounce, pound, carat, pennyweight, troy ounce, grain, newton pound/ounce, micrograms (see technical manual for complete listing)

Operating Modes:
Mass unit conversion, SQ min function, ISO-cal function, Density determination (buoyancy
method only with MSE), calculation, averaging, formulation, percent weighing, totalizing, counting, customized identification, statistics,
time control function, second tare memory, over/under checkweighing

Power:
120 V AC adapter auto ranging

Stabilization Time:
2.7S-2S00-M/F: 7 seconds
6.6S-2S00-M/F, 3.6P-2S00-M: 5 seconds
66S-000-DH, 66P-000-DH, 36S-000-DH,
36P-000-DH: 3.5 seconds

Calibration Weight:
2.7S-2S00-M/F: 2 g
6.6S-2S00-M/F: 5 g
3.6P-2S00-M: 3 g
66S-000-DH, 66P-000-DH: 50 g (E2)
36S-000-DH, 36P-000-DH: 20 g (E2)

Temperature:
Operating:
5 °C to 40 °C (41 °F to 104 °F)

Est. Weight:
30 lb

Warranty:
Ten-year limited

Return Policy:
Sartorius standard policy - restock fee may apply

Model  Capacity Readability Repeatability Linearity Pan Size Dimensions Part #
Cubis II

MCA2.7S- 2S00-M

2.1 g

0.0001 mg

0.25 μg

0.9 μg

Ø 0.8 in
(20 mm)

7.55 × 12.72 × 3.46 in
(192 × 323 × 88 mm)
Chamber Height: 2.75 in (70 mm)

195682

MCA2.7S- 2S00-F

2.1 g

0.0001 mg

0.25 μg

0.9 μg

Ø 1.9 in
(50 mm)

7.55 × 12.72 × 3.46 in
(192 × 323 × 88 mm)
Chamber Height: 0.6 in (15 mm) H

195685

MCA6.6S- 2S00-M

6.1 g

0.001 mg

0.001 mg

4 μg

Ø 1.2 in
(30 mm)

7.55 × 12.72 × 3.46 in
(192 × 323 × 88 mm)
Chamber Height: 2.75 in (70 mm)

195687

MCA6.6S- 2S00-F

6.1 g

0.001 mg

0.001 mg

4 μg

Ø 1.9 in
(50 mm)

7.55 × 12.72 × 3.46 in
(192 × 323 × 88 mm)
Chamber Height: 0.6 in (15 mm)

195690
MCA3.6P- 2S00-M

1.1 g
2.1 g
3.1 g

0.001 mg
0.002 mg
0.005 mg

0.003 mg
0.004 mg
0.005 mg

4 μg

Ø 1.2 in
(30 mm)

7.55 × 12.72 × 3.46 in
(192 × 323 × 88 mm)
Chamber Height: 2.75 in (70 mm)

195692
Cubis I
MSA66S-000-DH

61 g

0.001 mg

0.0015 mg
0.004 mg

0.020 mg

1.18 in (30 mm)
1.97 in (50 mm)

7.55 × 12.72 × 3.46 in
(192 × 323 × 88 mm)
Chamber Height: 7.13 in (181 mm)

186390
MSA66P-000-DH

12 g
61 g

0.001 mg
0.01 mg

0.002 mg
0.010 mg

0.020 mg

1.18 in (30 mm)
1.97 in (50 mm)

7.55 × 12.72 × 3.46 in
(192 × 323 × 88 mm)
Chamber Height: 7.13 in (181 mm)

186391
MSA36S-000-DH

31 g

0.001 mg

0.0015 mg
0.002 mg

0.015 mg

1.18 in
(30 mm)

7.55 × 12.72 × 3.46 in
(192 × 323 × 88 mm)
Chamber Height: 7.13 in (181 mm)

186392
MSA36P-000-DH

6 g
31 g

0.001 mg
0.01 mg

0.0015 mg
0.008 mg

0.015 mg

1.18 in
(30 mm)

7.55 × 12.72 × 3.46 in
(192 × 323 × 88 mm)
Chamber Height: 7.13 in (181 mm)

186394



Resources / Downloads

Title Download Email
Ultra-Micro / Micro Cubis II Series MCA Catalog Page Download Email

Parts

Cubis II

Part # Description List Price Cart / Quote
195682 Balance,MCA2.7S-2S00-M Sartorius, Cubis II, 2.1g x 0.0001mg, TFT Color Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $47,565.00
195685 Balance,MCA2.7S-2S00-F Sartorius, Cubis II, 2.1g x 0.0001mg, TFT Color Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $48,840.00
195687 Balance,MCA6.6S-2S00-M Sartorius, Cubis II, 6.1g x 0.001mg, TFT Color Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $37,400.00
195690 Balance,MCA6.6S-2S00-F Sartorius, Cubis II, 6.1g x 0.001mg, TFT Color Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $38,675.00
195692 Balance,MCA3.6P-2S00-M Sartorius, Cubis II, 1.1g/2.1/3.1 x 0.001/0.002/0.005mg, TFT Color Touch Display, Automatic Leveling, 100-240V Pwr Supply

List Price: $28,840.00

Cubis I

Options

Part # Description List Price Cart / Quote
156908 Cord,Power 220V EU Sartorius 6900900

List Price: $50.00
156906 Power Supply,100-240V Sartorius 6971987

List Price: $260.00
Consult IP: Additional RS-232, 9-Pin connection with PS2 port (factory installed)

Consult
